CC1110-CC1111 Series

Sub-1 GHz wireless MCU with up to 32 kB Flash memory

Catalog

Sub-1 GHz wireless MCU with up to 32 kB Flash memory

Part	Sensitivity	Power - Output	Serial Interfaces	Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Modulation	Current - Transmitting [Min]	Current - Transmitting [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Frequency [Min]	Frequency [Max]	Package / Case	Mounting Type	GPIO	Memory Size	Current - Receiving [Min]	Current - Receiving [Max]	Memory Size [custom]	Memory Size [custom]

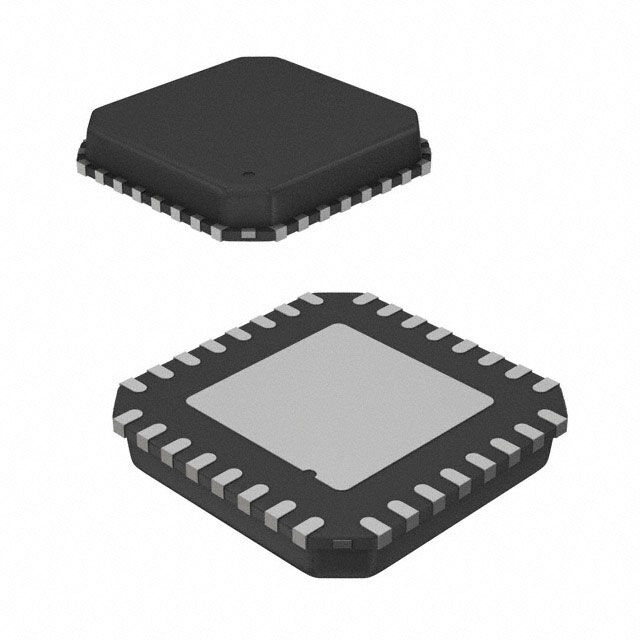

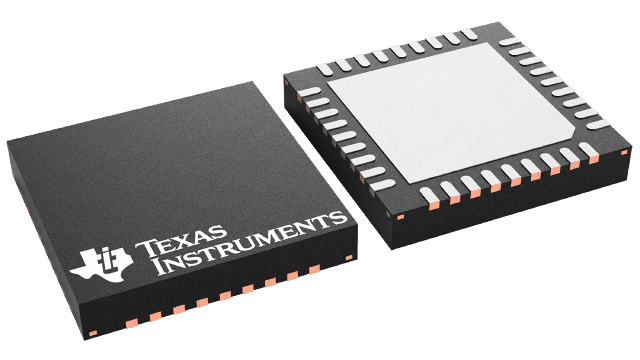

Texas Instruments CC1110F8RHHT	-112 dBm	10 dBm	I2S USART	TxRx + MCU	36-VQFN (6x6)	85 °C	-40 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	2 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	21	1 kB 8 kB	16.2 mA	21.5 mA

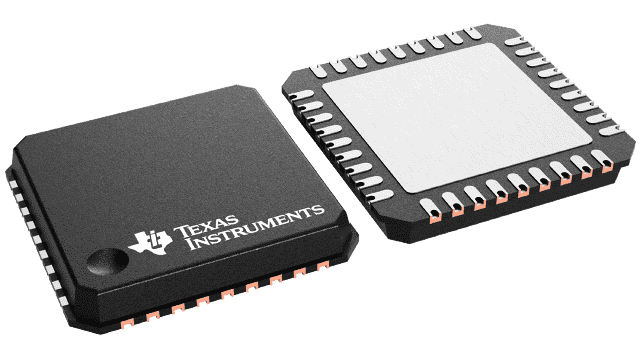

Texas Instruments CC1111F32RSP	-112 dBm	10 dBm	I2S USART USB	TxRx + MCU	36-VQFN (6x6)	85 °C	0 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	3 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	19		16.2 mA	21.5 mA
Texas Instruments CC1110F16RHHR	-112 dBm	10 dBm	I2S USART	TxRx + MCU	36-VQFN (6x6)	85 °C	-40 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	2 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	21		16.2 mA	21.5 mA	16 kB	2 kB
Texas Instruments CC1111F32RSPR	-112 dBm	10 dBm	I2S USART USB	TxRx + MCU	36-VQFN (6x6)	85 °C	0 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	3 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	19		16.2 mA	21.5 mA
Texas Instruments CC1111F8RSP	-112 dBm	10 dBm	I2S USART USB	TxRx + MCU	36-VQFN (6x6)	85 °C	0 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	3 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	19	1 kB 8 kB	16.2 mA	21.5 mA
Texas Instruments CC1110F8RHHR	-112 dBm	10 dBm	I2S USART	TxRx + MCU	36-VQFN (6x6)	85 °C	-40 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	2 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	21	1 kB 8 kB	16.2 mA	21.5 mA
Texas Instruments CC1110F32RHHT	-112 dBm	10 dBm	I2S USART	TxRx + MCU	36-VQFN (6x6)	85 °C	-40 °C	500 kBaud	2FSK ASK GFSK MSK OOK	18 mA	36.2 mA	3.6 V	2 V	General ISM < 1GHz	300 MHz 391 MHz 782 MHz	348 MHz 464 MHz 928 MHz	36-VFQFN Exposed Pad	Surface Mount	21		16.2 mA	21.5 mA

Catalog

Sub-1 GHz wireless MCU with up to 32 kB Flash memory

Key Features

• RadioHigh-performance RF transceiver based on themarket-leading CC1101Excellent receiver selectivity and blockingperformanceHigh sensitivity (–110 dBm at 1.2 kBaud)Programmable data rate up to 500 kBaudProgrammable output power up to 10 dBmfor all supported frequenciesFrequency range: 300 – 348 MHz, 391 – 464 MHzand 782 – 928 MHzDigital RSSI / LQI supportLow PowerLow current consumption (RX: 16.2 mA at 1.2 kBaud, TX: 15.2mA at −6 dBm output power)0.3 µA in PM3 (the operating mode with the lowestpower consumption)0.5 µA in PM2 (operating mode with the second lowest powerconsumption, timer or external interrupt wakeup)RoHS Compliant 6 mm × 6 mm QFN-40 PackageMCU, Memory, and PeripheralsHigh performance and low power 8051 microcontrollercore.Powerful DMA functionality8/16/32 KB in-system programmable flash, and 1, 2, 4 KB RAMFull-Speed USB Controller with 1 KB FIFO (CC1111Fx)128-bit AES security coprocessor7 – 12 bit ADC with up to eight inputsI2S interfaceTwo USARTs16-bit timer with DSM modeThree 8-bit timersHardware debug support21 (CC1110Fx) or 19 (CC1111Fx) GPIO pinsSW compatible with CC2510Fx, CC2511FxGeneralWide supply voltage range (2.0V – 3.6V)RoHS compliant 6×6 mm QFN 36 packageRadioHigh-performance RF transceiver based on themarket-leading CC1101Excellent receiver selectivity and blockingperformanceHigh sensitivity (–110 dBm at 1.2 kBaud)Programmable data rate up to 500 kBaudProgrammable output power up to 10 dBmfor all supported frequenciesFrequency range: 300 – 348 MHz, 391 – 464 MHzand 782 – 928 MHzDigital RSSI / LQI supportLow PowerLow current consumption (RX: 16.2 mA at 1.2 kBaud, TX: 15.2mA at −6 dBm output power)0.3 µA in PM3 (the operating mode with the lowestpower consumption)0.5 µA in PM2 (operating mode with the second lowest powerconsumption, timer or external interrupt wakeup)RoHS Compliant 6 mm × 6 mm QFN-40 PackageMCU, Memory, and PeripheralsHigh performance and low power 8051 microcontrollercore.Powerful DMA functionality8/16/32 KB in-system programmable flash, and 1, 2, 4 KB RAMFull-Speed USB Controller with 1 KB FIFO (CC1111Fx)128-bit AES security coprocessor7 – 12 bit ADC with up to eight inputsI2S interfaceTwo USARTs16-bit timer with DSM modeThree 8-bit timersHardware debug support21 (CC1110Fx) or 19 (CC1111Fx) GPIO pinsSW compatible with CC2510Fx, CC2511FxGeneralWide supply voltage range (2.0V – 3.6V)RoHS compliant 6×6 mm QFN 36 package

Description

The CC1110Fx, CC1111Fx is a true low-power sub- 1 GHz system-on-chip (SoC) designed for low power wireless applications. The CC1110Fx, CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations. The CC1110Fx, CC1111Fx is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. The CC1111Fx adds a full-speed USB 2.0 interface to the feature set of the CC1110Fx. Interfacing to a PC using the USB interface is quick and easy, and the high data rate (12 Mbps) of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces. The CC1110Fx, CC1111Fx is a true low-power sub- 1 GHz system-on-chip (SoC) designed for low power wireless applications. The CC1110Fx, CC1111Fx combines the excellent performance of the state-of-the-art RF transceiver CC1101 with an industry-standard enhanced 8051 MCU, up to 32 kB of in-system programmable flash memory and up to 4 kB of RAM, and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations. The CC1110Fx, CC1111Fx is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. The CC1111Fx adds a full-speed USB 2.0 interface to the feature set of the CC1110Fx. Interfacing to a PC using the USB interface is quick and easy, and the high data rate (12 Mbps) of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces.
