101TL1 Series

Catalog

SWITCH TOGGLE SPDT 15A 125V

Part	Actuator Material	Panel Cutout Dimensions [diameter]	Bushing Thread	Mounting Type	Illumination	Ingress Protection	Actuator Length [x]	Voltage Rating - AC	Circuit	Termination Style	Current Rating (Amps)	Switch Function	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]
Honeywell Sensing and Productivity Solutions 101TL1-3F	Nickel Plated	12.4 mm	15/32-32	Panel Mount	Non-Illuminated	Environment Sealed	26.67 mm	125 V	SPDT	IWTS	15 A	On-On	Locking Lever	-65 ░C	71 °C
Honeywell Sensing and Productivity Solutions 101TL1-3	Nickel Plated	12.4 mm	15/32-32	Panel Mount	Non-Illuminated	Environment Sealed	17.27 mm	125 V	SPDT	IWTS	15 A	On-On	Standard Round	-65 ░C	71 °C
Honeywell Sensing and Productivity Solutions 101TL1-1	Nickel Plated	12.4 mm	15/32-32	Panel Mount	Non-Illuminated	Environment Sealed	17.27 mm	125 V	SPDT	IWTS	15 A	On-Off-On	Standard Round	-65 ░C	71 °C
Honeywell Sensing and Productivity Solutions 101TL1-5M	Nickel Plated	12.4 mm	15/32-32	Panel Mount	Non-Illuminated	Environment Sealed	26.67 mm	125 V	SPDT	IWTS	10 A	On-Off-Mom	Locking Lever	-65 ░C	71 °C

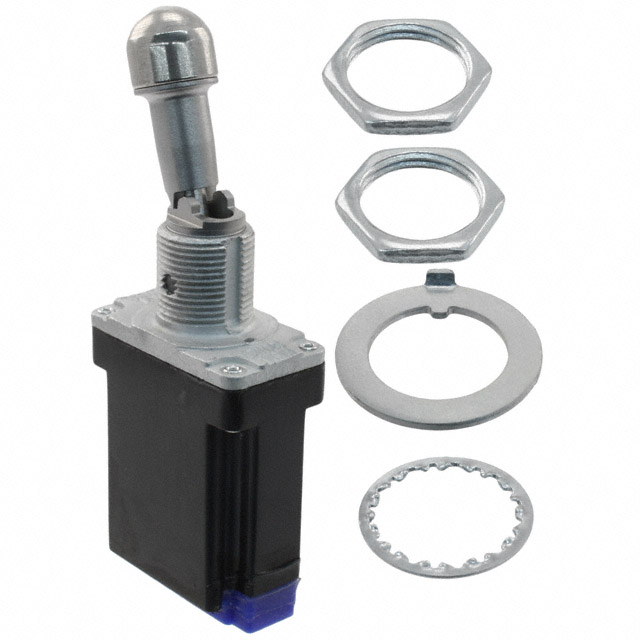

Honeywell Sensing and Productivity Solutions 101TL1-2D	Nickel Plated	12.4 mm	15/32-32	Panel Mount	Non-Illuminated	Environment Sealed	26.67 mm	125 V	SPST	IWTS	15 A	On-Off	Locking Lever	-65 ░C	71 °C
