0300-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Square Pin Size	Accepts Square Pin Size	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0300-1-15-80-47-80-10-0	-55 C	125 °C	Tin	200 Áin	5.08 Ám	Beryllium Copper	0.051 in	1.3 mm	0.042 in	1.07 mm	Solder	Standard Tail	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.078 "	1.98 mm	4.57 mm	0.18 in	0.32 in	8.13 mm	1.02 mm	0.04 "
Mill-Max Manufacturing Corp. 0300-1-15-01-47-14-10-0	-55 C	125 °C	Gold	10 Áin	0.25 Ám	Beryllium Copper	0.051 in	1.3 mm	0.042 in	1.07 mm	Solder	Standard Tail	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.078 "	1.98 mm	4.57 mm	0.18 in	0.32 in	8.13 mm	1.02 mm	0.04 "

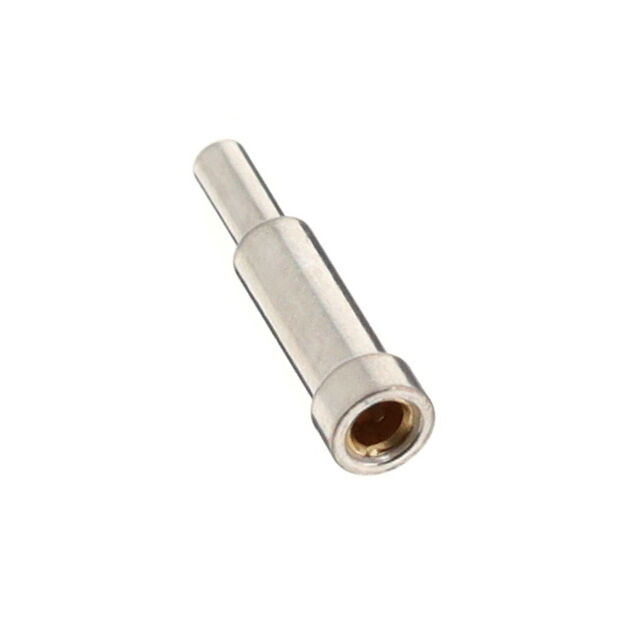

Mill-Max Manufacturing Corp. 0300-1-15-80-47-27-10-0	-55 C	125 °C	Gold	30 Áin	0.76 Ám	Beryllium Copper	0.051 in	1.3 mm	0.042 in	1.07 mm	Solder	Standard Tail	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.078 "	1.98 mm	4.57 mm	0.18 in	0.32 in	8.13 mm	1.02 mm	0.04 "
Mill-Max Manufacturing Corp. 0300-1-15-80-47-14-10-0	-55 C	125 °C	Gold	10 Áin	0.25 Ám	Beryllium Copper	0.051 in	1.3 mm	0.042 in	1.07 mm	Solder	Standard Tail	0.64 mm	0.037 in	0.94 mm	0.025 in	0.025 in	0.64 mm	0.078 "	1.98 mm	4.57 mm	0.18 in	0.32 in	8.13 mm	1.02 mm	0.04 "
