RF Adapter Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL ADAPTER, BNC, PLUG, SMA, JACK, STRAIGHT ADAPTER, 50 OHM
| Part | Body Material | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Adapter Type | Frequency - Max [Max] | Style | Convert From (Adapter End) | Conversion Type | Impedance | Adapter Series | Mounting Type | Fastening Type | Fastening Type | Convert To (Adapter End) | Convert From (Adapter End) | Adapter Series [Min] | Adapter Series [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Stainless Steel | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Plug to Jack | 8 GHz | Straight | BNC Plug Male Pin | Between Series | 50 Ohms | BNC to SMA | Free Hanging (In-Line) | Threaded | Bayonet Lock | SMA Jack Female Socket | |||
 BULGIN LIMITED | Plug to Jack | 65 GHz | Straight | Plug Male Pin | Between Series | 50 Ohms | Free Hanging (In-Line) | 3.5mm Jack Female Socket | 1.85 mm | 1.85 mm | 3.5 mm | |||||||||

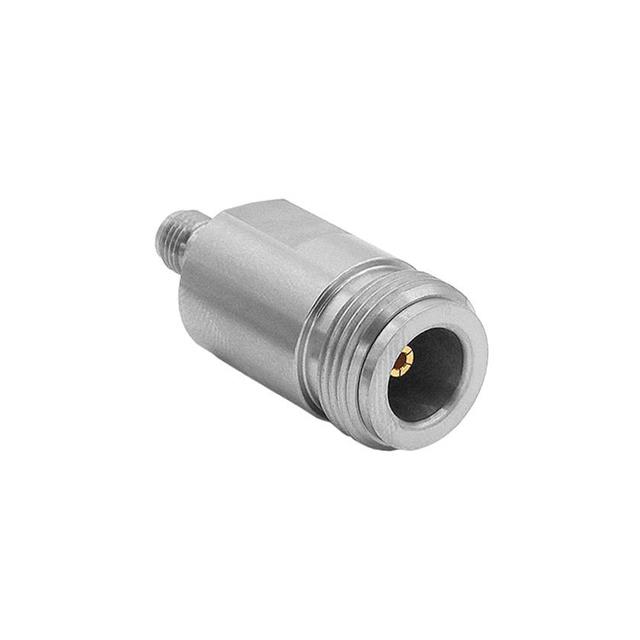

 BULGIN LIMITED | Stainless Steel | 500 | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | -40 C | 85 °C | Beryllium Copper | Plug to Jack | 33 GHz | Straight | Female Socket N Jack | Between Series | 50 Ohms | N to 3.5mm | Free Hanging (In-Line) | 3.5mm Plug Male Pin |
