BC-ATP Series

Manufacturer: Boxco

Catalog

BOX ABS CLEAR 8.27"L X 8.27"W

Part	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Height	Height [z]	Thickness	Thickness	Container Type	Features	Material	Area (L x W) [custom]	Area (L x W)	Color	Ratings	Design	Area (L x W)	Size / Dimension [y]	Height	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)

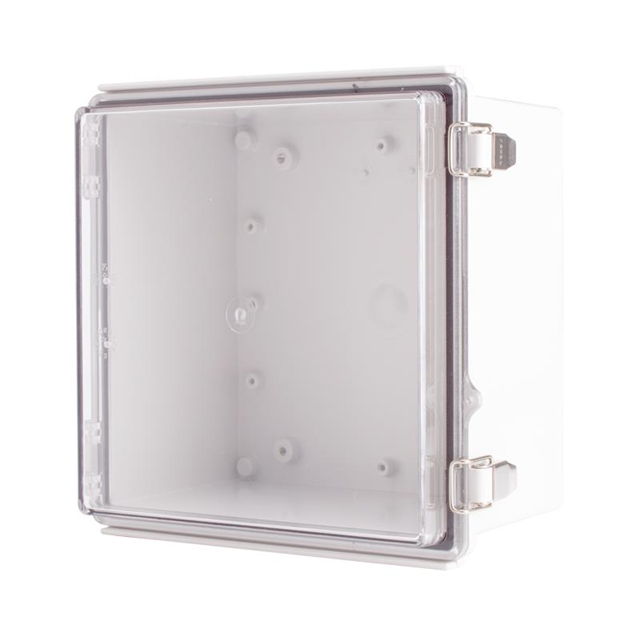

Boxco BC-ATP-212113	441 cm˛	68.4 in˛	8.268 in	8.268 in	210 mm	210 mm	UL94 HB	130 mm	5.118 in	3.2 mm	0.126 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover	68.4 in²	441 cm²	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch

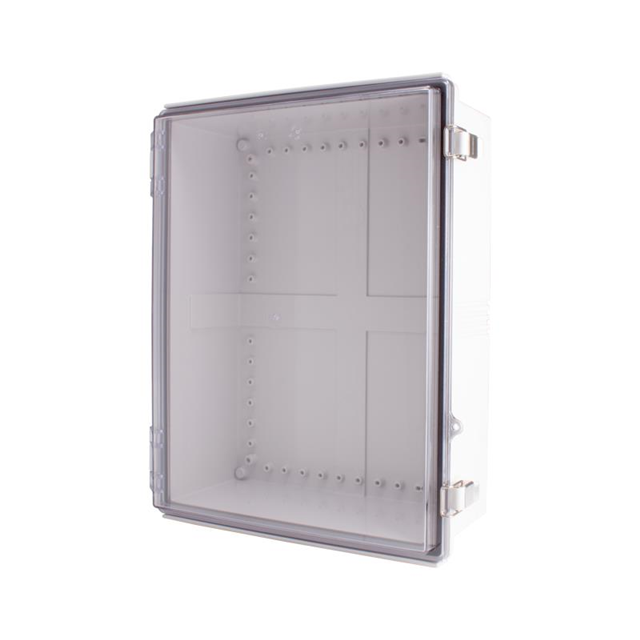

Boxco BC-ATP-354516			17.717 in	13.78 in		450 mm	UL94 HB	160 mm		3.7 mm	0.146 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		1575 cm˛	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch	244 in˛	350 mm	6.299 in

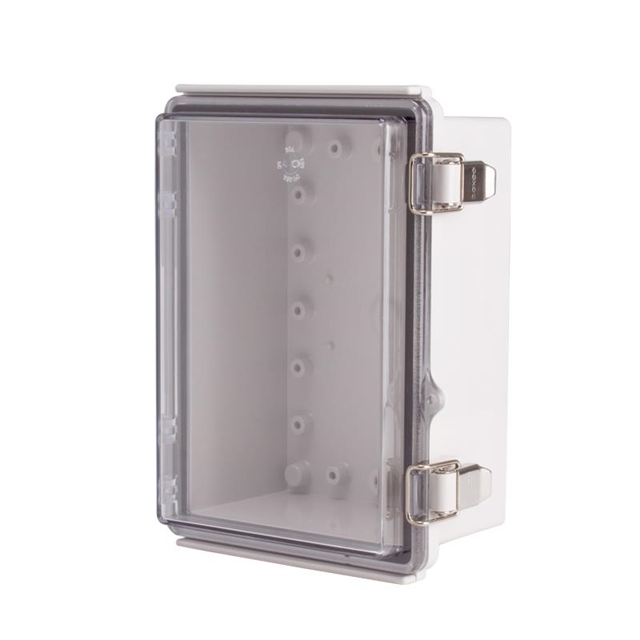

Boxco BC-ATP-131808			7.283 "	5.315 "	135 mm	185 mm	UL94 HB	85 mm		3.2 mm	0.126 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		250 cm˛	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch	38.7 in˛		3.346 in

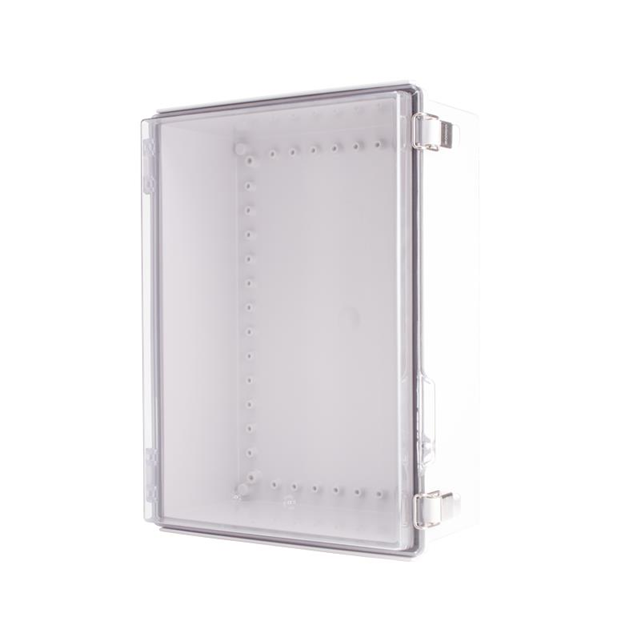

Boxco BC-ATP-304015			15.748 in	11.811 "	300 mm	400 mm	UL94 HB		5.906 in	3.2 mm	0.126 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		1200 cm˛	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch	186 in˛			150 mm

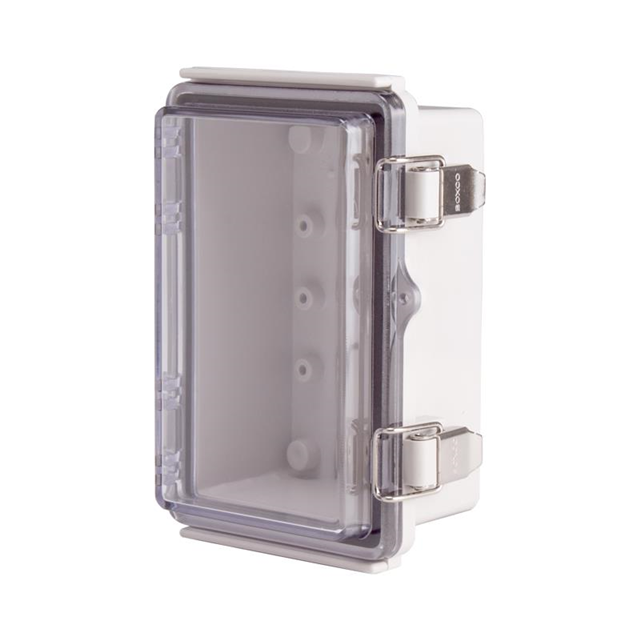

Boxco BC-ATP-101507			5.906 in	3.937 "	100 mm	150 mm	UL94 HB		2.756 in	3.2 mm	0.126 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		150 cm²	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch				70 mm	150 cm˛	23.3 in˛	23.3 in²

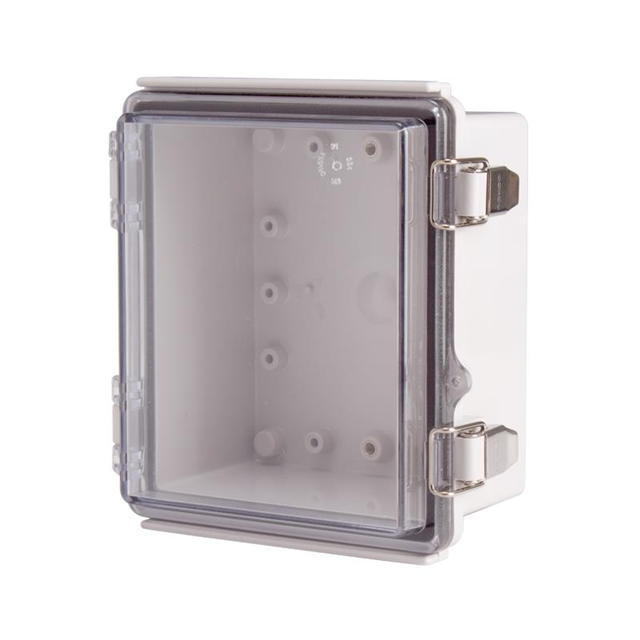

Boxco BC-ATP-131508			6.102 in	5.315 "	135 mm	155 mm	UL94 HB	85 mm		3.2 mm	0.126 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		32.4 in˛ 209 cm²	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch	32.4 in²		3.346 in					209 cm˛

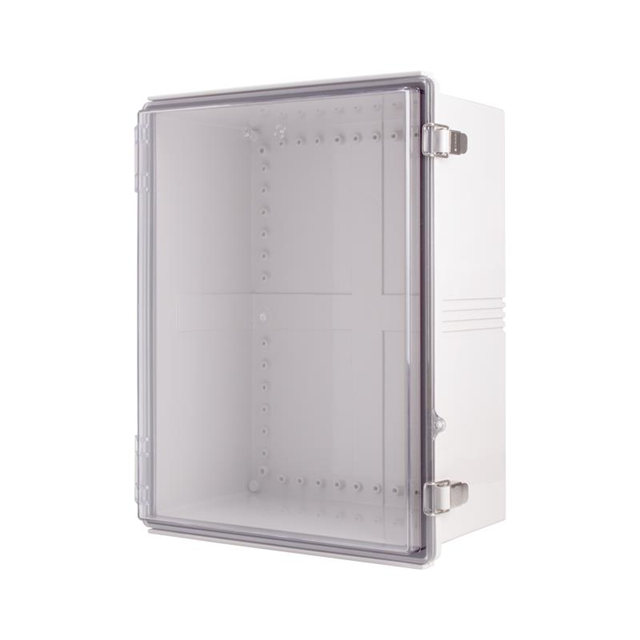

Boxco BC-ATP-354520			17.717 in	13.78 in		450 mm	UL94 HB			3.7 mm	0.146 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		1575 cm˛	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch	244 in˛	350 mm

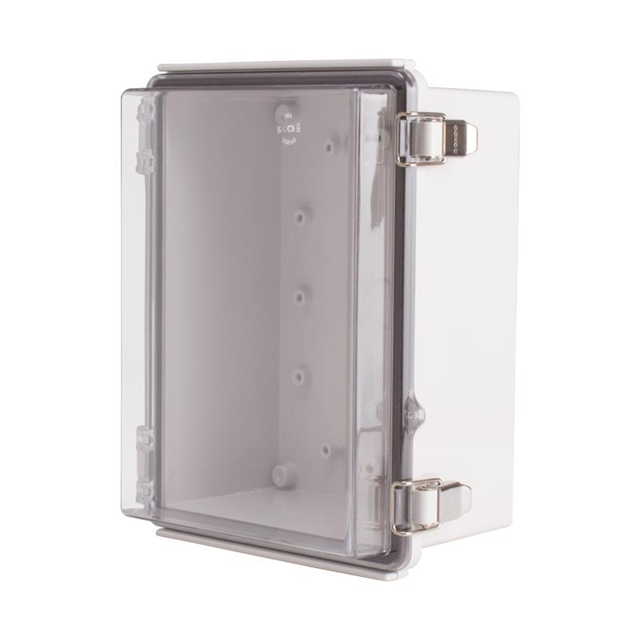

Boxco BC-ATP-172211			8.661 in	6.693 in	170 mm	220 mm	UL94 HB	110 mm		3.2 mm	0.126 in	Box	Hinged Latches Lockable Sealing Gasket	Plastic ABS Body Polycarbonate Cover		374 cm²	Clear Cover Light Gray	6 IP66 IP67 NEMA 4X	Hinged Door Stainless Steel Latch	58 in²		4.331 in
