8602-1 Series

Catalog

CONN PC PIN SQUARE .025 TINLEAD

Part	Terminal Style	Length - Below Flange [x]	Length - Below Flange [x]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Terminal Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Above Flange [custom]	Length - Above Flange [custom]	Pin Size - Above Flange	Pin Size - Above Flange	Contact Material	Insulation	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]
Mill-Max Manufacturing Corp. 8602-1-00-50-00-00-07-0	Single End	0.12 "	3.05 mm	9.14 mm	0.36 "	Through Hole	PC Pin	1.02 mm	0.04 in	0.1 in	2.54 mm	0.025 in	0.64 mm	Brass Alloy	Non-Insulated	0.032 in	0.81 mm	Press-Fit Square	7.62 µm	300 µin	Tin-Lead	0.89 mm	0.035 in

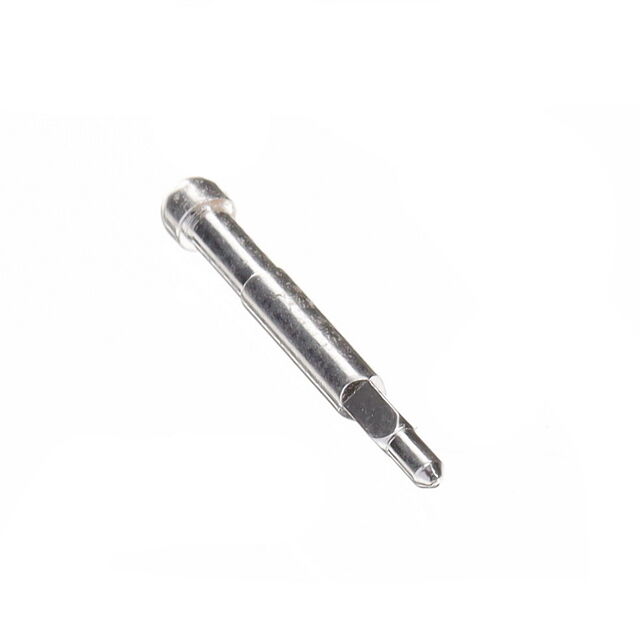

Mill-Max Manufacturing Corp. 8602-1-00-44-00-00-07-0	Single End	0.12 "	3.05 mm	9.14 mm	0.36 "	Through Hole	PC Pin	1.02 mm	0.04 in	0.1 in	2.54 mm	0.025 in	0.64 mm	Brass Alloy	Non-Insulated	0.032 in	0.81 mm	Press-Fit Square	7.62 µm	300 µin	Silver	0.89 mm	0.035 in
Mill-Max Manufacturing Corp. 8602-1-00-01-00-00-07-0	Single End	0.12 "	3.05 mm	9.14 mm	0.36 "	Through Hole	PC Pin	1.02 mm	0.04 in	0.1 in	2.54 mm	0.025 in	0.64 mm	Brass Alloy	Non-Insulated	0.032 in	0.81 mm	Press-Fit Square	5.08 Ám	200 Áin	Tin-Lead	0.89 mm	0.035 in

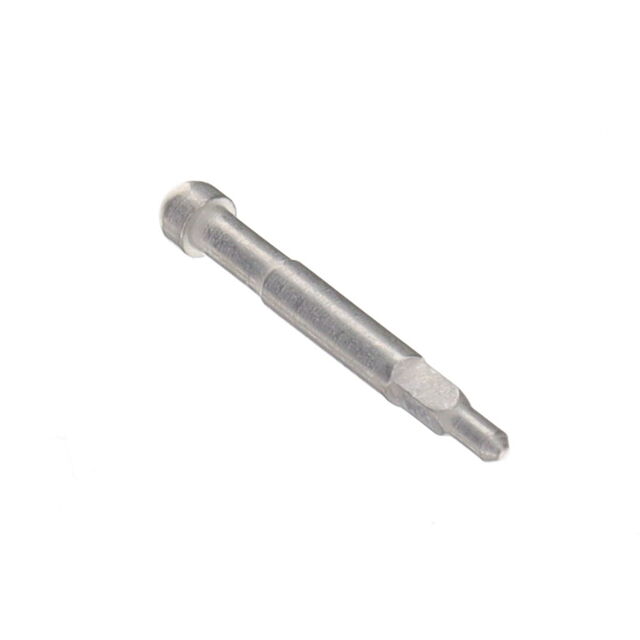

Mill-Max Manufacturing Corp. 8602-1-00-80-00-00-07-0	Single End	0.12 "	3.05 mm	9.14 mm	0.36 "	Through Hole	PC Pin	1.02 mm	0.04 in	0.1 in	2.54 mm	0.025 in	0.64 mm	Brass Alloy	Non-Insulated	0.032 in	0.81 mm	Press-Fit Square	5.08 Ám	200 Áin	Tin	0.89 mm	0.035 in
