5123 Series

Catalog

CONNECTOR: AC SUPPLY; SOCKET; MALE; 15A; 250VAC; C14 (E); 5123

Part	Connector Type	Voltage Rating - Appliance Inlet	Features	Connector Style	Material Flammability Rating	Approval Agency	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Mounting Type	Termination	Termination	Termination	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Ingress Protection	Switch Features

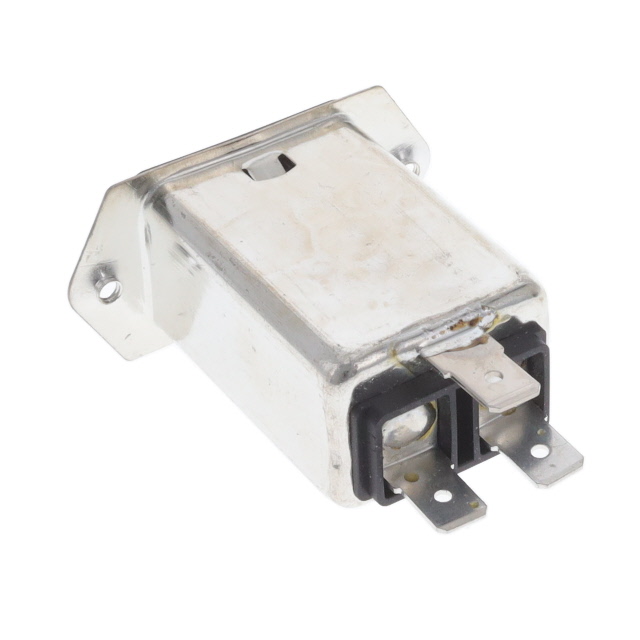

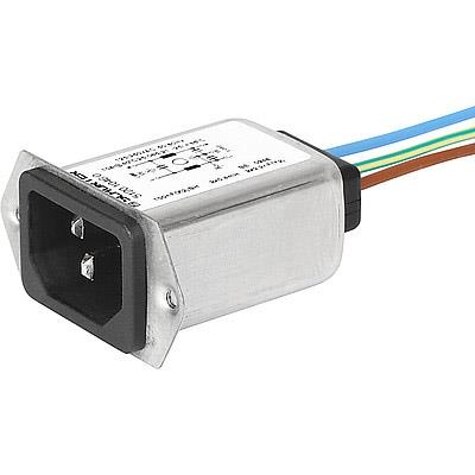

SCHURTER Inc. 5123.1307.0	Receptacle Male Blades	250 VAC	Shielded	IEC 320-C14	UL94 V-0	cURus ENEC	Filtered (EMI RFI) - Commercial Medical	29 mm	21.5 mm	15 A	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	15 A	8 mm	0.315 in	IP40
SCHURTER Inc. 5123.0306.0	Receptacle Male Blades	250 VAC	Front or Rear Side Mount Shielded V-Lock Notch	IEC 320-C14	UL94 V-0	cURus ENEC	Filtered (EMI RFI) - Commercial Medical	29.4 mm	21.5 mm	10 A	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	10 A	8 mm	0.315 in	IP40	No Breaker/Switch
SCHURTER Inc. 5123.1046.0	Receptacle Male Blades	250 VAC	Rear Side Mount Shielded V-Lock Notch	IEC 320-C14	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial	30.5 mm	22.5 mm	10 A	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	10 A			IP40
SCHURTER Inc. 5123.0003.0	Receptacle Male Blades	250 VAC	Front or Rear Side Mount Shielded V-Lock Notch	IEC 320-C14	UL94 V-0	cURus ENEC	Filtered (EMI RFI) - Commercial	29.4 mm	21.5 mm	4 A	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	4 A	8 mm	0.315 in	IP40	No Breaker/Switch

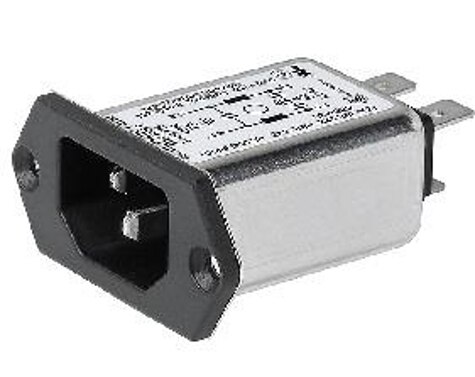

SCHURTER Inc. 3-119-787	Receptacle Male Blades	250 VAC	Rear Side Mount Shielded V-Lock Notch	IEC 320-C14	UL94 V-0	cULus ENEC	Filtered (EMI RFI) - Commercial Medical	30.5 mm	22.5 mm	4 A	Flange Panel Mount		Wire Leads		4 A			IP40
