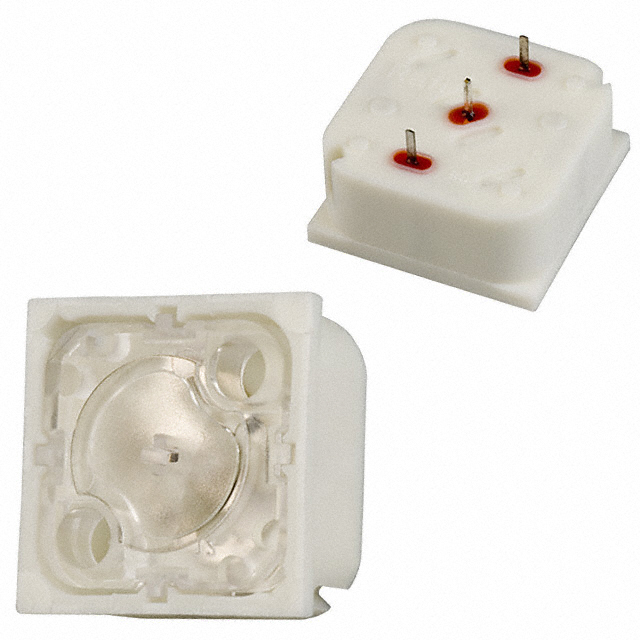

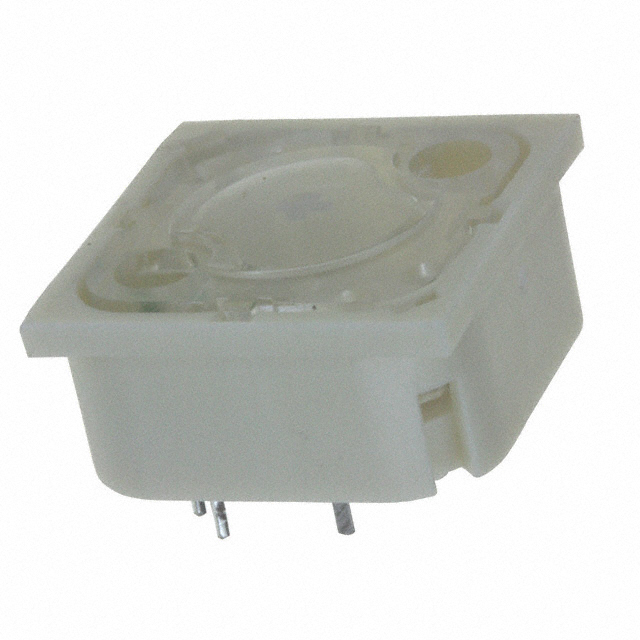

3.14.001 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE

Part	Switch Function	Mounting Type	Illumination Type, Color	Actuator Height off PCB, Vertical	Circuit	Termination Style	Actuator Type	Contact Rating @ Voltage	Switch Travel	Actuator Orientation	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Illumination	Operating Force	Operating Force [Min]	Operating Force [Max]	Actuator Height off PCB, Vertical [z]
RAFI USA 3.14.001.672/0000
RAFI USA 3.14.001.083/0000	Off-Mom	Through Hole	LED Yellow	9.7 mm	SPST-NO	PC Pin	Square Button	0.1 A 35 VAC/DC	0.5 mm	Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C	1000000 Cycles	Illuminated	296 gf
RAFI USA 3.14.001.041/0000	Off-Mom	Through Hole	LED Red	9.7 mm	SPST-NO	PC Pin	Square Button	0.25 A 35 VAC/DC		Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C		Illuminated	296 gf
RAFI USA 3.14.001.006/0000	Off-Mom	Through Hole		9.7 mm	SPST-NO	PC Pin	Square Button	0.25 A 50 VAC/DC		Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C		Non-Illuminated		204 gf	306 gf
RAFI USA 3.14.001.672/0000
RAFI USA 3.14.001.083/0000	Off-Mom	Through Hole	LED Yellow	9.7 mm	SPST-NO	PC Pin	Square Button	0.1 A 35 VAC/DC		Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C		Illuminated	296 gf
RAFI USA 3.14.001.582/0000
RAFI USA 3.14.001.506/0000	Off-Mom	Through Hole			SPST-NO	PC Pin	Square Button	0.25 A 35 VAC/DC	0.5 mm	Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C	1000000 Cycles	Non-Illuminated	296 gf			12.5 mm
RAFI USA 3.14.001.043/0000	Off-Mom	Through Hole	LED Yellow	9.7 mm	SPST-NO	PC Pin	Square Button	0.25 A 35 VAC/DC	0.5 mm	Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C	1000000 Cycles	Illuminated	296 gf
RAFI USA 3.14.001.042/0000	Off-Mom	Through Hole	Green LED	9.7 mm	SPST-NO	PC Pin	Square Button	0.25 A 35 VAC/DC	0.5 mm	Top Actuated	19.05 mm	19.05 mm	-25 °C	70 °C	1000000 Cycles	Illuminated	296 gf
