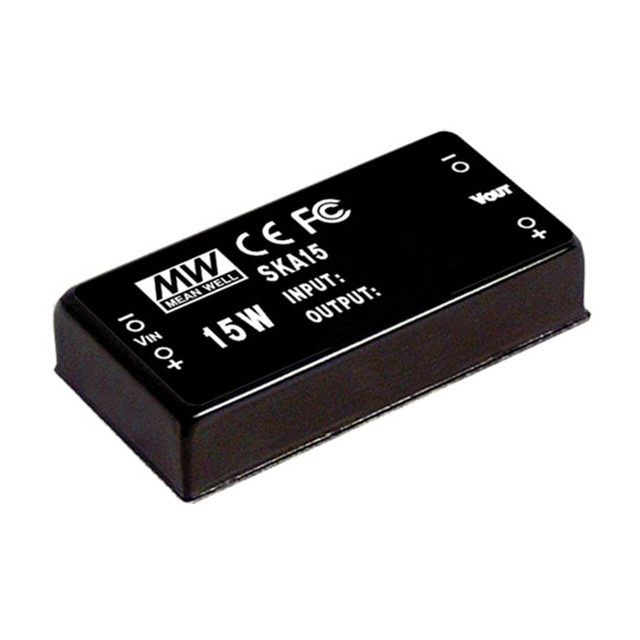

SKA15 Series

Catalog

DC DC CONVERTER 3.3V 10W

Part	Number of Outputs	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Features	Efficiency	Type	Voltage - Isolation	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)
MEAN WELL USA Inc. SKA15B-033	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	18 V	OVP SCP	76 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	3 A	3.3 V	36 V	10 W
MEAN WELL USA Inc. SKA15C-12	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	36 V	OVP SCP		Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	1.25 A	12 V	72 V	15 W
MEAN WELL USA Inc. SKA15B-15	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	18 V	OVP SCP	80 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	1 A	15 V	36 V	15 W
MEAN WELL USA Inc. SKA15B-05	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	18 V	OVP SCP	78 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	3 A	5 V	36 V	15 W
MEAN WELL USA Inc. SKA15B-12	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	18 V	OVP SCP	80 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	1.25 A	12 V	36 V	15 W
MEAN WELL USA Inc. SKA15C-05	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	36 V	OVP SCP	80 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	3 A	5 V	72 V	15 W
MEAN WELL USA Inc. SKA15C-033	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	36 V	OVP SCP	76 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	3 A	3.3 V	72 V	10 W
MEAN WELL USA Inc. SKA15A-033	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	9 V	OVP SCP	76 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	3 A	3.3 V	18 V	10 W
MEAN WELL USA Inc. SKA15A-12	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	9 V	OVP SCP		Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	1.25 A	12 V	18 V	15 W
MEAN WELL USA Inc. SKA15A-05	1	Through Hole	2 in	0.44 in	50.8 mm	25.4 mm	1 "	11.3 mm	9 V	OVP SCP	78 %	Isolated Module	1000 V	5-DIP Module	ITE (Commercial)	-40 °C	71 °C	3 A	5 V	18 V	15 W
