88947 Series

Catalog

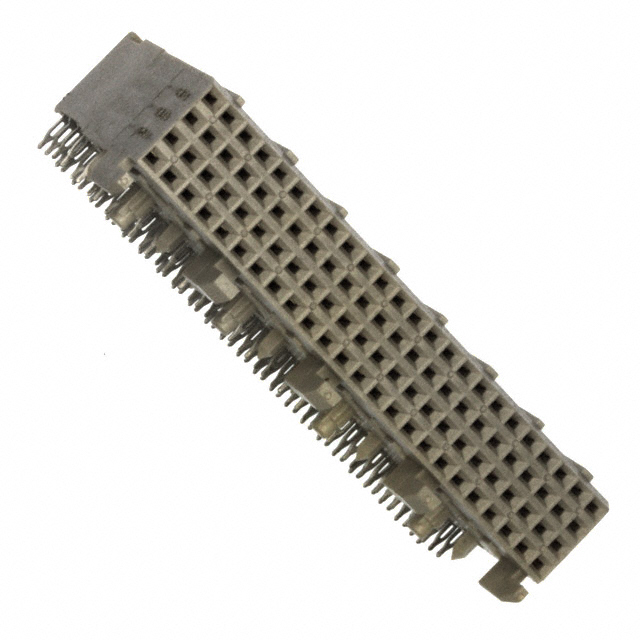

CONN RCPT 96POS EDGE MNT

Part	Color	Connector Type	Mounting Type	Number of Positions	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions Loaded	Material Flammability Rating	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 88947-302	Natural	Receptacle Female Sockets	Board Edge Right Angle Through Hole	96	Board Guide Spacer	Press-Fit	105 ░C	-55 °C	1000 VDC	All	UL94 V-0	0.079 in	2 mm
Amphenol ICC (FCI) 88947-202LF	Natural	Receptacle Female Sockets	Board Edge Right Angle Through Hole	96	Board Guide Spacer	Press-Fit	105 ░C	-55 °C	1000 VDC	All	UL94 V-0	0.079 in	2 mm
Amphenol ICC (FCI) 88947-202	Natural	Receptacle Female Sockets	Board Edge Right Angle Through Hole	96	Board Guide Spacer	Press-Fit	105 ░C	-55 °C	1000 VDC	All	UL94 V-0	0.079 in	2 mm
Amphenol ICC (FCI) 88947-102LF	Natural	Receptacle Female Sockets	Board Edge Right Angle Through Hole	96	Board Guide Spacer	Press-Fit	105 ░C	-55 °C	1000 VDC	All	UL94 V-0	0.079 in	2 mm	Gold	0.76 Ám	30 Áin
Amphenol ICC (FCI) 88947-112	Natural	Receptacle Female Sockets	Board Edge Right Angle Through Hole	96	Board Guide Spacer	Press-Fit	105 ░C	-55 °C	1000 VDC	All	UL94 V-0	0.079 in	2 mm	Gold	0.76 Ám	30 Áin
