001528 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 18POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Number of Positions	Features	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Fastening Type	Contact Type	Shrouding	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Connector Type	Mounting Type	Contact Finish - Post	Style	Number of Rows [custom]	Contact Material	Pitch - Mating	Pitch - Mating	Termination	Contact Shape	Insulation Material	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]

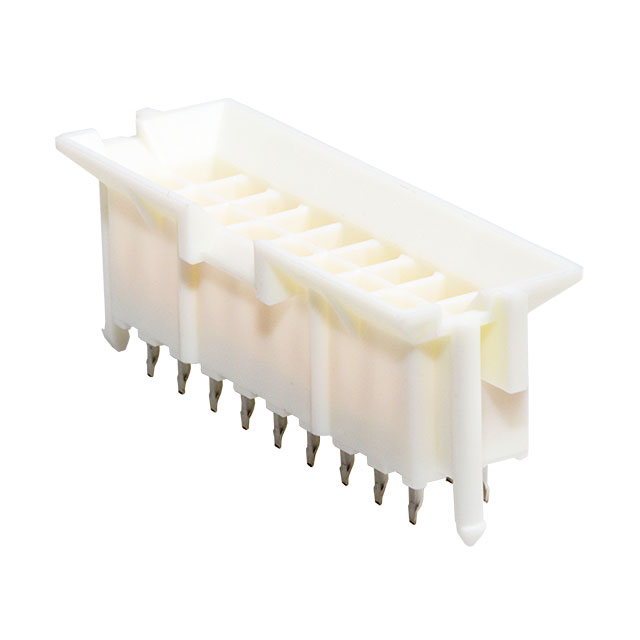

Molex 0015286182	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	18	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)

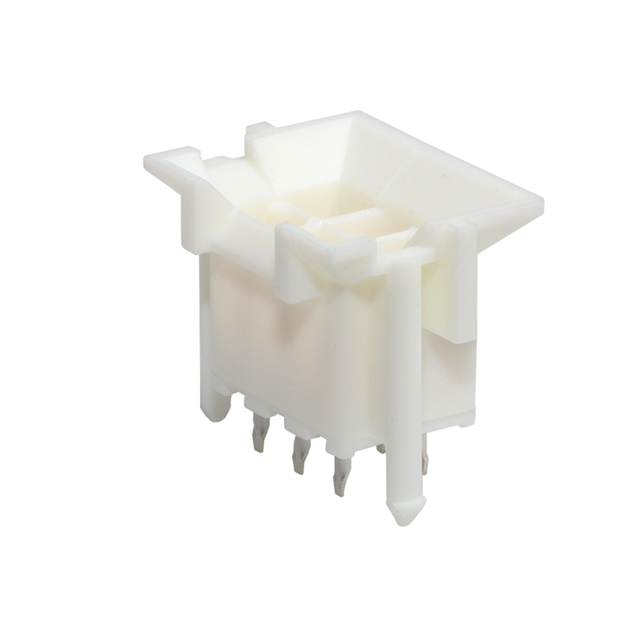

Molex 0015286062	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	6	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)
Molex 0015286310				10	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.076 µm	3 µin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)	Varies by Wire Gauge	600 VAC	-40 C	105 ░C
Molex 0015286042	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	4	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)

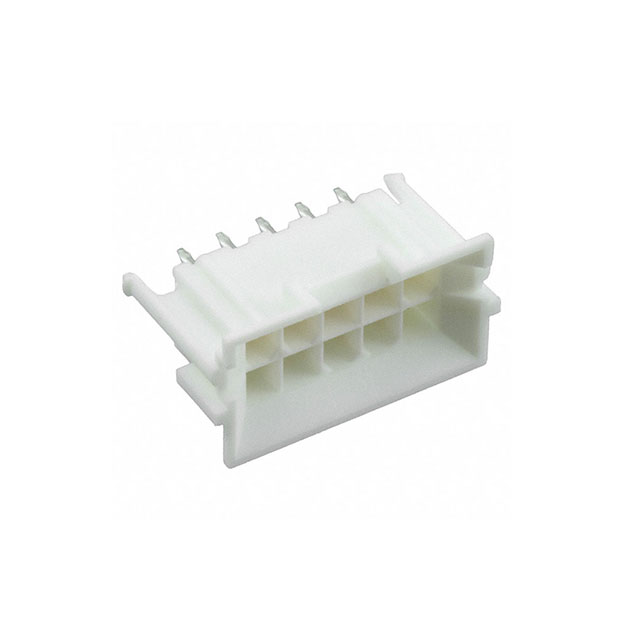

Molex 0015286102	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	10	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)

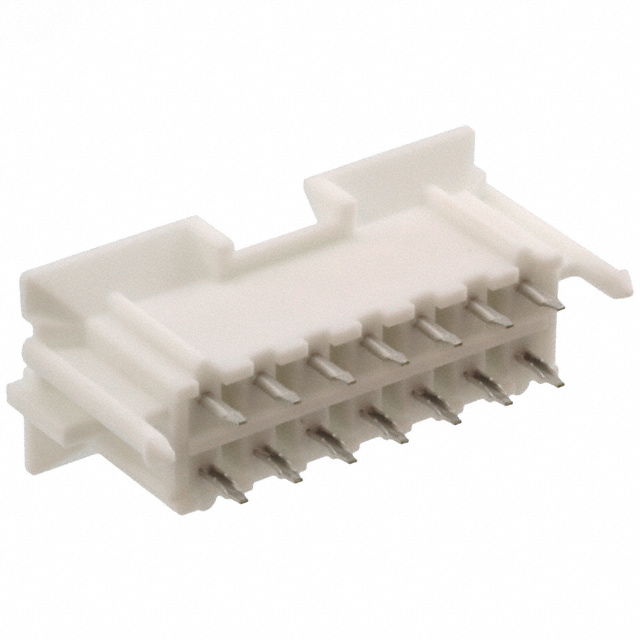

Molex 0015286142	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	14	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)

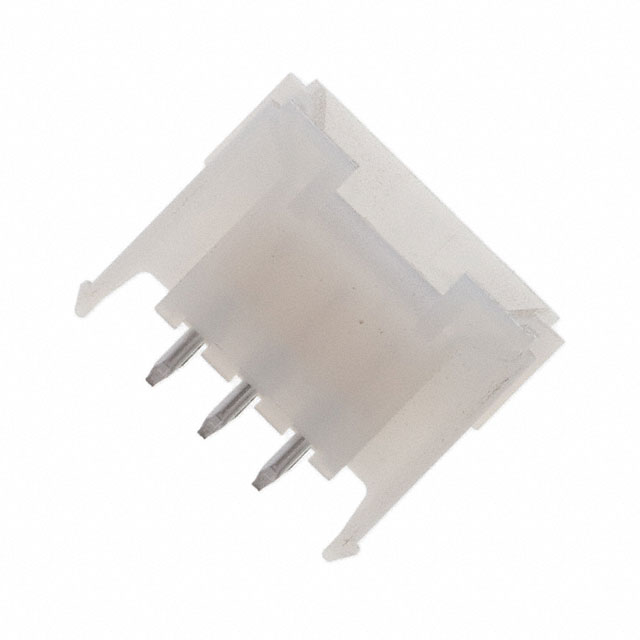

Molex 0015286061	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	6	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-2	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)
Molex 0015286101	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	10	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-2	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)

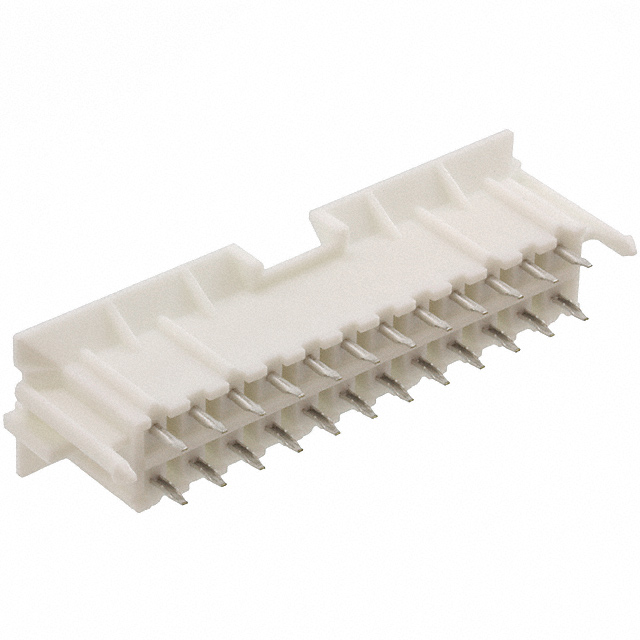

Molex 0015286242	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	24	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-0	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)
Molex 0015286041	2.54 µm	100 µin	General Purpose Industrial Medical Telecommunications	4	Blind Mating Board Lock	All	0.165 in	4.2 mm	Natural	Latch Holder	Male Pin	Shrouded - 4 Wall	Gold	0.138 in	3.5 mm	0.76 Ám	30 Áin	14.1 mm	0.555 in	UL94 V-2	Header	Through Hole	Tin	Board to Board Cable	2	Brass	0.165 in	4.2 mm	Solder	Square	Nylon 6/6 Polyamide (PA66)
