INA333-HT Series

Automotive low-power, zero-drift, precision instrumentation amplifier

Catalog

Automotive low-power, zero-drift, precision instrumentation amplifier

Part	Mounting Type	Current - Input Bias	Voltage - Input Offset	Number of Circuits	Output Type	Voltage - Supply Span (Min) [Min]	Current - Supply	Current - Output / Channel	Package / Case	Slew Rate	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Max) [Max]	Amplifier Type	-3db Bandwidth	Package / Case [custom]	Package / Case	Current - Output / Channel [custom]	Package / Case [x]	Package / Case [y]	Grade	Qualification

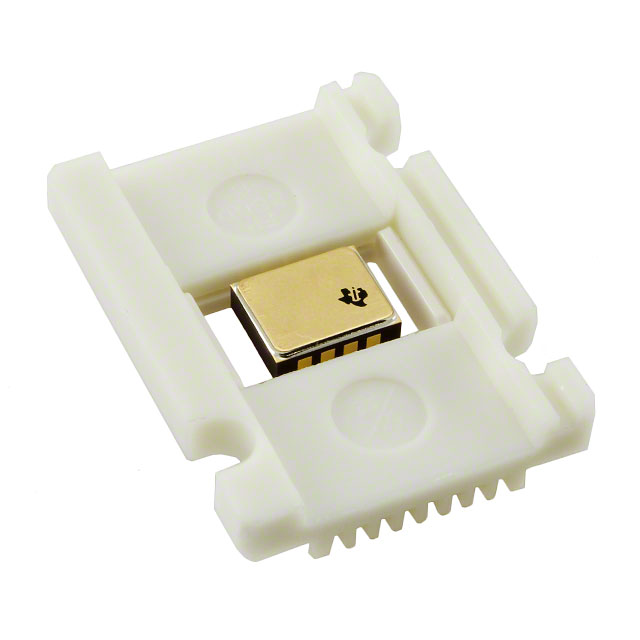

Texas Instruments INA333SHKJ	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA	55 mA	8-CFlatPack	0.16 V/µs	8-CFP	210 °C	-55 °C	5.5 V	Instrumentation	150 kHz
Texas Instruments INA333AIDGKR	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA		8-MSOP 8-TSSOP	0.16 V/µs		125 °C	-40 °C	5.5 V	Instrumentation	150 kHz	0.118 in	3 mm	40 mA
Texas Instruments INA333AIDGKRG4	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA		8-MSOP 8-TSSOP	0.16 V/µs		125 °C	-40 °C	5.5 V	Instrumentation	150 kHz	0.118 in	3 mm	40 mA

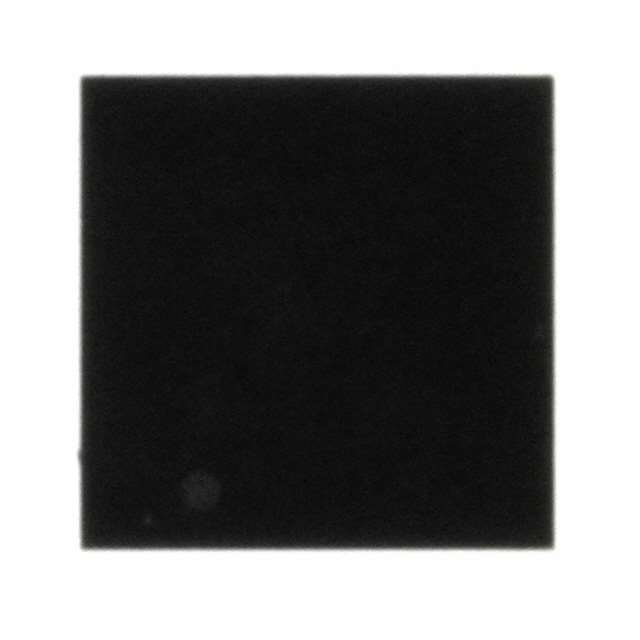

Texas Instruments INA333AIDRGR	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA		8-WFDFN Exposed Pad	0.16 V/µs	8-SON (3x3)	125 °C	-40 °C	5.5 V	Instrumentation	150 kHz			40 mA

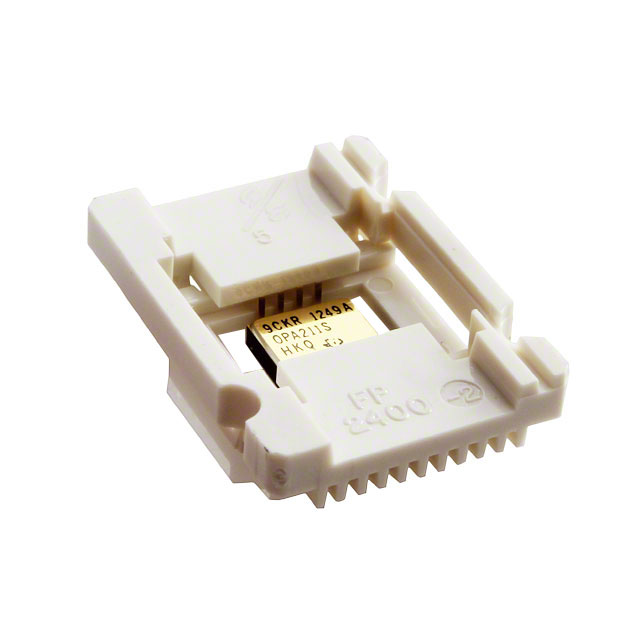

Texas Instruments INA333SHKQ	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA	55 mA	8-CSOIC	0.16 V/µs	8-CFP	210 °C	-55 °C	5.5 V	Instrumentation	150 kHz				0.22 in	5.65 mm
Texas Instruments INA333QDGKRQ1	Surface Mount	70 pA	10 µV	1		1.8 V	50 µA		8-MSOP 8-TSSOP	0.16 V/µs		125 °C	-40 °C	5.5 V	Instrumentation	150 kHz	0.118 in	3 mm	40 mA			Automotive	AEC-Q100
Texas Instruments INA333AIDRGT	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA		8-WFDFN Exposed Pad	0.16 V/µs	8-SON (3x3)	125 °C	-40 °C	5.5 V	Instrumentation	150 kHz			40 mA

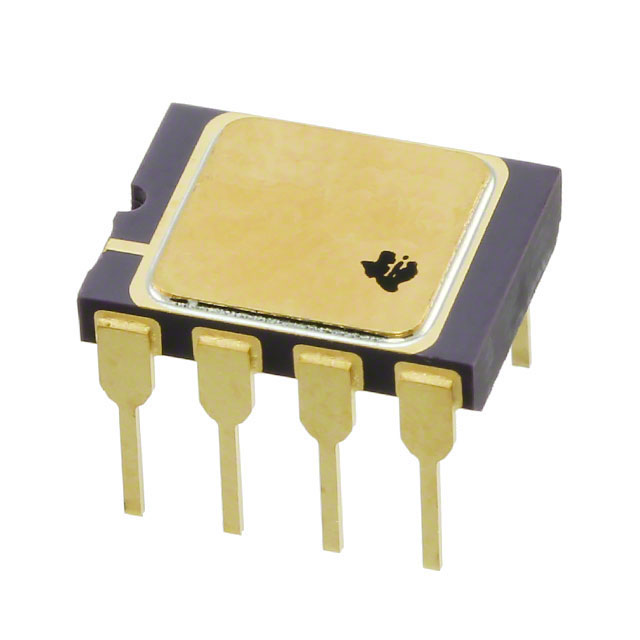

Texas Instruments INA333SJD	Through Hole	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA			0.16 V/µs		210 °C	-55 °C	5.5 V	Instrumentation	150 kHz			40 mA
Texas Instruments INA333AIDGKTG4	Surface Mount	70 pA	10 µV	1	Rail-to-Rail	1.8 V	50 µA		8-MSOP 8-TSSOP	0.16 V/µs		125 °C	-40 °C	5.5 V	Instrumentation	150 kHz	0.118 in	3 mm	40 mA

Catalog

Automotive low-power, zero-drift, precision instrumentation amplifier

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C ≤ T A ≤ +125°CFunctional Safety-CapableDocumentation available to aid functional safety system designLow offset voltage: 25 µV (maximum), G ≥ 100Low drift: 0.1 µV/°C, G ≥ 100Low noise: 50 nV/√ Hz, G ≥ 100High CMRR: 96 dB (minimum), G ≥ 10Low input bias current: 280 pA (maximum)Supply range: 1.8 V to 5.5 VInput voltage: (V–) + 0.1 V to (V+) – 0.1 VOutput range: (V–) + 0.05 V to (V+) – 0.05 VLow quiescent current: 50 µAOperating temperature: –40°C to +125°CRFI filtered inputsPackage: 8-pin VSSOPAEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C ≤ T A ≤ +125°CFunctional Safety-CapableDocumentation available to aid functional safety system designLow offset voltage: 25 µV (maximum), G ≥ 100Low drift: 0.1 µV/°C, G ≥ 100Low noise: 50 nV/√ Hz, G ≥ 100High CMRR: 96 dB (minimum), G ≥ 10Low input bias current: 280 pA (maximum)Supply range: 1.8 V to 5.5 VInput voltage: (V–) + 0.1 V to (V+) – 0.1 VOutput range: (V–) + 0.05 V to (V+) – 0.05 VLow quiescent current: 50 µAOperating temperature: –40°C to +125°CRFI filtered inputsPackage: 8-pin VSSOP

Description

The INA333-Q1 is a low-power, precision instrumentation amplifier offering excellent accuracy. The three-op-amp design, small size, and low power make this device an excellent choice for automotive applications that require precise measurements, such as current leakage detection. This INA333-Q1 is also a great choice for applications that use resistive bridge sensors. A single external resistor sets any gain from 1 to 1000. The INA333-Q1 is designed to use an industry-standard gain equation: G = 1 + (100 kΩ / R G). The INA333-Q1 provides very low offset voltage (25 µV, G ≥ 100), excellent offset voltage drift (0.1 µV/°C, G ≥ 100), and high common-mode rejection (96 dB at G ≥ 10). The device operates with power supplies as low as 1.8 V (±0.9 V), and quiescent current is only 50 µA. Auto-calibration techniques maintain excellent precision over the automotive temperature range. The INA333-Q1 provides a very low peak-to-peak noise of 1 µV. The INA333-Q1 device is available in an 8-pin VSSOP package and is specified over the T A = –40°C to +125°C temperature range. The INA333-Q1 is a low-power, precision instrumentation amplifier offering excellent accuracy. The three-op-amp design, small size, and low power make this device an excellent choice for automotive applications that require precise measurements, such as current leakage detection. This INA333-Q1 is also a great choice for applications that use resistive bridge sensors. A single external resistor sets any gain from 1 to 1000. The INA333-Q1 is designed to use an industry-standard gain equation: G = 1 + (100 kΩ / R G). The INA333-Q1 provides very low offset voltage (25 µV, G ≥ 100), excellent offset voltage drift (0.1 µV/°C, G ≥ 100), and high common-mode rejection (96 dB at G ≥ 10). The device operates with power supplies as low as 1.8 V (±0.9 V), and quiescent current is only 50 µA. Auto-calibration techniques maintain excellent precision over the automotive temperature range. The INA333-Q1 provides a very low peak-to-peak noise of 1 µV. The INA333-Q1 device is available in an 8-pin VSSOP package and is specified over the T A = –40°C to +125°C temperature range.
