VM03 Series

Catalog

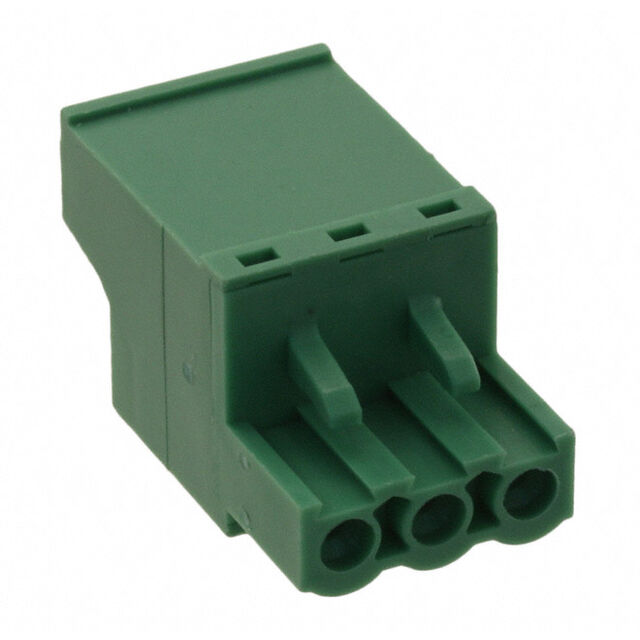

TERM BLOCK PLUG 3POS STR 5.08MM

Part	Current - UL	Contact Mating Finish	Number of Levels	Mounting Type	Termination Style	Wire Strip Length [Min]	Wire Strip Length [Max]	Voltage - UL	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Housing Material	Contact Material	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Features	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Screw Size	Type	Positions Per Level	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Insulation Height [z]	Insulation Height [z]
Amphenol Anytek VM0355820000G	20 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	8 mm	9 mm	300 V	Gray	0.34 mm²	2.5 mm²	Thermoplastic	Copper	0.2 in	5.08 mm	0.591 in	15 mm	Mating Flange Retention Latches (Non-Wire Side)	-40 °C	115 °C	0.4 Nm	3.5 Lb-In	12 AWG	22 AWG	M2.5	Plug Female Sockets	3	UL94 V-0
Amphenol Anytek VM0335820000G	10 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Gray			Thermoplastic	Phosphor Bronze	0.15 in	3.81 mm			Mating Flange	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	16 AWG	28 AWG	M2	Plug Female Sockets	3	UL94 V-0	0.488 in	12.4 mm
Amphenol Anytek VM0305510000G	20 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	8 mm	9 mm	300 V	Green			Thermoplastic	Copper	0.3 in	7.62 mm				-40 °C	115 °C	0.4 Nm	3.5 Lb-In	12 AWG	22 AWG	M2.5	Plug Female Sockets	3	UL94 V-0			0.587 in	14.91 mm
Amphenol Anytek VM0315820000G	10 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Gray			Thermoplastic	Phosphor Bronze	0.138 in	3.5 mm			Mating Flange	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	16 AWG	28 AWG	M2	Plug Female Sockets	3	UL94 V-0	0.488 in	12.4 mm
Amphenol Anytek VM0375500000G	10 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Green	1 mm²	2.5 mm²	Thermoplastic Resin	Copper Alloy	0.197 in	5 mm	1.083 in	27.51 mm		-40 °C	115 °C	0.4 Nm	3.5 Lb-In	12 AWG	22 AWG	M2.5	Plug Female Sockets	3	UL94 V-0
Amphenol Anytek VM0315800000G	10 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Gray			Thermoplastic	Phosphor Bronze	0.138 in	3.5 mm				-40 °C	115 °C	0.2 Nm	1.7 Lb-In	16 AWG	28 AWG	M2	Plug Female Sockets	3	UL94 V-0	0.488 in	12.4 mm
Amphenol Anytek VM0375820000G	20 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Gray	0.34 mm²	2.5 mm²	Thermoplastic	Copper	0.197 in	5 mm	0.591 in	15 mm	Mating Flange Retention Latches (Non-Wire Side)	-40 °C	115 °C	0.4 Nm	3.5 Lb-In	12 AWG	22 AWG	M2.5	Plug Female Sockets	3	UL94 V-0
Amphenol Anytek VM03A5010000G	20 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Black	0.34 mm²	2.5 mm²	Thermoplastic	Copper	0.295 in	7.5 mm				-40 °C	115 °C	0.4 Nm	3.5 Lb-In	12 AWG	22 AWG	M2.5	Plug Female Sockets	3	UL94 V-0			0.587 in	14.91 mm
Amphenol Anytek VM0315520000G	10 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	6 mm	7 mm	300 V	Green			Thermoplastic	Phosphor Bronze	0.138 in	3.5 mm			Mating Flange	-40 °C	115 °C	0.2 Nm	1.7 Lb-In	16 AWG	28 AWG	M2	Plug Female Sockets	3	UL94 V-0	0.488 in	12.4 mm
Amphenol Anytek VM0375800000G	20 A	Tin	1	Free Hanging (In-Line)	Screw - Pressure Clip	8 mm	9 mm	300 V	Gray	0.34 mm²	2.5 mm²	Thermoplastic	Copper	0.197 in	5 mm	0.591 in	15 mm		-40 °C	115 °C	0.4 Nm	3.5 Lb-In	12 AWG	22 AWG	M2.5	Plug Female Sockets	3	UL94 V-0
