APC-12 Series

Catalog

LED DRIVER CC AC/DC 9-18V 700MA

Part	Mounting Type	Current - Output (Max) [Max]	Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Topology	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Approval Agency	Efficiency	Number of Outputs	Features	Ratings	Power (Watts)	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Isolation

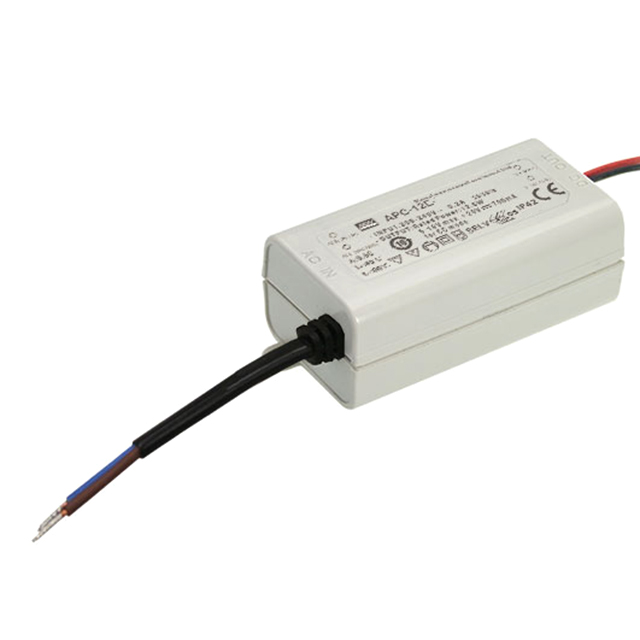

MEAN WELL USA Inc. APC-12E-700	Chassis Mount	700 mA	Constant Current	180 VAC	-30 ░C	70 °C	Wire Leads	AC DC Converter	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	264 VAC	CE ENEC	79 %	1	OVP SCP	IP42	13 W	9 V	18 V	3750 VDC
MEAN WELL USA Inc. APC-12E-350	Chassis Mount	350 mA	Constant Current	180 VAC	-30 ░C	70 °C	Wire Leads	AC DC Converter	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	264 VAC	CE ENEC	81 %	1	OVP SCP	IP42	13 W	9 V	36 V	3750 VDC

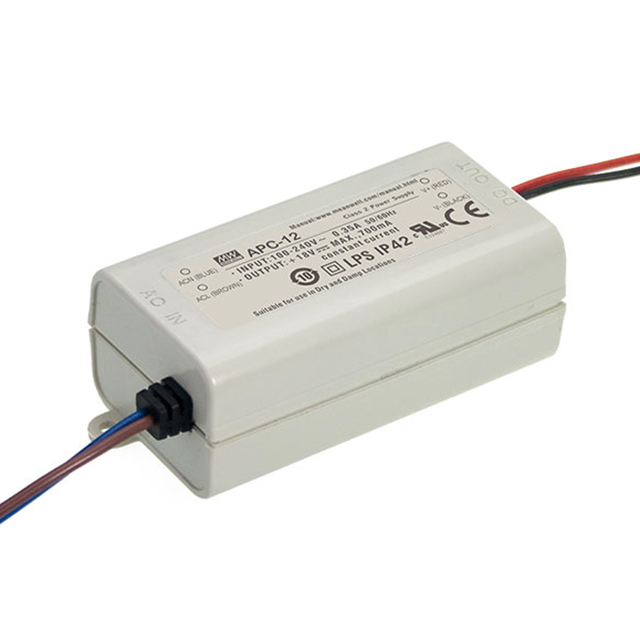

MEAN WELL USA Inc. APC-12-350	Chassis Mount	350 mA	Constant Current	90 VAC	-30 ░C	70 °C	Wire Leads	AC DC Converter	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	264 VAC	CCC CE cURus		1	OVP SCP	IP42	13 W	9 V	36 V	3750 VDC
MEAN WELL USA Inc. APC-12-700	Chassis Mount	700 mA	Constant Current	90 VAC	-30 ░C	70 °C	Wire Leads	AC DC Converter	77 mm	3.03 in	1.14 in	29 mm	40 mm	1.57 "	264 VAC	CCC CE cURus	80 %	1	OVP SCP	IP42	13 W	9 V	18 V	3750 VDC
