829315 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

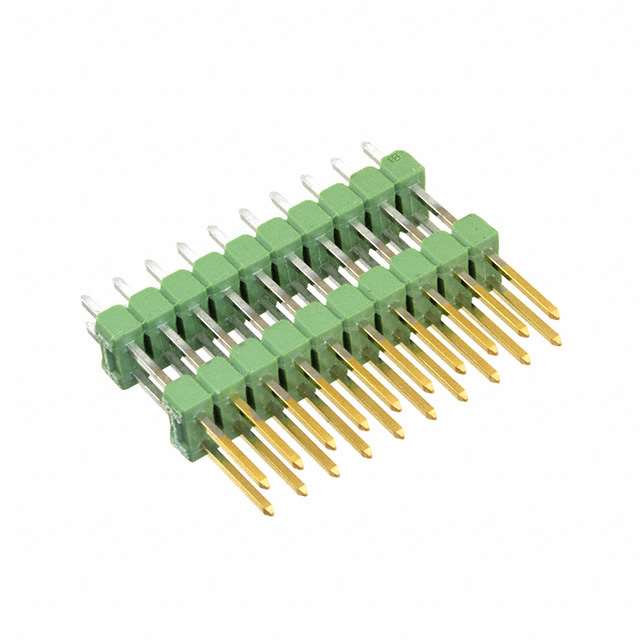

CONN HDR 20POS 0.1 STACK T/H
| Part | Number of Rows [custom] | Row Spacing | Row Spacing | Color | Contact Finish - Post (Mating) | Length - Tail | Length - Tail | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Length - Overall Pin [x] | Length - Overall Pin [x] | Contact Finish Thickness - Post (Mating) [custom] | Termination | Mounting Type | Number of Positions | Length - Stack Height [x] | Length - Stack Height [x] | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | 2.54 mm | 0.1 " | Green | Gold | 3.2 mm | 0.126 in | 7.8 mm | 0.307 " | 0.866 in | 22 mm | Flash | Solder | Through Hole | 20 | 0.433 in | 11 mm | 0.1 " | 2.54 mm |
