71S102 Series
Manufacturer: Rosenberger
Beta
⌘K

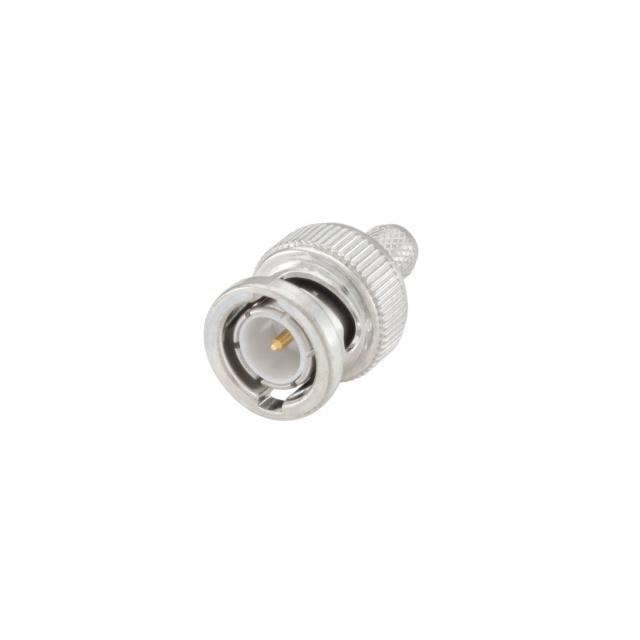

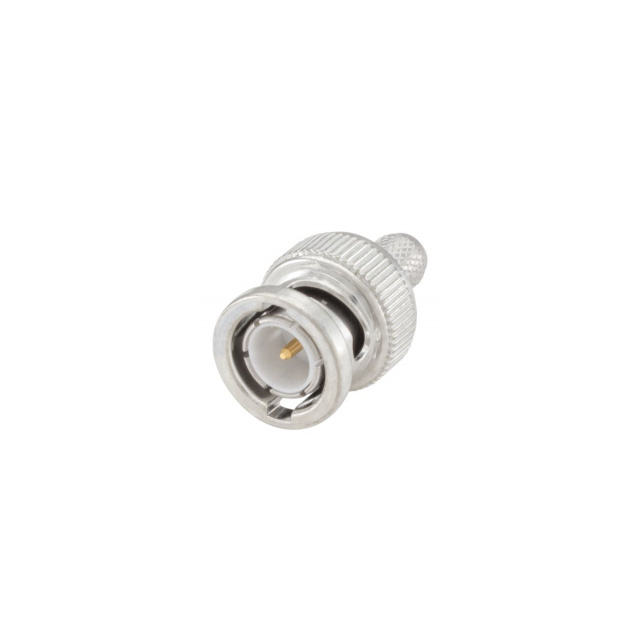

BNC 75 OHM STRAIGHT PLUG
| Part | Dielectric Material | Voltage Rating | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Fastening Type | Frequency - Max [Max] | Impedance | Shield Termination | Number of Ports | Housing Color | Connector Type | Center Contact Material | Mounting Type | Contact Termination | Connector Style | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | 400 V | 500 | Brass | -65 ░C | 165 °C | Gold | White Bronze | Bayonet Lock | 4 GHz | 75 Ohms | Crimp | 1 | Silver | Plug Male Pin | Brass | Free Hanging (In-Line) | Crimp | BNC | ||
 Rosenberger | 400 V | 500 | Brass | -65 ░C | 165 °C | Gold | White Bronze | Bayonet Lock | 4 GHz | 75 Ohms | Crimp | 1 | Silver | Plug Male Pin | Brass | Free Hanging (In-Line) | Crimp | BNC | 1 Connector 1 Contact 1 Ferrule 1 Insulator | 62B RG-62A | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | 400 V | 500 | Brass | -65 ░C | 165 °C | Gold | White Bronze | Bayonet Lock | 4 GHz | 75 Ohms | Crimp | 1 | Silver | Plug Male Pin | Brass | Free Hanging (In-Line) | Crimp | BNC | 1 Connector 1 Contact 1 Ferrule | RG-59B |
 Rosenberger | Polytetrafluoroethylene (PTFE) | 400 V | 500 | Brass | -65 ░C | 165 °C | Gold | White Bronze | Bayonet Lock | 4 GHz | 75 Ohms | Crimp | 1 | Silver | Plug Male Pin | Brass | Free Hanging (In-Line) | Crimp | BNC |
