SBCP-14HY Series

Manufacturer: KEMET

Catalog

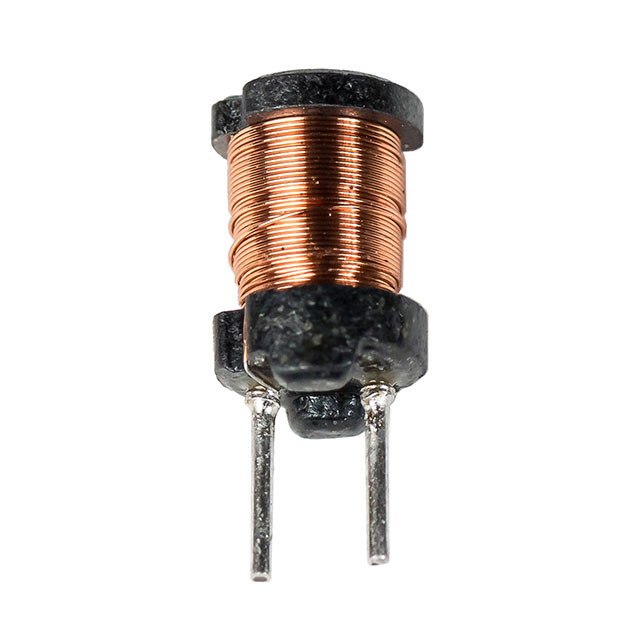

POWER CHOKE UNSHIELDED DRUM CORE 100UH 10% 10KHZ FERRITE 2.15A 0.14OHM DCR RDL BULK

Part	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Tolerance	Mounting Type	Current - Saturation (Isat)	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Inductance Frequency - Test	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR)
KEMET SBCP-14HY101B	Unshielded	15 mm	0.591 "	Ferrite	10 %	Through Hole	3.1 A	100 µH	140 mOhm	1.5 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm
KEMET SBCP-14HY221B	Unshielded	15 mm	0.591 "	Ferrite	10 %	Through Hole	2.2 A	220 µH	310 mOhm	1.05 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm
KEMET SBCP-14HY331B	Unshielded	15 mm	0.591 "	Ferrite	10 %	Through Hole		330 µH	380 mOhm	950 mA	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm
KEMET SBCP-14HY6R8B	Unshielded	15 mm	0.591 "	Ferrite	20 %	Through Hole	11.86 A	6.8 µH	30 mOhm	3.35 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm
KEMET SBCP-14HY330B	Unshielded	15 mm	0.591 "	Ferrite	20 %	Through Hole	5.63 A	33 µH		2.4 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm	70 mOhm
KEMET SBCP-14HY222B	Unshielded	15 mm	0.591 "	Ferrite	10 %	Through Hole	690 mA	2.2 mH	2.36 Ohm	0.38 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm
KEMET SBCP-14HY332B	Unshielded	15 mm	0.591 "	Ferrite	10 %	Through Hole	570 mA	3300 µH		0.33 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm	2.42 Ohm
KEMET SBCP-14HY470B	Unshielded	15 mm	0.591 "	Ferrite	10 %	Through Hole	4.58 A	47 µH	90 mOhm	1.9 A	10 kHz	Radial Vertical Cylinder (Open)	-20 ░C	105 ░C	Drum Core Wirewound	0.472 "	12 mm
