F92ELQ Series

Catalog

OS2 2F 1.6MM PC LSZH PUSHPULL LC/PUSHPUL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Insertion Loss	Ratings	Length - Overall [x]	Length - Overall [x]	Return Loss	Bend Radius [radius]	2nd Connector	Type	1st Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Features	Fiber Type	Color - Cable	Color - Connectors	Length - Overall	Length - Overall
Panduit Corp F92ELQ1Q1SNM034	-10 °C	60 °C	Twin Zip	0.25 dB	LSZH	34 m	111.5 ft	55 dB	16 mm	LC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord
Panduit Corp F92ELQ1SNSNM017	-10 °C	60 °C	Twin Zip	0.35 dB 0.5 dB	LSZH	17 m	55.8 ft	55 dB	16 mm	SC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord	9/125	Yellow	Blue
Panduit Corp F92ELQ1SNSNM034	-10 °C	60 °C	Twin Zip	0.35 dB 0.5 dB	LSZH	34 m	111.5 ft	55 dB	16 mm	SC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord	9/125	Yellow	Blue
Panduit Corp F92ELQ1SNSNM050	-10 °C	60 °C	Twin Zip	0.35 dB 0.5 dB	LSZH			55 dB	16 mm	SC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord	9/125	Yellow	Blue	50 m	164 ft
Panduit Corp F92ELQ1SNSNM022	-10 °C	60 °C	Twin Zip	0.35 dB 0.5 dB	LSZH	22 m	72.2 ft	55 dB	16 mm	SC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord	9/125	Yellow	Blue
Panduit Corp F92ELQ1Q1SNM048	-10 °C	60 °C	Twin Zip	0.25 dB	LSZH	48 m	157.5 ft	55 dB	16 mm	LC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord
Panduit Corp F92ELQ1SNSNM029	-10 °C	60 °C	Twin Zip	0.35 dB 0.5 dB	LSZH			55 dB	16 mm	SC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord	9/125	Yellow	Blue
Panduit Corp F92ELQ1Q1SNM022	-10 °C	60 °C	Twin Zip	0.25 dB	LSZH	22 m	72.2 ft	55 dB	16 mm	LC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord
Panduit Corp F92ELQ1Q1SNM013	-10 °C	60 °C	Twin Zip	0.25 dB	LSZH	13 m	42.7 ft	55 dB	16 mm	LC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord

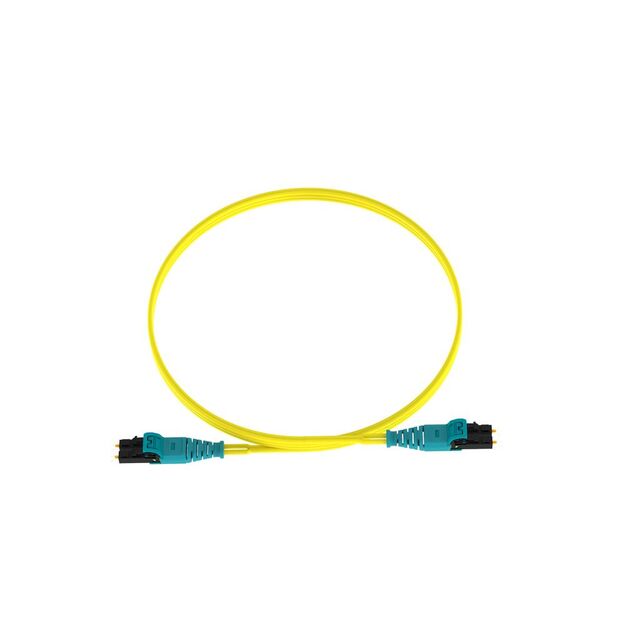

Panduit Corp F92ELQ1Q1SNM001	-10 °C	60 °C	Twin Zip	0.25 dB	LSZH	1 m	3.3 ft	55 dB	16 mm	LC Duplex	Duplex OS2 Singlemode	LC Duplex	0.06 in	1.6 mm	Low Smoke Zipcord
