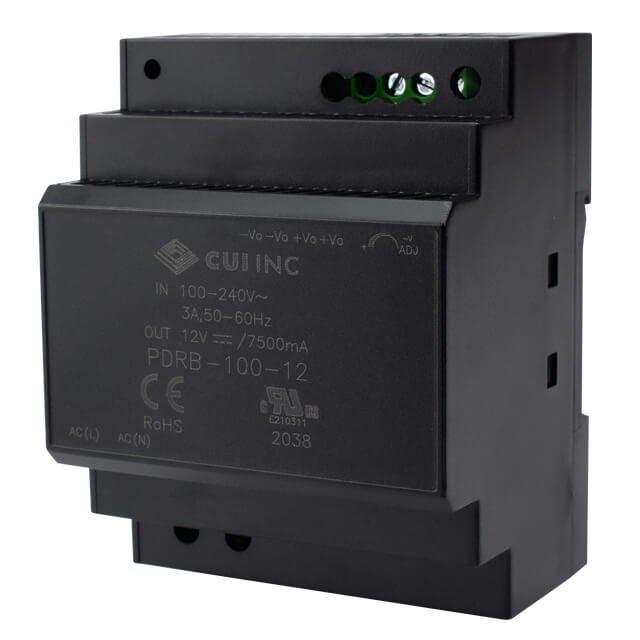

PDRB-100 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DIN RAIL SUPPLY 12V 90W

Part	Current - Output (Max) [Max]	Standard Number	Efficiency	Number of Outputs	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 1	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Approval Agency	Applications	Input Type	DC Voltage - Input (Max) [Max]	Power (Watts)
CUI Inc. PDRB-100-12	7.5 A	62368-1	88 %	1	120 V	4000 V	12 V	264 VAC	85 VAC	92.7 mm	3.65 in	2.76 "	70 mm	58 mm	2.28 "	Adjustable Output Universal Input	CE cURus	ITE (Commercial)	AC or DC	370 V	90 W
CUI Inc. PDRB-100-48	2.1 A	62368-1	90 %	1	120 V	4000 V	48 V	264 VAC	85 VAC	92.7 mm	3.65 in	2.76 "	70 mm	58 mm	2.28 "	Adjustable Output Universal Input	CE cURus	ITE (Commercial)	AC or DC	370 V	101 W
CUI Inc. PDRB-100-15	6.5 A	62368-1	89 %	1	120 V	4000 V	15 V	264 VAC	85 VAC	92.7 mm	3.65 in	2.76 "	70 mm	58 mm	2.28 "	Adjustable Output Universal Input	CE cURus	ITE (Commercial)	AC or DC	370 V	98 W
CUI Inc. PDRB-100-24	4.2 A	62368-1	90 %	1	120 V	4000 V	24 V	264 VAC	85 VAC	92.7 mm	3.65 in	2.76 "	70 mm	58 mm	2.28 "	Adjustable Output Universal Input	CE cURus	ITE (Commercial)	AC or DC	370 V	101 W
