CLS-RR11 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
SWITCH ROCKER SPST 25A 12V
| Part | Termination Style | Voltage Rating - DC | Actuator Type | Mounting Type | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Switch Function | Circuit | Illumination Type, Color | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | 12 V | Concave (Curved) - Illuminated | Panel Mount Snap-In | Black | 28.7 mm | 11.6 mm | No Marking | On-Off | SPST | LED Red | 25 A | ||

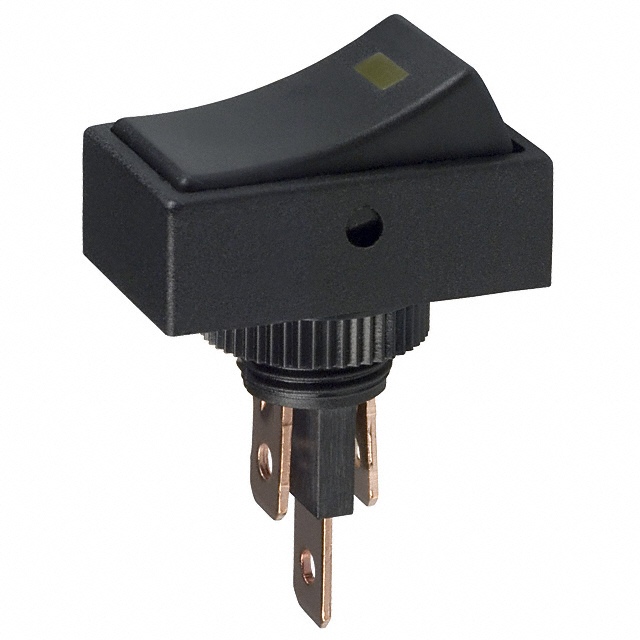

 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | 12 V | Concave (Curved) - Illuminated | Panel Mount Threaded Body with Nut | Black | No Marking | On-Off | SPST | LED Yellow | 25 A | 12 mm | |||
 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | 12 V | Concave (Standard V) - Illuminated | Panel Mount Snap-In | Black | 28.7 mm | 11.6 mm | No Marking | On-Off | SPST | Green LED | 20 A | ||

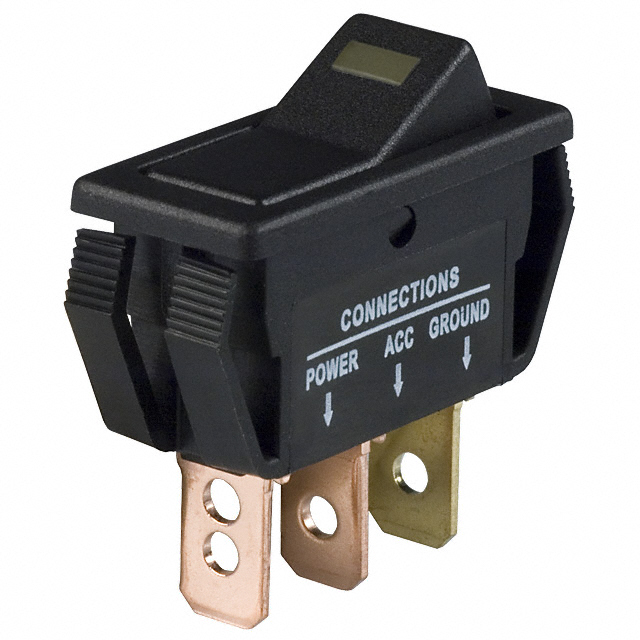

 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | 12 V | Concave (Standard V) - Illuminated | Panel Mount Snap-In | Black | 28.7 mm | 11.6 mm | No Marking | On-Off | SPST | LED Yellow | 20 A | ||

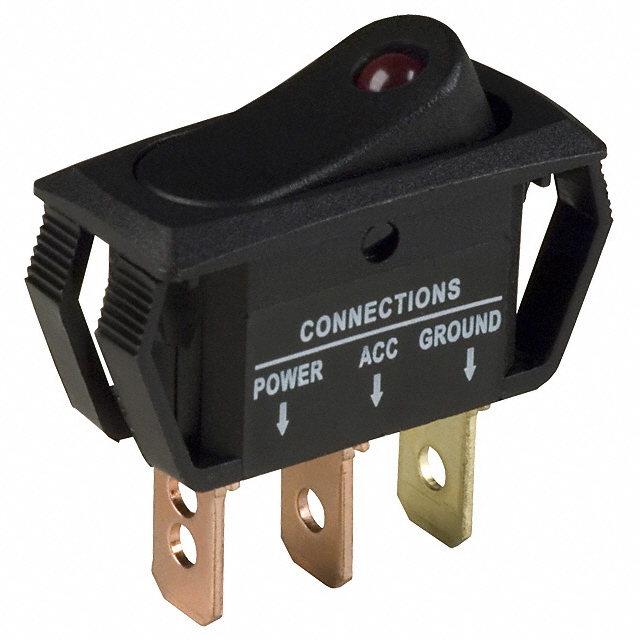

 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | 12 V | Concave (Standard V) - Illuminated | Panel Mount Snap-In | Black | 28.7 mm | 11.6 mm | No Marking | On-Off | SPST | LED Red | 20 A | ||
 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | 12 V | Concave (Standard V) - Illuminated | Panel Mount Snap-In | Black | 28.7 mm | 11.6 mm | No Marking | On-Off | SPST | Blue LED | 20 A | ||
 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | Panel Mount Snap-In | Black | 27.8 mm | 13.8 mm | No Marking | On-Off | SPST | Green LED | 16 A | 125 V | ||
 Lumex Opto/Components Inc. | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | Panel Mount Snap-In | Black | 27.8 mm | 13.8 mm | No Marking | On-Off | SPST | LED Red | 16 A | 125 V | ||

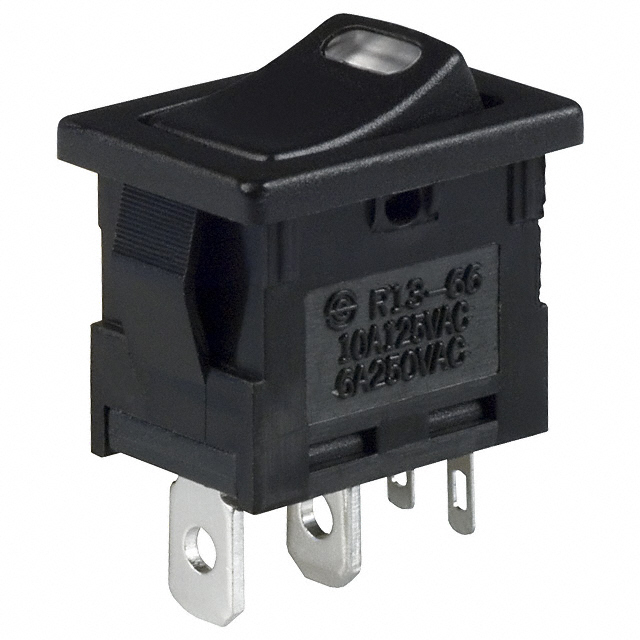

 Lumex Opto/Components Inc. | Quick Connect | Concave (Curved) - Illuminated | Panel Mount Snap-In | Black | 19.4 mm | 13 mm | No Marking | On-Off | SPST | LED Red | 10 A | 125 V | ||
 Lumex Opto/Components Inc. | Quick Connect | Concave (Curved) - Illuminated | Panel Mount Snap-In | Black | 19.4 mm | 13 mm | No Marking | On-Off | SPST | LED Yellow | 10 A | 125 V |
