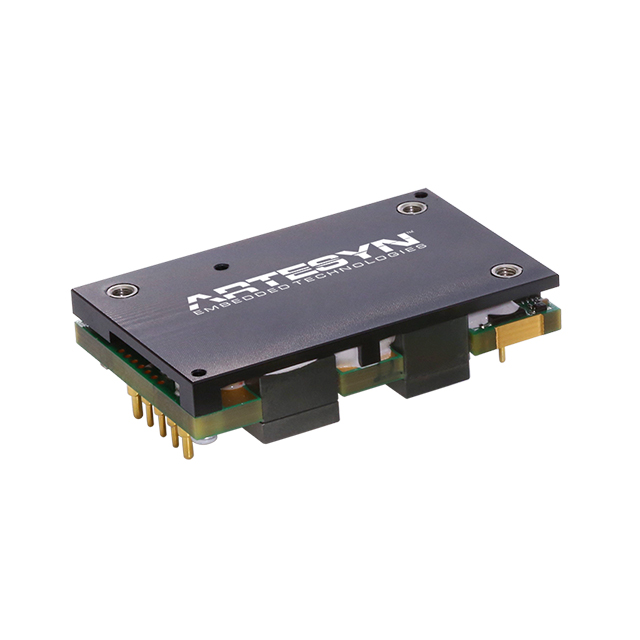

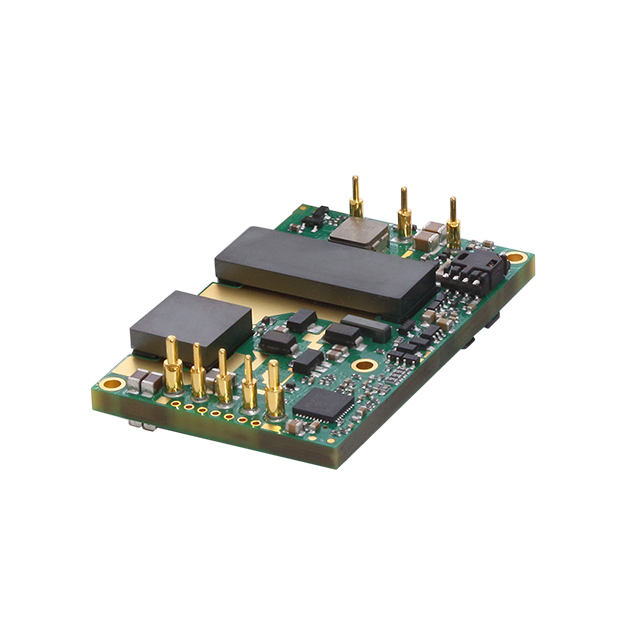

ADQ500 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 12V 500W
| Part | Current - Output (Max) | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 | Mounting Type | Number of Outputs | Type | Package / Case | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 42 A | OCP OTP OVP Remote On/Off UVLO | 13.3 mm | 0.52 in | 53.3 mm | 1.45 in | 36.8 mm | 2.1 in | 500 W | 1.5 kV | 85 °C | -40 C | ITE (Commercial) | 12 V | Through Hole | 1 | Isolated Module | 1/4 Brick 15-DIP Module | 75 V | 36 V | 94.5 % |
 ARTESYN / Advanced Energy | 42 A | OCP OTP OVP Remote On/Off UVLO | 500 W | 1.5 kV | 85 °C | -40 C | ITE (Commercial) | 12 V | Through Hole | 1 | Isolated Module | 1/4 Brick 15-DIP Module | 75 V | 36 V | 94.5 % | ||||||
ARTESYN / Advanced Energy | 42 A | OCP OTP OVP Remote On/Off UVLO | 500 W | 1.5 kV | 85 °C | -40 C | ITE (Commercial) | 12 V | Through Hole | 1 | Isolated Module | 1/4 Brick 15-DIP Module | 75 V | 36 V | 94.5 % |
