R31600 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

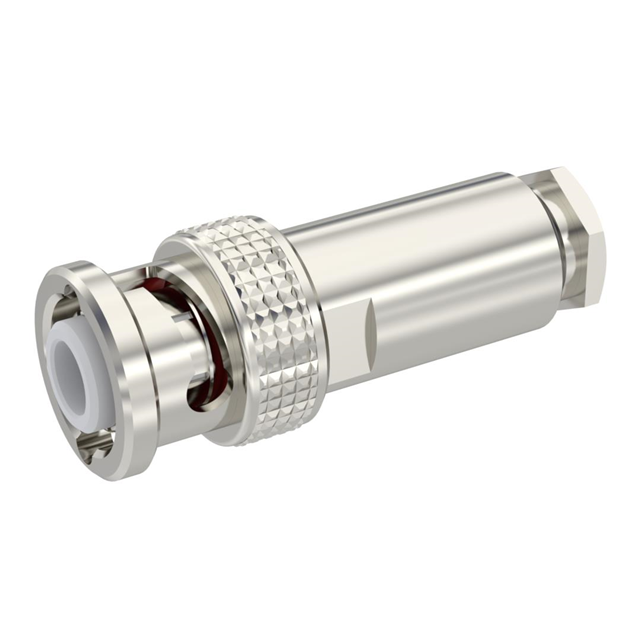

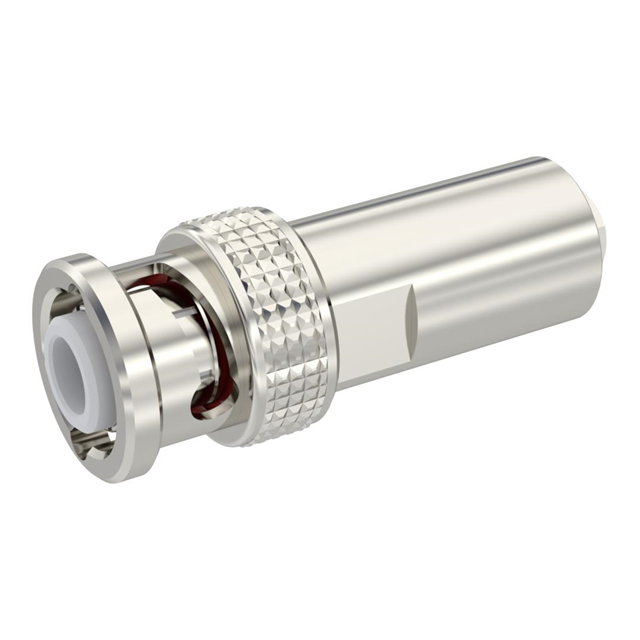

BNC HT-MHV / STRAIGHT PLUG CLAMP
| Part | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Connector Style | Number of Ports | Fastening Type | Connector Type | Center Contact Material | Housing Color | Impedance | Mounting Type | Cable Group | Contact Termination | Frequency - Max [Max] | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Nickel | Brass | Silver | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 500 | BNC | 1 | Bayonet Lock | Plug Male Pin | Brass | Silver | 50 Ohms | Free Hanging (In-Line) | 141 142 223 400 RG-58 | Solder | 2 GHz | Clamp |
 Radiall USA, Inc. | Nickel | Brass | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 500 | BNC | 1 | Bayonet Lock | Plug Male Pin | Brass | Silver | 50 Ohms | Free Hanging (In-Line) | 179 316 316 Double Braid RG-174 | Solder | 2 GHz | Clamp |
