VLP Series

Catalog

CONN PLUG HSG 2POS 6.20MM

Part	Note	Color	Number of Positions	Contact Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Mounting Type	Number of Rows	Pitch	Pitch	Contact Type	Connector Type	Number of Rows [custom]

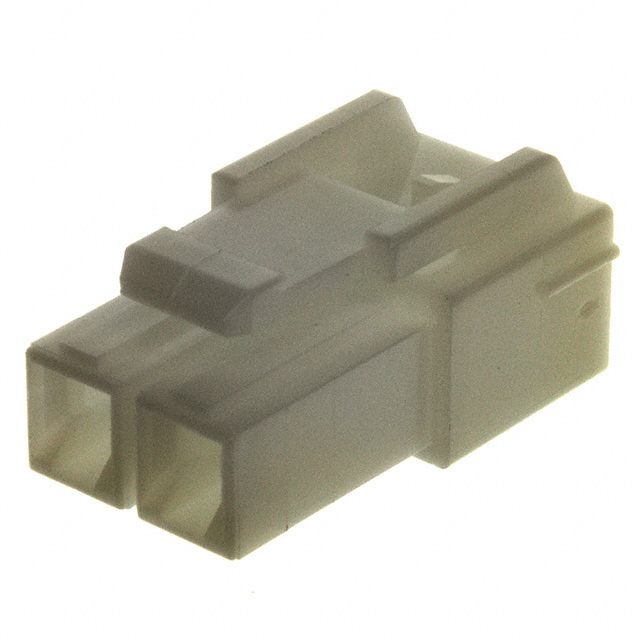

JST Sales America Inc. VLP-02V	Contacts Not Included	White	2	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	1	0.244 "	6.2 mm	Female Socket	Plug

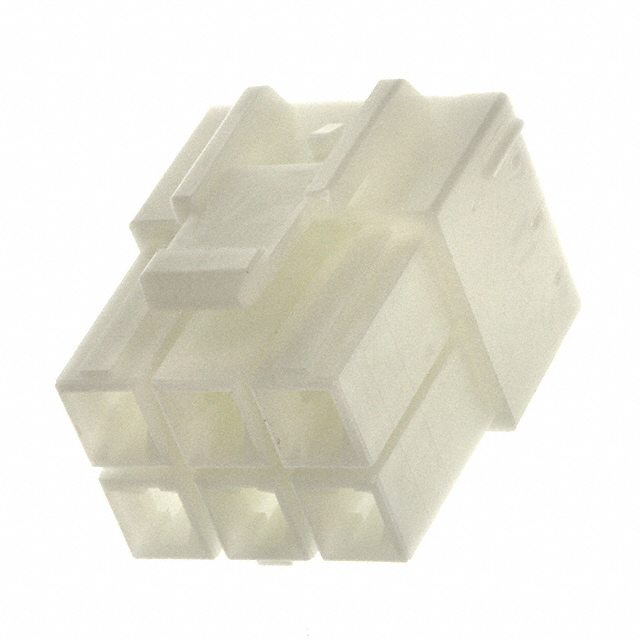

JST Sales America Inc. VLP-06V	Contacts Not Included	White	6	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	2

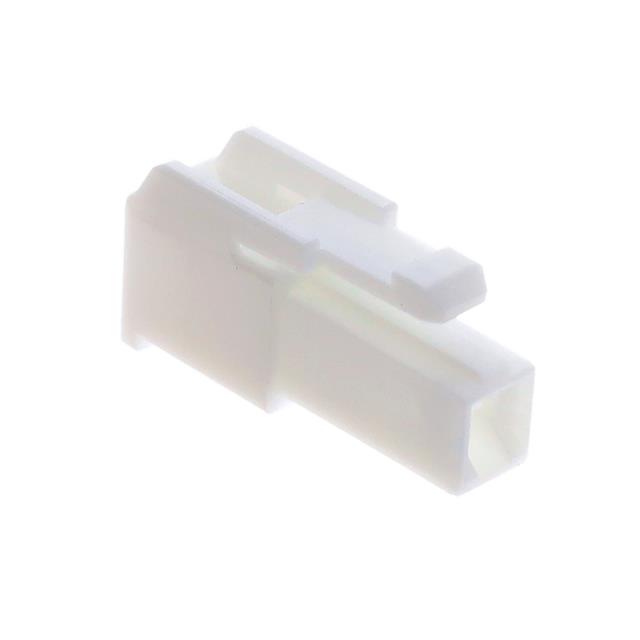

JST Sales America Inc. VLP-01V	Contacts Not Included	White	1	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	1			Female Socket	Plug

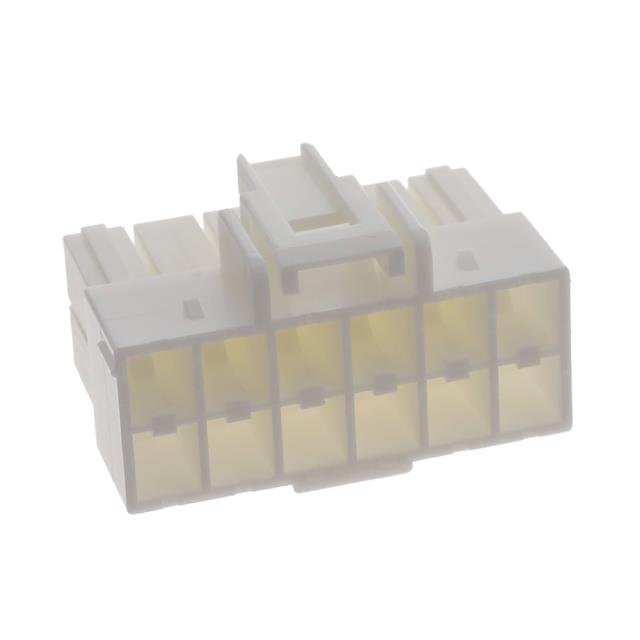

JST Sales America Inc. VLP-12V-1	Contacts Not Included	White	12	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	2
JST Sales America Inc. VLP-09V-1	Contacts Not Included	White	9	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	3

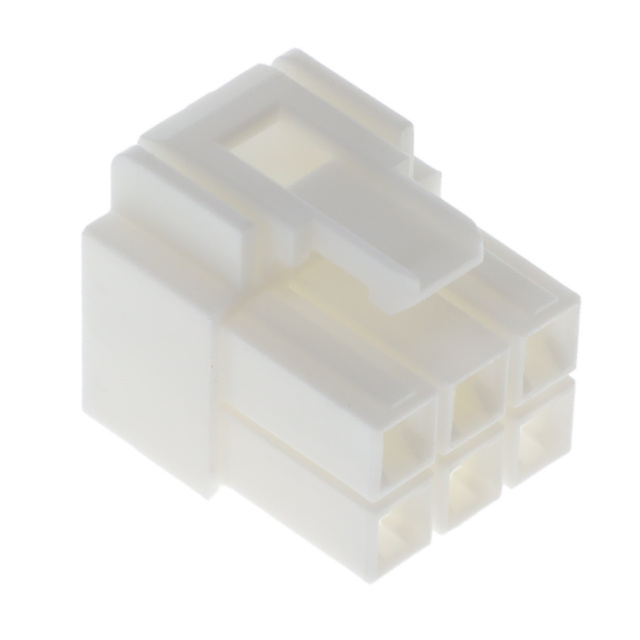

JST Sales America Inc. VLP-06V-1	Contacts Not Included	White	6	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	2
JST Sales America Inc. VLP-04V-1	Contacts Not Included	White	4	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	2

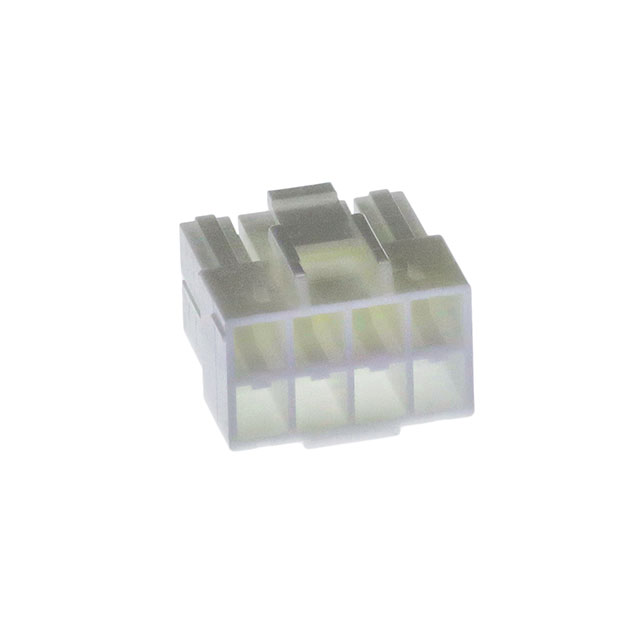

JST Sales America Inc. VLP-08V	Contacts Not Included	White	8	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	2

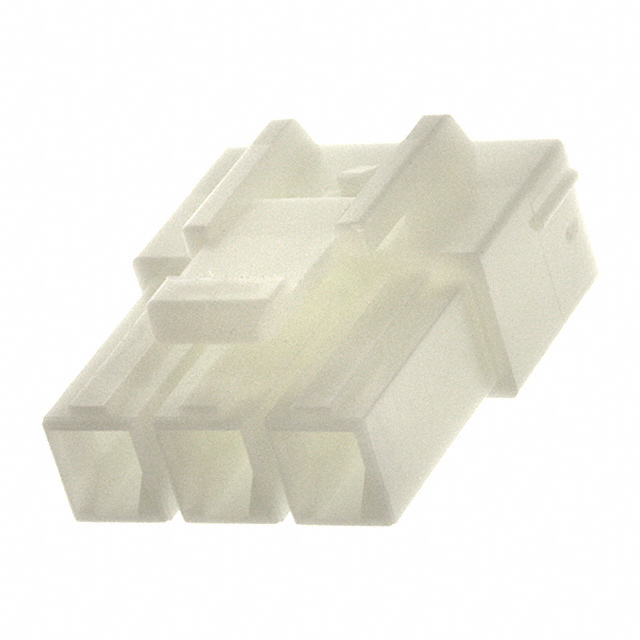

JST Sales America Inc. VLP-03V	Contacts Not Included	White		Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	1	0.244 "	6.2 mm	Female Socket	Plug

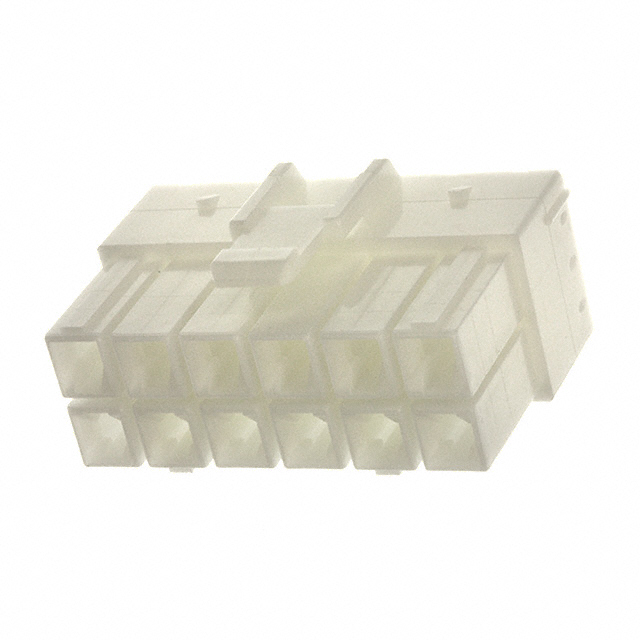

JST Sales America Inc. VLP-12V	Contacts Not Included	White	12	Crimp	Latch Lock	90 °C	-25 °C	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)		0.244 "	6.2 mm	Female Socket	Plug	2
