UC200 Series

Manufacturer: Quectel

Catalog

RF TXRX MODULE CELL SMD

Part	Package / Case	RF Family/Standard	Mounting Type	Frequency	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Protocol	Data Rate	Utilized IC / Part
Quectel UC200TGLAA-N06-SNNSA	Module	Cellular	Surface Mount	1.8 GHz 1.9 GHz 850 MHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps
Quectel UC200TEMAA-N06-SNNSA	Module	Cellular	Surface Mount	1.8 GHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps
Quectel UC200TEMAA-N06-MN0AA	Module	Cellular	Surface Mount	1.8 GHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps

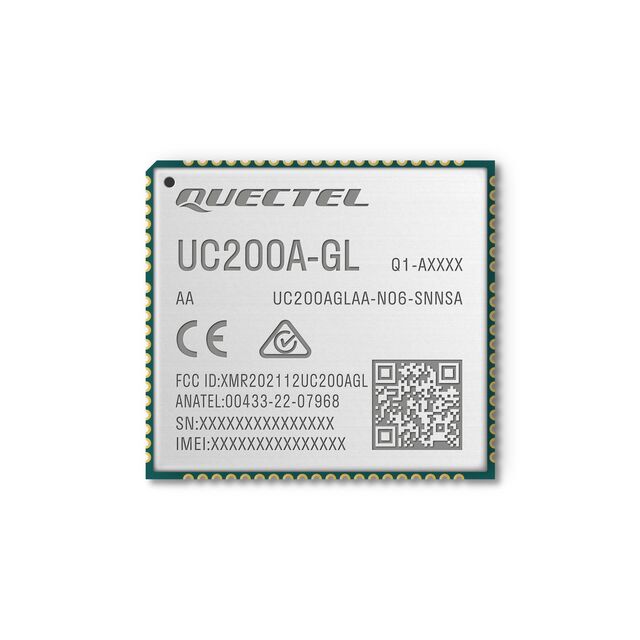

Quectel UC200AGLAA-N06-SNNSA													ASR1803S
Quectel UC200TEMAA-N06-TA0AA	Module	Cellular	Surface Mount	1.8 GHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps
Quectel UC200TGLAA-N06-MN0SA	Module	Cellular	Surface Mount	1.8 GHz 1.9 GHz 850 MHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps
Quectel UC200TEMAA-N06-HX	Module	Cellular	Surface Mount	1.8 GHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps
Quectel UC200TGLAA-N06-MN0AA	Module	Cellular	Surface Mount	1.8 GHz 1.9 GHz 850 MHz 900 MHz	ADC I2C PCM SDIO UART USB	75 ░C	-35 °C	3.4 V	4.5 V	Antenna Not Included	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	21 Mbps
