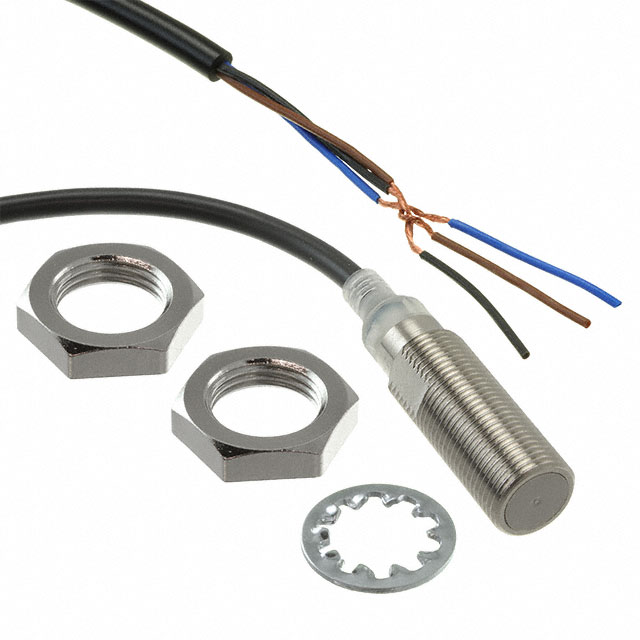

E2E-X2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
SENSOR INDUCT 2MM PNP M8 NO
...
| Part | Shielding | Sensor Type | Ingress Protection | Package / Case | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Material - Body | Voltage - Supply [Max] | Voltage - Supply [Min] | Termination Style | Sensing Distance | Sensing Distance | Indicator [custom] | Response Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Shielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | PNP-NO 3-Wire | 70 °C | -25 °C | Stainless Steel | 30 VDC | 10 VDC | Cable Leads | 0.079 in | 2 mm | LED | |
Omron Electronics Inc-EMC Div | Shielded | Inductive | IP67 | Cylinder Threaded - M12 | NPN-NO 3-Wire | 85 °C | -40 °C | Nickel-Plated Brass | 40 VDC | 10 VDC | Cable Leads | 0.079 in | 2 mm | LED | |
Omron Electronics Inc-EMC Div | Unshielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | PNP-NO 3-Wire | 85 °C | -40 °C | Stainless Steel | 30 VDC | 10 VDC | Connector | 0.079 in | 2 mm | LED | 1 kHz |
Omron Electronics Inc-EMC Div | Unshielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | PNP-NO 3-Wire | 85 °C | -40 °C | Stainless Steel | 30 VDC | 10 VDC | Connector | 0.079 in | 2 mm | LED | 1 kHz |
Omron Electronics Inc-EMC Div | Unshielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | PNP-NO 3-Wire | 85 °C | -40 °C | Stainless Steel | 30 VDC | 10 VDC | Connector | 0.079 in | 2 mm | LED | 1 kHz |
Omron Electronics Inc-EMC Div | Unshielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | PNP-NC 3-Wire | 70 °C | -25 °C | Stainless Steel | 30 VDC | 10 VDC | Cable with Connector | 0.079 in | 2 mm | LED | 1 kHz |
 Omron Electronics Inc-EMC Div | Shielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | NPN-NC 3-Wire | 85 °C | -40 °C | Stainless Steel | 30 VDC | 10 VDC | Connector | 0.079 in | 2 mm | LED | |
Omron Electronics Inc-EMC Div | Shielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | 3-Wire NPN-NC/NO | 85 °C | -40 °C | Stainless Steel | 30 VDC | 10 VDC | Connector | 0.079 in | 2 mm | LED | 2 kHz |
Omron Electronics Inc-EMC Div | Shielded | Inductive | IP67 IP69K | Cylinder Threaded - M8 | PNP-NO 3-Wire | 70 °C | -25 °C | Stainless Steel | 30 VDC | 10 VDC | Connector | 0.079 in | 2 mm | LED | |
Omron Electronics Inc-EMC Div | Shielded | Inductive | IP67 IP69K | Cylinder Threaded - M12 | PNP-NC 3-Wire | 85 °C | -40 °C | Nickel-Plated Brass | 30 VDC | 10 VDC | Cable Leads | 0.079 in | 2 mm | LED |
