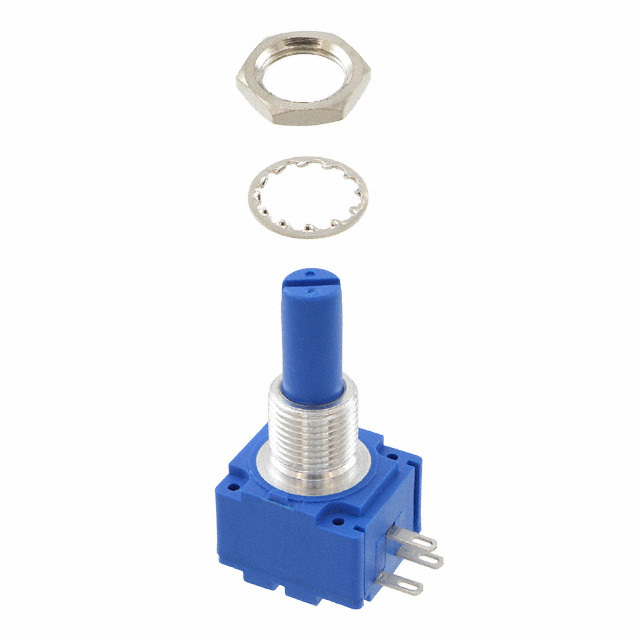

95A1A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 50K OHM 2W CERMET LINEAR
| Part | Adjustment Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistive Material | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) [custom] | Built in Switch | Actuator Type | Mounting Type | Temperature Coefficient | Taper | Tolerance | Number of Turns | Rotation | Bushing Thread | Termination Style | Number of Gangs | Power (Watts) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | User Defined | 6.35 mm | 0.25 in | Cermet | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.875 in | 22.23 mm | 50 kOhms | None | Slotted | Panel Mount | 150 ppm/°C | Linear | 10 % | 1 | 300 ░ | 3/8-32 | Solder Lug | 1 | 2 W | |
Bourns Inc. | User Defined | 6.35 mm | 0.25 in | Cermet | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.75 in | 19.05 mm | None | Slotted | Panel Mount | 150 ppm/°C | Linear | 10 % | 1 | 300 ░ | 3/8-32 | Solder Lug | 1 | 2 W | 10k | |
 Bourns Inc. | User Defined | 6.35 mm | 0.25 in | Conductive Plastic | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.75 in | 19.05 mm | None | Slotted | Panel Mount | 1000 ppm/°C | Linear | 20 % | 1 | 300 ░ | 3/8-32 | Solder Lug | 1 | 1 W | 10k | |
 Bourns Inc. | User Defined | 6.35 mm | 0.25 in | Conductive Plastic | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 0.875 in | 22.23 mm | None | Slotted | Panel Mount | 1000 ppm/°C | Linear | 20 % | 1 | 300 ░ | 3/8-32 | Solder Lug | 1 | 1 W | 100k |
