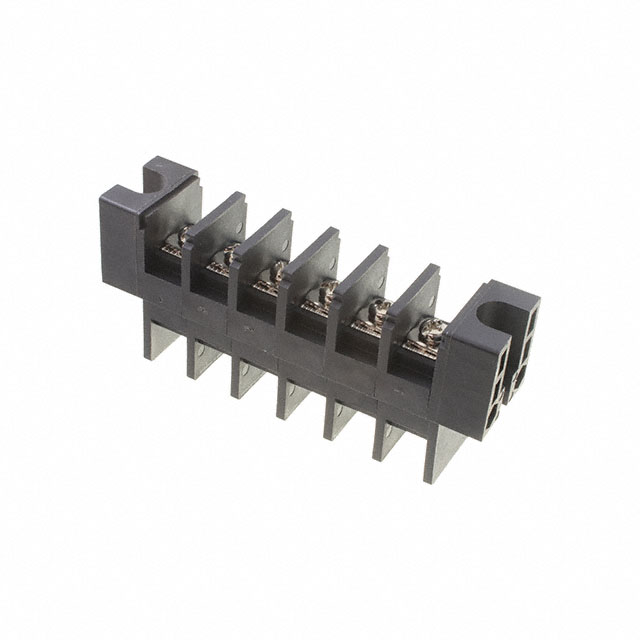

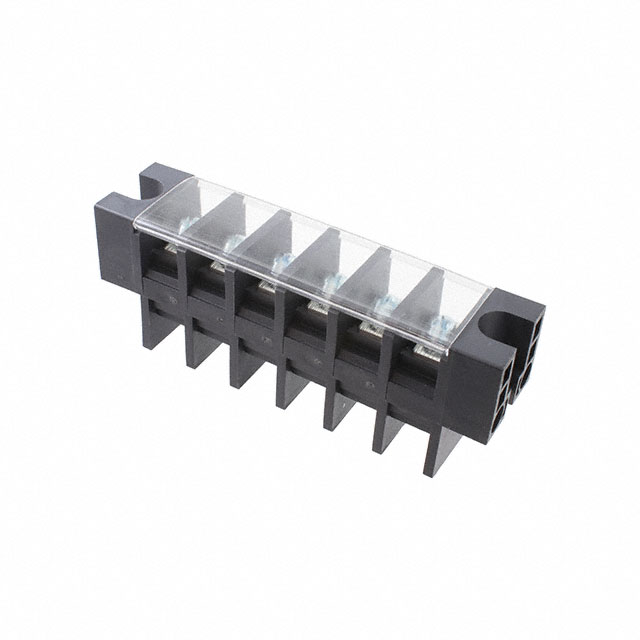

TBU-06 Series
Manufacturer: Adam Tech
Catalog
CONNECTOR: TERMINAL BLOCK; 65A; 600V; MOUNTING HOLES; TINNED; PBT
| Part | Current Rating (Amps) | Number of Circuits | Material - Insulation | Terminal Screw Material | Voltage Rating | Material Flammability Rating | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Number of Rows | Features | Terminal Block Type | Top Termination | Pitch [x] | Pitch [x] | Number of Wire Entries | Terminal Screw Finish | Barrier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 65 A | 6 | Polybutylene Terephthalate (PBT) | Steel | 600 V | UL94 V-0 | Black | Chassis Panel | -40 °C | 130 °C | Screw | 6 AWG | 14 AWG | 1 | Flange | Barrier Block | Screws | 0.63 in | 16 mm | 6 | Nickel | 2 Wall (Dual) |
 Adam Tech | 50 A | 6 | Polybutylene Terephthalate (PBT) | Steel | 600 V | UL94 V-0 | Black | Chassis Panel | -40 °C | 130 °C | Screw | 8 AWG | 22 AWG | 1 | Flange | Barrier Block | Screws with Captive Plate | 0.512 in | 13 mm | 6 | Nickel | 2 Wall (Dual) |
