UB225KK Series

Catalog

SWITCH PUSH DPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Illumination Voltage (Nominal)	Mounting Type	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Switch Function	Illumination Type, Color	Termination Style	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Features	Type	Actuator Marking	Voltage Rating - AC
NKK Switches UB225KKG016CF-1JB	200000 Cycles	1000000 Cycles	2.1 VDC 3.5 VDC	Panel Mount Snap-In	0.4 VA	Button Square	Clear	On-Mom	Green/Red LED	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	28 V	Sealed - Fully	Illuminated Standard	No Marking	28 V
NKK Switches UB225KKG015C-3JC	200000 Cycles	1000000 Cycles	1.85 VDC	Panel Mount Snap-In	0.4 VA	Button Square	Clear	On-Mom	LED Red	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	28 V	Sealed - Fully	Illuminated Standard	No Marking	28 V
NKK Switches UB225KKG015D-3JB	200000 Cycles	1000000 Cycles	2 VDC	Panel Mount Snap-In	0.4 VA	Button Square	Clear	On-Mom	Amber LED	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	28 V	Sealed - Fully	Illuminated Standard	No Marking	28 V
NKK Switches UB225KKG015C	200000 Cycles	1000000 Cycles	1.85 VDC	Panel Mount Snap-In	0.4 VA	Plunger for Cap		On-Mom	LED Red	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	28 V	Sealed - Fully	Illuminated Standard	No Marking	28 V

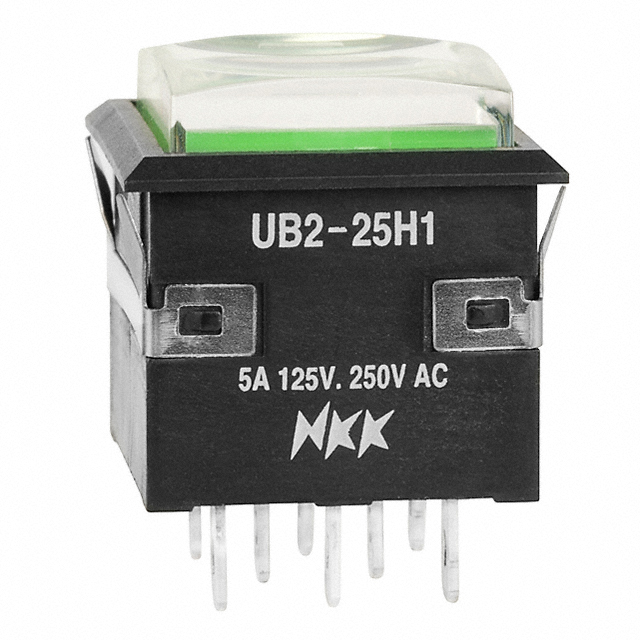

NKK Switches UB225KKW015F-1JF	10000 Cycles	1000000 Cycles	2.1 VDC	Panel Mount Snap-In	5 A	Button Square	Clear	On-Mom	Green LED	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	30 V	Sealed - Fully	Illuminated Standard	No Marking	125 V
NKK Switches UB225KKW016G-1JB	10000 Cycles	1000000 Cycles	2.9 VDC	Panel Mount Snap-In	5 A	Button Square	Clear	On-Mom	Blue LED	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	30 V	Sealed - Fully	Illuminated Standard	No Marking	125 V
NKK Switches UB225KKG015F-1JB	200000 Cycles	1000000 Cycles	2.1 VDC	Panel Mount Snap-In	0.4 VA	Button Square	Clear	On-Mom	Green LED	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	28 V	Sealed - Fully	Illuminated Standard	No Marking	28 V
NKK Switches UB225KKW015D-1JB	10000 Cycles	1000000 Cycles	2 VDC	Panel Mount Snap-In	5 A	Button Square	Clear	On-Mom	Amber LED	Solder Lug	DPDT	17.4 mm	17.4 mm	50 °C	-25 °C	30 V	Sealed - Fully	Illuminated Standard	No Marking	125 V
NKK Switches UB225KKG01N-5C	200000 Cycles	1000000 Cycles		Panel Mount Snap-In	0.4 VA	Button Square	Red	On-Mom		Solder Lug	DPDT	17.4 mm	17.4 mm	70 °C	-25 °C	28 V	Sealed - Fully	Standard	No Marking	28 V
NKK Switches UB225KKG01N	200000 Cycles	1000000 Cycles		Panel Mount Snap-In	0.4 VA	Plunger for Cap		On-Mom		Solder Lug	DPDT	17.4 mm	17.4 mm	70 °C	-25 °C	28 V	Sealed - Fully	Standard	No Marking	28 V
