HI1-0548 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

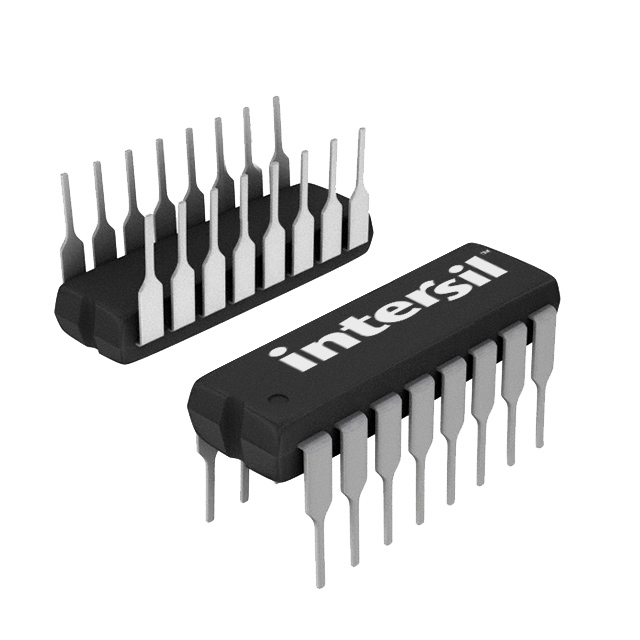

IC MUX 8:1 1.8KOHM 16CERDIP
| Part | Mounting Type | Number of Circuits | Switch Time (Ton, Toff) (Max) | On-State Resistance (Max) [Max] | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Current - Leakage (IS(off)) (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Dual (V±) [Max] | Voltage - Supply, Dual (V±) [Min] | Multiplexer/Demultiplexer Circuit | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | Through Hole | 1 | 300 ns | 1.8 kOhm | 16-CERDIP | 0 °C | 75 °C | 30 pA | 126 Ohm | 15 V | -15 V | 8:1 | 0.3 in 7.62 mm | 16-CDIP |
