IP406 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
TVS DIODE 9CSP
| Part | Package / Case | Package Name | Mounting Type | Package Width | Package Length | Size / Dimension Width | Size / Dimension Length | Height | Type | Operating Temperature (Max) | Operating Temperature (Min) | Resistance - Channel (Ohms) (Channel 1) | Resistance - Channel (Ohms) (Channel 4) | Resistance - Channel (Ohms) (Channel 3) | Resistance - Channel (Ohms) (Channel 2) | Resistance | Capacitance | Technology | Number of Channels | Filter Order | Applications | ESD Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 9-UFBGA WLCSP | 9-CSP | Surface Mount | |||||||||||||||||||
 NXP USA Inc. | 18-XFBGA CSPBGA | 18-CSP | Surface Mount | 1.61 mm | 1.96 mm | |||||||||||||||||
NXP USA Inc. | ||||||||||||||||||||||

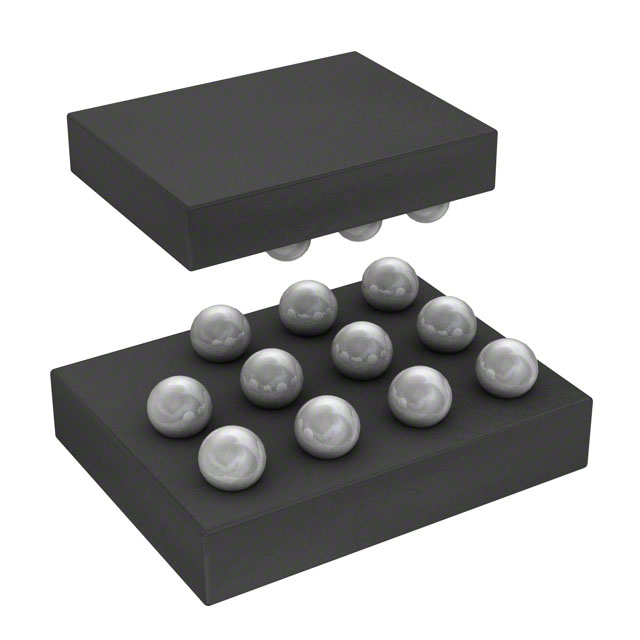

 NXP USA Inc. | 11-WFBGA WLCSP | Surface Mount | 0.058 in | 0.077 in | 0.026 in | Low Pass | 85 °C | -30 °C | 33 Ohm | 15 kOhm | 17 kOhm | 1.3 kOhm | 33 Ohms | 27 pF | RC (Pi) | 2 | 2 | USB | Yes | |||
NXP USA Inc. | 11-WFBGA WLCSP | Surface Mount | 0.058 in | 0.077 in | 0.026 in | Low Pass | 85 °C | -30 °C | 33 Ohm | 15 kOhm | 17 kOhm | 1.3 kOhm | 33 Ohms | 27 pF | RC (Pi) | 2 | 2 | USB | Yes |
