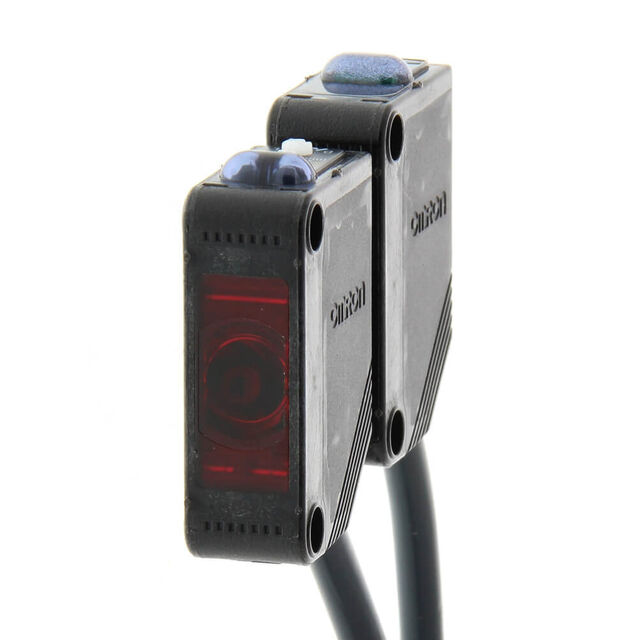

E3Z-T81 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SENSOR THROUGH-BEAM 15M PNP
| Part | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Connection Method | Sensing Method | Response Time | Sensing Distance | Sensing Distance | Voltage - Supply [Min] | Voltage - Supply [Max] | Light Source | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 590.551 in | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP - Dark-ON/Light-ON - Selectable |
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP Transistor | |
Omron Automation and Safety | ||||||||||||
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP Transistor | |
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 590.551 in | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP - Dark-ON/Light-ON - Selectable |
Omron Automation and Safety | ||||||||||||
Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP Transistor | |
 Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP Transistor | |
 Omron Automation and Safety | IEC IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP Transistor | |
Omron Automation and Safety | IEC IEC IP67 IP67 IP69K | 55 °C | -25 °C | Cable | Through-Beam | 1 ms | 590.551 in | 15 m | 12 VDC | 24 V | Infrared (870nm) | PNP - Dark-ON/Light-ON - Selectable |
