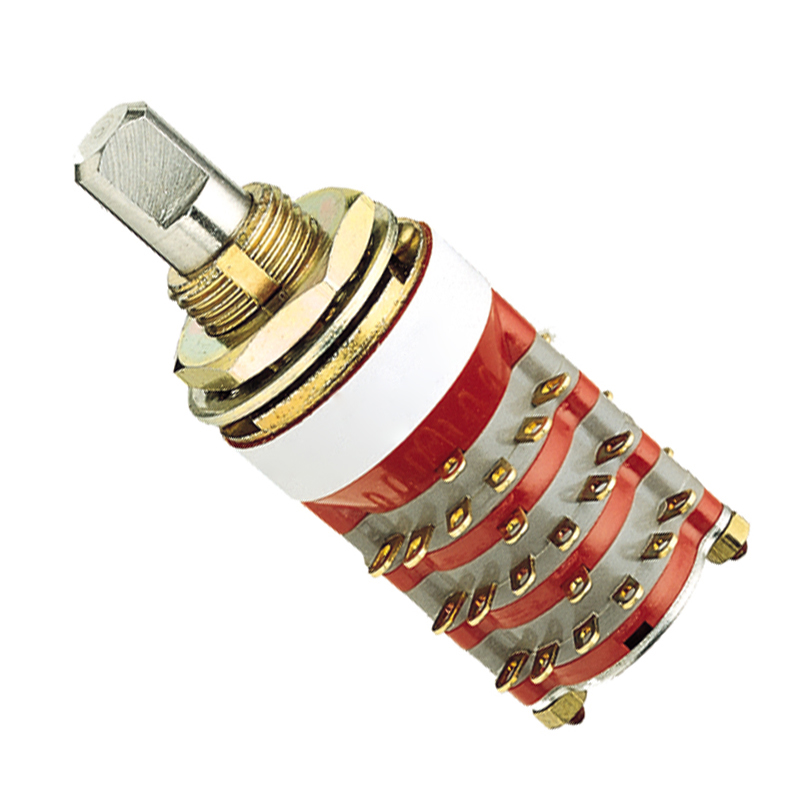

71E30 Series

Catalog

SWITCH ROTARY 3POS 250MA 115V

Part	Angle of Throw	Voltage Rating - DC	Current Rating (Amps)	Number of Decks	Termination Style	Actuator Length [x]	Contact Material	Contact Timing	Number of Poles per Deck	Voltage Rating - AC	Depth Behind Panel [z]	Circuit per Deck	Mounting Type	Actuator Type	Index Stops	Number of Positions	Depth Behind Panel	Depth Behind Panel [custom]	Number of Decks [custom]
Grayhill Inc. 71E30-02-1-03S	30 °	30 V	250 mA	2	Solder Lug	17 mm	Silver Alloy	Shorting (MBB)	1	115 V	27.87 mm	SP3T	Panel Mount	Round	Fixed
Grayhill Inc. 71E30-04-2-06S	30 °	30 V	250 mA	4	Solder Lug	17 mm	Silver Alloy	Shorting (MBB)	2	115 V	35.94 mm	DP6T	Panel Mount	Round	Fixed	6
Grayhill Inc. 71E30-02-1-09S	30 °	30 V	250 mA	2	Solder Lug	17 mm	Silver Alloy	Shorting (MBB)	1	115 V		SP9T	Panel Mount	Round	Fixed	9	24.87 mm
Grayhill Inc. 71E30-03-4-03N	30 °	30 V	250 mA	3	Solder Lug	17 mm	Silver Alloy	Non-Shorting (BBM)		115 V		4P3T	Panel Mount	Round	Fixed			30.4 mm
Grayhill Inc. 71E30-02-2-05S	30 °	30 V	250 mA	2	Solder Lug	17 mm	Silver Alloy	Shorting (MBB)	2	115 V	27.87 mm	DP5T	Panel Mount	Round	Fixed	5
Grayhill Inc. 71E30-04-1-12N-F	30 °	30 V	250 mA	4	Solder Lug	17 mm	Silver Alloy	Non-Shorting (BBM)	1	115 V	35.94 mm	SP12T	Panel Mount	Round	Fixed	12
Grayhill Inc. 71E30-02-2-06N	30 °	30 V	250 mA	2	Solder Lug	17 mm	Silver Alloy	Non-Shorting (BBM)	2	115 V		DP6T	Panel Mount	Round	Fixed	6	24.87 mm
Grayhill Inc. 71E30-01-2-03N	30 °	30 V	250 mA		Solder Lug	17 mm	Silver Alloy	Non-Shorting (BBM)	2	115 V	19.33 mm	DP3T	Panel Mount	Round	Fixed				1
Grayhill Inc. 71E30-01-1-12S-F	30 °	30 V	250 mA		Solder Lug	17 mm	Silver Alloy	Shorting (MBB)	1	115 V	19.33 mm	SP12T	Panel Mount	Round	Fixed	12			1
Grayhill Inc. 71E30-04-2-06N	30 °	30 V	250 mA	4	Solder Lug	17 mm	Silver Alloy	Non-Shorting (BBM)	2	115 V	35.94 mm	DP6T	Panel Mount	Round	Fixed	6
