T 3375 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG FMALE 5P SOLDER CUP

Part	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish - Mating	Connector Type	Features	Shell Material	Number of Positions	Voltage Rating	Shell Size - Insert	Current Rating (Amps)	Ingress Protection	Orientation	Insert Material	Contact Shape	Contact Type	Material Flammability Rating	Type	Housing Color	Note	Contact Size	Shielding	Color	Shell Finish
Amphenol Tuchel Industrial T 3375 991	Free Hanging (In-Line)	Bayonet Lock	-40 C	100 °C	Plastic	Silver	Plug Female Sockets	Strain Relief	Plastic	5	250 V	M16-5	7 A	IP40	Keyed

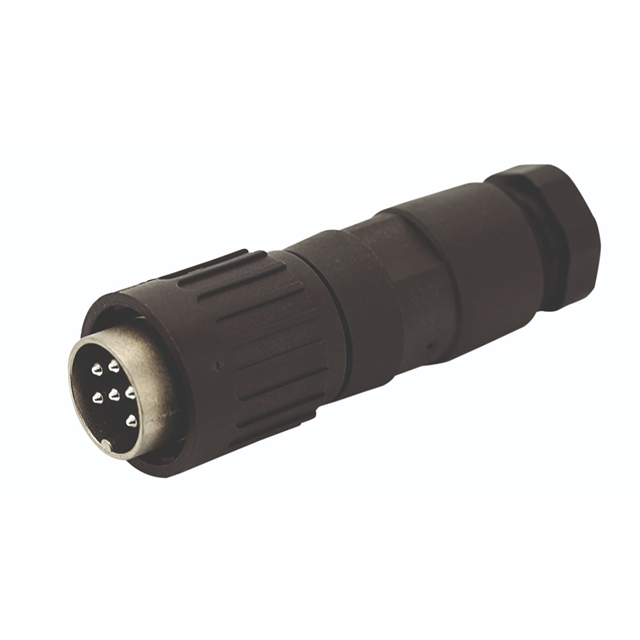

Amphenol Tuchel Industrial T 3375 551	Free Hanging (In-Line)	Bayonet Lock	-40 C	100 °C			Plug Housing	Cable Clamp Coupling Nut Strain Relief	Plastic	5		M16-5		IP40	Keyed	Thermoplastic	Circular	Crimp	UL94 V-0	For Female Sockets	Black	Contacts Not Included	1.5 mm	Unshielded
Amphenol Tuchel Industrial T 3375 951	Free Hanging (In-Line)	Bayonet Lock	-40 C	100 °C			Plug Housing	Coupling Nut Strain Relief	Plastic	5		M16-5		IP40	Keyed	Thermoplastic	Circular	Crimp	UL94 V-0	For Female Sockets	Black	Contacts Not Included	1.5 mm	Unshielded
Amphenol Tuchel Industrial T 3375 501	Free Hanging (In-Line)	Bayonet Lock	-40 C	100 °C	Plastic	Silver	Plug Female Sockets	Strain Relief	Plastic	5	250 V	M16-5	7 A	IP40	Keyed
Amphenol Tuchel Industrial T 3375 502	Free Hanging (In-Line)	Bayonet Lock	-40 C	100 °C	Plastic	Silver	Plug Female Sockets	Cable Clamp Strain Relief	Plastic	5	250 V	M16-5	7 A	IP40	Keyed

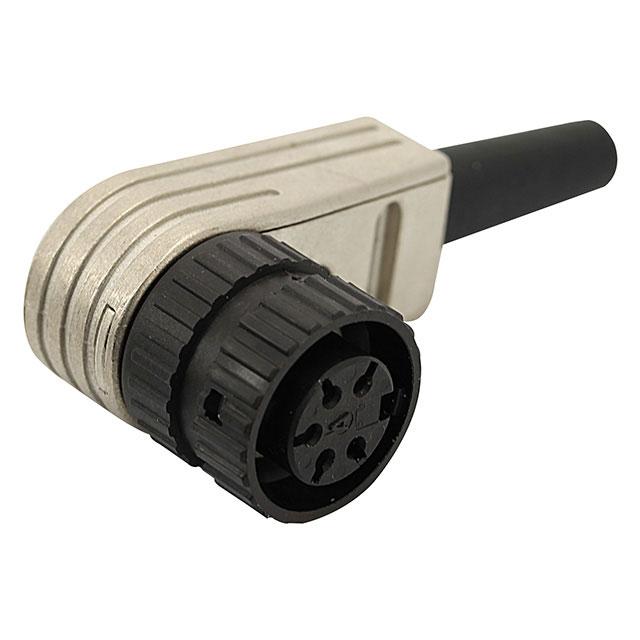

Amphenol Tuchel Industrial T 3375 005	Free Hanging (In-Line) Right Angle	Bayonet Lock	-40 C	100 °C	Metal	Silver	Plug Female Sockets	Strain Relief	Die Cast	5	250 V	M16-5	7 A	IP40	Keyed										Silver	Nickel
