33_N-Q50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

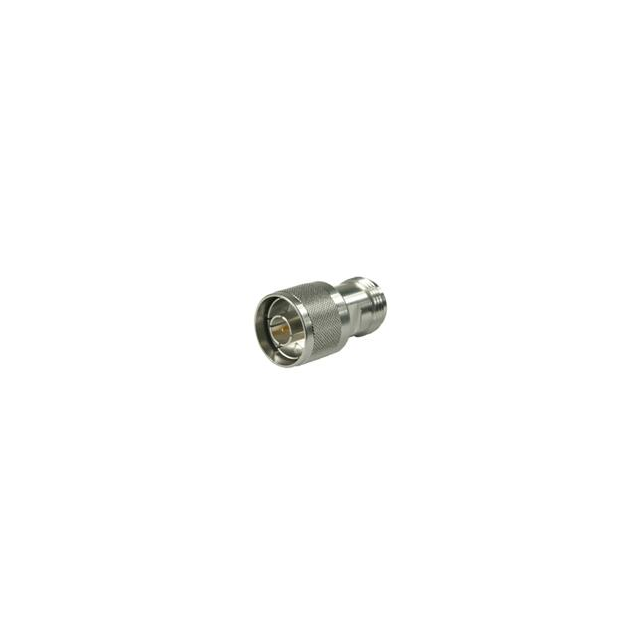

33_N-Q50-0-4/133_NE
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Finish | Dielectric Material | Mating Cycles | Center Contact Plating | Style | Conversion Type | Convert From (Adapter End) | Mounting Type | Adapter Series | Frequency - Max [Max] | Convert To (Adapter End) | Adapter Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Brass | -65 ░C | 165 °C | Beryllium Copper | White Bronze | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Straight | Same Series | Female Socket N Jack | Free Hanging (In-Line) | N to N | 11 GHz | N Plug Male Pin | Plug to Jack | 50 Ohms |
 Huber+Suhner, Inc. | Brass | -65 ░C | 165 °C | Beryllium Copper | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Straight | Same Series | Female Socket N Jack | Free Hanging (In-Line) | N to N | 11 GHz | N Plug Male Pin | Plug to Jack | 50 Ohms |
