QS18VP6 Series

Catalog

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18 SERIES, PROXIMITY DIFFUSE, 300 MM, PNP, 10 TO 30 VDC

Part	Ingress Protection	Output Configuration	Connection Method	Sensing Method	Response Time	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Adjustment Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length

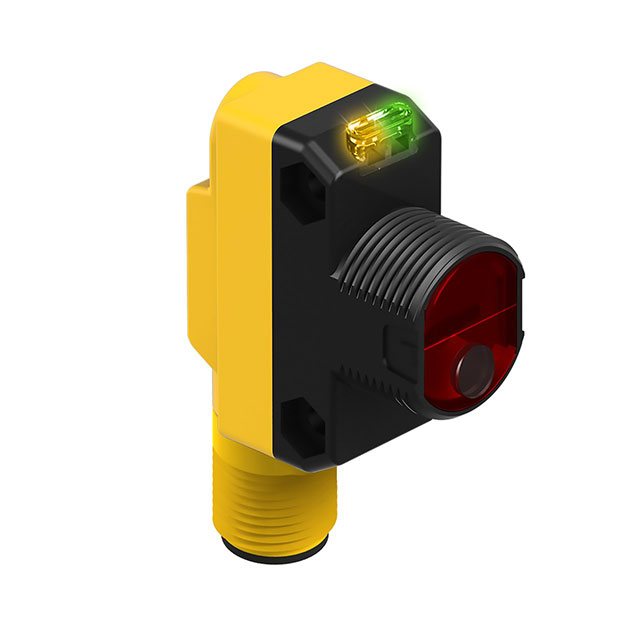

BANNER ENGINEERING QS18VP6LDQ8	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON	Connector	Diffuse	700 µs	30 cm	11.811 "	50 °C	-10 °C	LED	Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6LVQ5	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON	Connector	Retroreflective NonPolarized	600 µs	6.5 m	255.906 "	70 °C	-20 ░C	Red LED	Adjustable Potentiometer	10 VDC	30 VDC

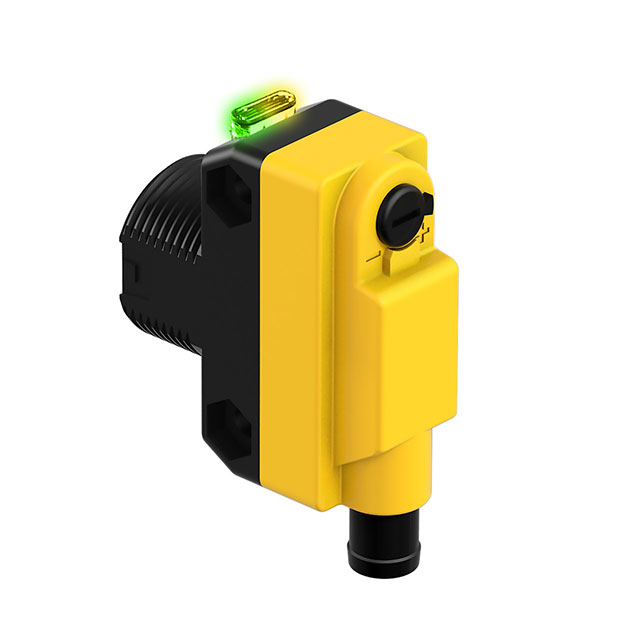

BANNER ENGINEERING QS18VP6LPQ9	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON	Connector	Polarized Retroreflective	600 µs	350 cm	137.795 in	70 °C	-20 ░C	Red LED	Adjustable Potentiometer	10 VDC	30 VDC
BANNER ENGINEERING QS18VP6AF250Q8	IP67 NEMA 6P	PNP - Dark-ON/Light-ON	Connector	Background Suppression	2.8 ms			60 °C	-40 C	Red (640nm)	Adjustable Potentiometer	10 VDC	30 VDC

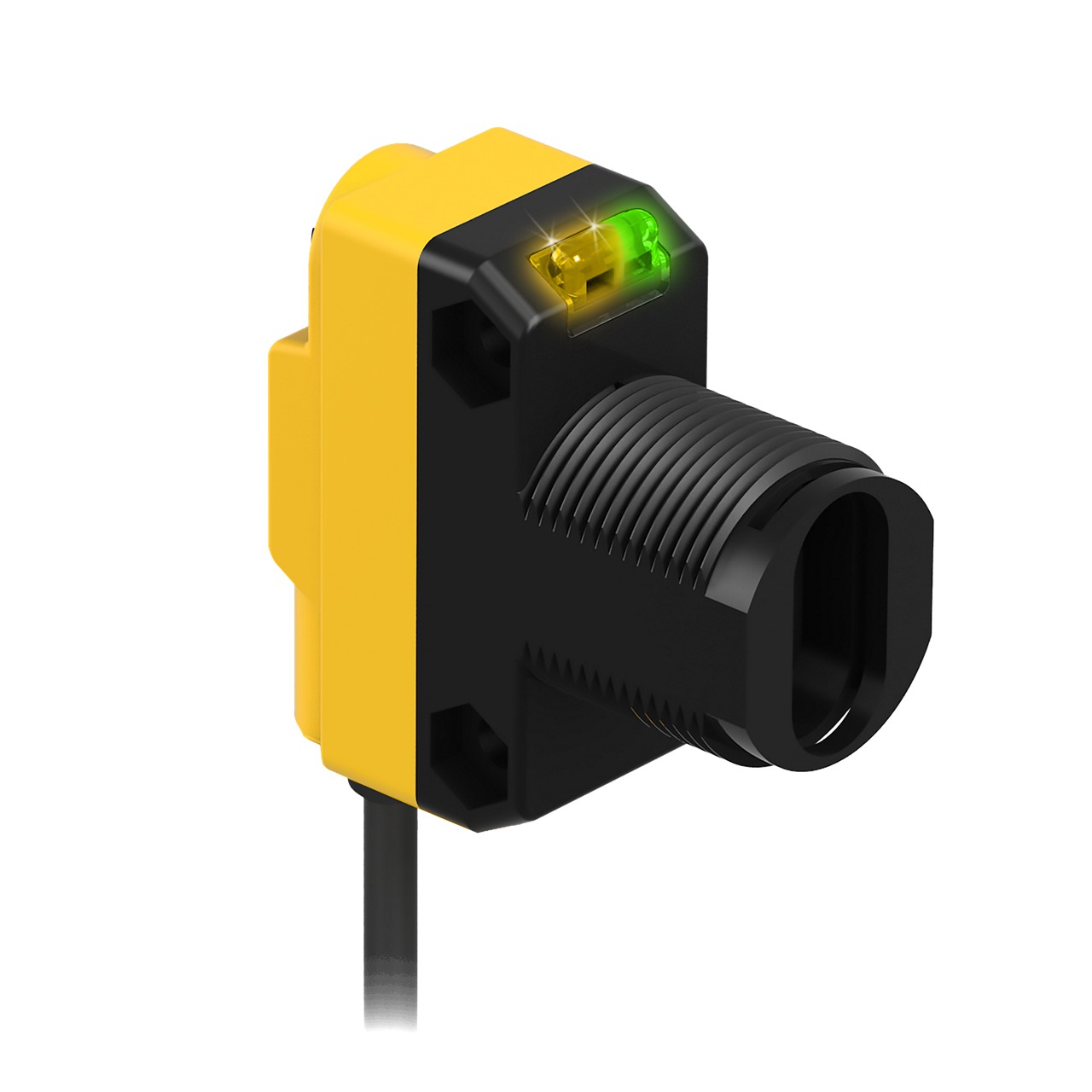

BANNER ENGINEERING QS18VP6FQ	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	Connector	Background Suppression	600 µs	5 cm	1.969 in	70 °C	-20 ░C		Adjustable Potentiometer	10 VDC	30 VDC

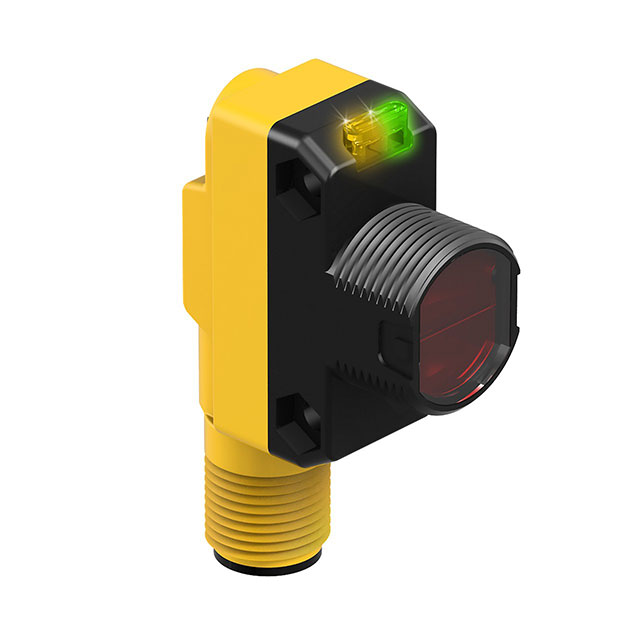

BANNER ENGINEERING QS18VP6LVQ8	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON	Connector	Retroreflective NonPolarized	600 µs	6.5 m	255.906 "	70 °C	-20 ░C	Red LED	Adjustable Potentiometer	10 VDC	30 VDC

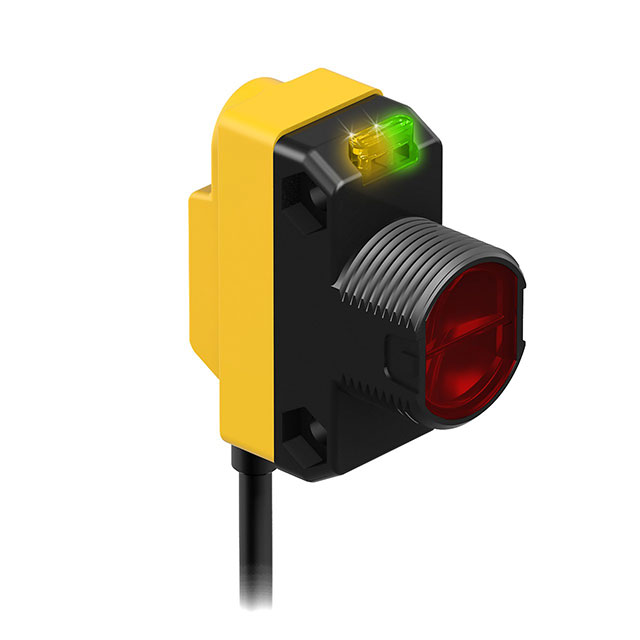

BANNER ENGINEERING QS18VP6FF50	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON	Cable	Background Suppression	850 µs	5 cm	1.969 in	70 °C	-20 ░C	LED		10 VDC	30 VDC	78.74 "	2 m

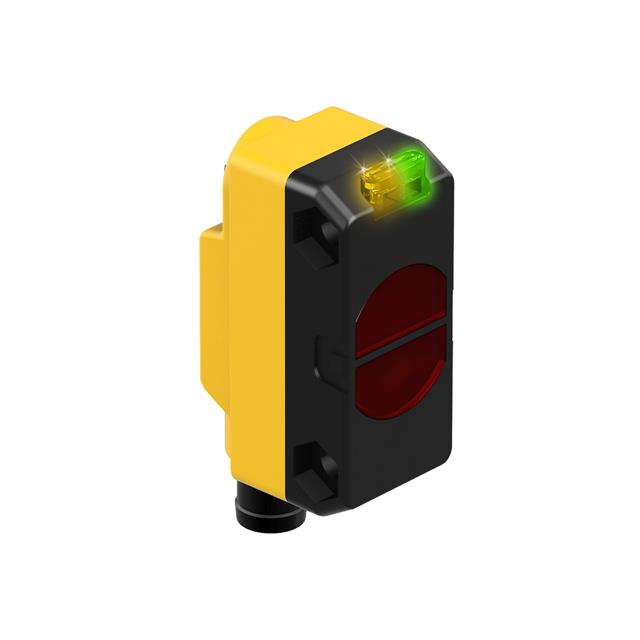

BANNER ENGINEERING QS18VP6WQ7	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	Connector	Diffuse	600 µs	10 cm	3.937 in	70 °C	-20 ░C	Infrared		10 VDC	30 VDC
BANNER ENGINEERING QS18VP6XLP	IEC IP67 NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	Cable	Polarized Retroreflective	400 µs	3 m	118.11 in	70 °C	-40 C	Red (625nm)	Adjustable Potentiometer	10 VDC	30 VDC	78.74 "	2 m

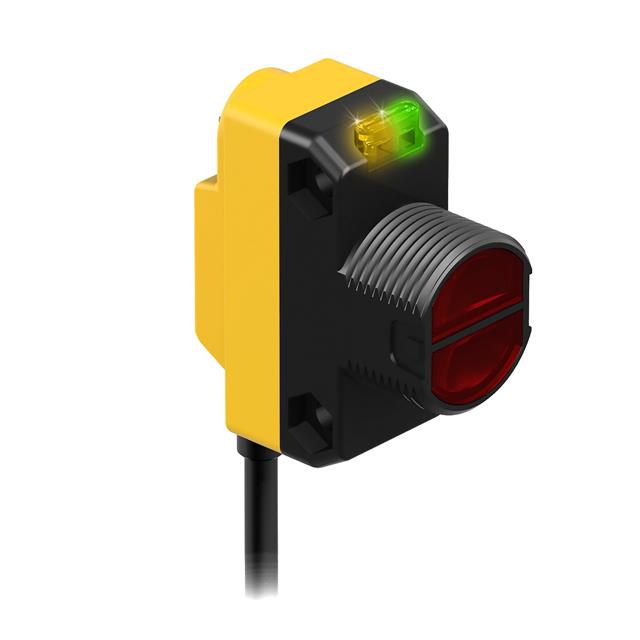

BANNER ENGINEERING QS18VP6DL	IEC IEC IP67 IP67 NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	Cable	Diffuse	850 µs	60 cm	23.622 "	70 °C	-20 ░C	Infrared (940nm)	Adjustable Potentiometer	10 VDC	30 VDC	78.74 "	2 m
