TL1L4 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

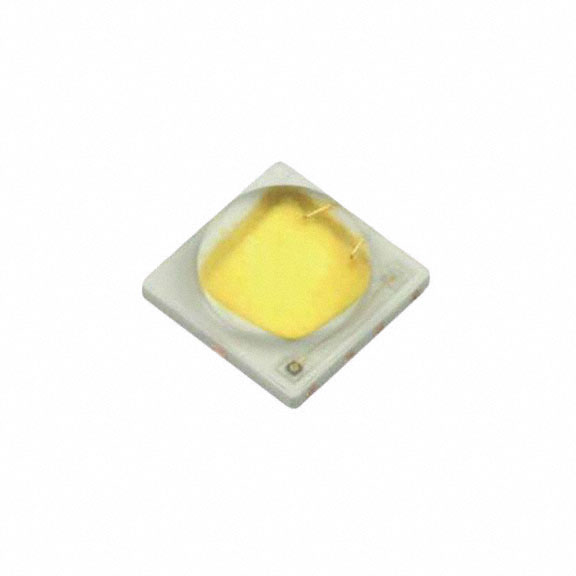

LED LETERAS COOL WHT 5000K 2SMD
| Part | Thermal Resistance of Package | Flux @ 85°C, Current - Test | Flux @ 85°C, Current - Test [Max] | Flux @ 85°C, Current - Test [Min] | Viewing Angle | Color | CRI (Color Rendering Index) | Supplier Device Package | CCT (K) | Current - Max [Max] | Mounting Type | Package / Case | Voltage - Forward (Vf) (Typ) | Height - Seated (Max) [Max] | Height - Seated (Max) | Current - Test | Lumens/Watt @ Current - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | 5 °C/W | 135 lm | 150 lm | 120 lm | 120 ° | Cool White | 80 | 3535 | 5000 K | 1.5 A | Surface Mount | 1414 (3535 Metric) | 2.8 V | 0.085 in | 2.15 mm | 350 mA | 138 lm/W | 0.138 in | 0.138 in | 3.5 mm | 3.5 mm |
