XZTHI56 Series
Manufacturer: SunLED
Beta
⌘K

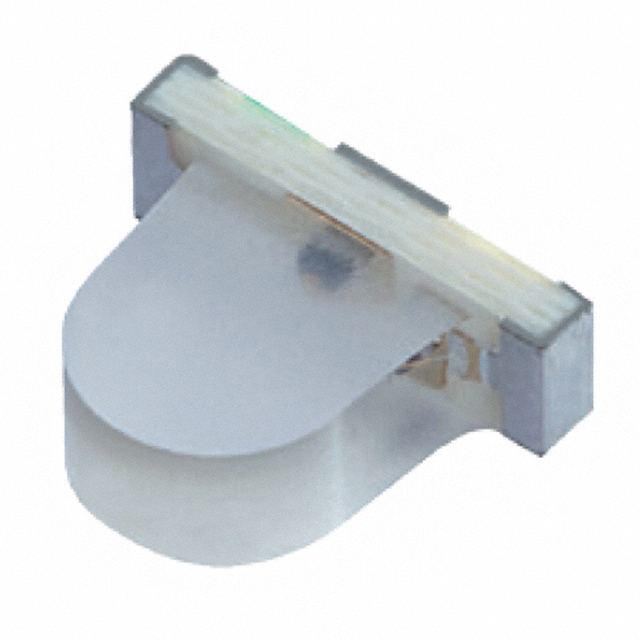

EMITTER IR 880NM 50MA SMD
| Part | Package / Case | Wavelength | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type | Radiant Intensity (Ie) Min @ If [Min] | Viewing Angle | Current - DC Forward (If) (Max) | Voltage - Forward (Vf) (Typ) | Orientation [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 2-SMD No Lead | 880 nm | 85 C | -40 ¯C | Infrared (IR) | Right Angle Surface Mount | 1 mW/sr | 30 ° | 50 mA | 1.3 V | Side View |
