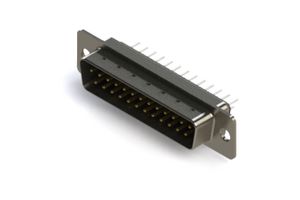

627-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS VERTICAL PLASTIC BODY D-SUB CONNECTOR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Features | Current Rating (Amps) | Number of Positions | Connector Type | Flange Feature | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Connector Style | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Material Flammability Rating | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Press-Fit | D-Sub | Flash | Through Hole | 2 | UL94 V-0 | Gold | |||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Board Lock Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Flash | Through Hole | 2 | UL94 V-0 | Gold | |||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Board Lock Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Flash | Through Hole | 2 | UL94 V-0 | Gold | |||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Board Lock Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Through Hole | 2 | UL94 V-0 | Gold | 0.38 µm | 15 µin | ||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Press-Fit | D-Sub | Through Hole | 2 | UL94 V-0 | Gold | 0.38 µm | 15 µin | Nickel Plated Steel | |
 EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Flash | Through Hole | 2 | UL94 V-0 | Gold | Nickel Plated Steel | ||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | D-Sub | Flash | Free Hanging (In-Line) | 2 | UL94 V-0 | Gold | Nickel Plated Steel | |||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Flash | Through Hole | 2 | UL94 V-0 | Gold | Nickel Plated Steel | ||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Board Lock Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Through Hole | 2 | UL94 V-0 | Gold | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Brass | -55 C | 85 °C | Black | Polyester Thermoplastic | Grounding Indents Shielded | 3 A | 25 | Plug Male Pins | Board Side (4-40) | Signal | B DB | 3 | Solder | D-Sub | Flash | Through Hole | 2 | UL94 V-0 | Gold |
