1511 Series
Manufacturer: Curtis Industries
Beta
⌘K

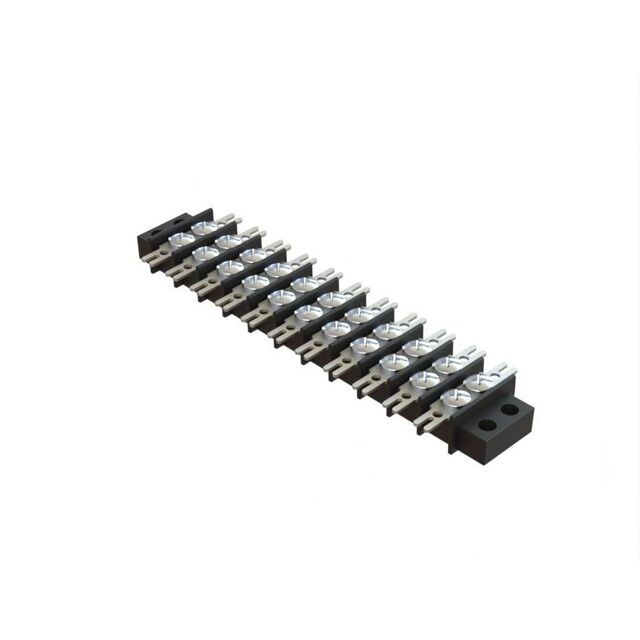

CONN BARRIER STRP 11CIRC 0.375"
| Part | Mounting Type | Material - Insulation | Operating Temperature | Terminal Screw Material | Material Flammability Rating | Number of Rows [custom] | Number of Wire Entries | Current Rating (Amps) | Number of Circuits | Features | Bottom Termination | Barrier Type | Terminal Block Type | Pitch | Pitch | Top Termination | Wire Gauge [Max] | Wire Gauge [Min] | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel | Polyphenylene Oxide (PPO) | 110 °C | Steel | UL94 V-0 | 2 | 22 | 20 A | 11 | Flange | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | Screws with Captive Plate | 22 AWG | 10 AWG | |
 Curtis Industries | Chassis Panel | Polyphenylene Oxide (PPO) | 110 °C | UL94 V-0 | 2 | 22 | 20 A | 11 | Flange | Closed | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | Dual Screws with Solder Lugs | 22 AWG | 10 AWG | Tin | |
 Curtis Industries | Chassis Panel Through Hole | Polyphenylene Oxide (PPO) | 110 °C | Steel | UL94 V-0 | 2 | 22 | 20 A | 11 | Flange | Wire Wrap | 2 Wall (Dual) | Barrier Block | 9.53 mm | 0.375 in | Screws | 22 AWG | 10 AWG |
