LHA Series

Manufacturer: Adam Tech

Catalog

HEADERS & WIRE HOUSINGS CONN HEADER VERT 11POS 2.54MM

Part	Contact Finish - Post	Number of Positions	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Rows	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shrouding	Connector Type	Insulation Color	Contact Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Voltage Rating	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)	Contact Material	Mounting Type	Contact Shape	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]

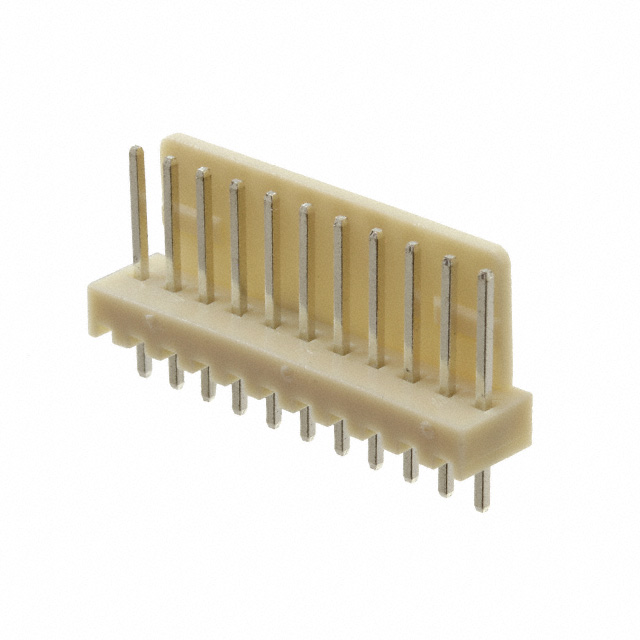

Adam Tech LHA-11-TS	Tin	11	Board to Cable/Wire	0.1 "	2.54 mm	Friction Lock	1	Nylon Polyamide (PA)	85 °C	-25 °C	Solder	Shrouded - 1 Wall	Header	Ivory	Male Pin	All	14.2 mm	0.559 "	0.291 in	7.4 mm	0.134 in	3.4 mm	250 VAC	UL94 V-2	0.134 "	3.4 mm	3 A	Brass	Through Hole	Square

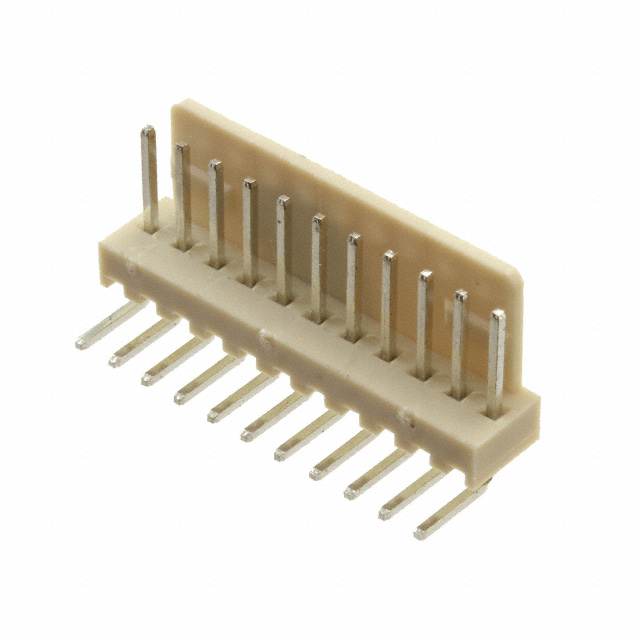

Adam Tech LHA-11-TRA	Tin	11	Board to Cable/Wire	0.1 "	2.54 mm	Friction Lock	1	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C	Solder	Shrouded - 1 Wall	Header	White	Male Pin	All				7 mm			250 VAC	UL94 V-2	0.134 "	3.4 mm	3 A	Brass	Right Angle Through Hole	Square	0.276 in	0.228 "	5.8 mm
Adam Tech LHA-12-TRB	Tin	12	Board to Cable/Wire	0.1 "	2.54 mm	Friction Lock	1	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Solder	Shrouded - 1 Wall	Header	White	Male Pin	All			0.293 in	7.45 mm			250 VAC	UL94 V-2	0.134 "	3.4 mm	3 A	Brass	Right Angle Through Hole	Square		0.228 "	5.8 mm
Adam Tech LHA-05-TS	Tin	5	Board to Cable/Wire	0.1 "	2.54 mm	Friction Lock	1	Nylon Polyamide (PA)	85 °C	-25 °C	Solder	Shrouded - 1 Wall	Header	Ivory	Male Pin	All	14.2 mm	0.559 "	0.291 in	7.4 mm	0.134 in	3.4 mm	250 VAC	UL94 V-2	0.134 "	3.4 mm	3 A	Brass	Through Hole	Square
