53CAA Series
Manufacturer: Bourns Inc.
Beta
⌘K

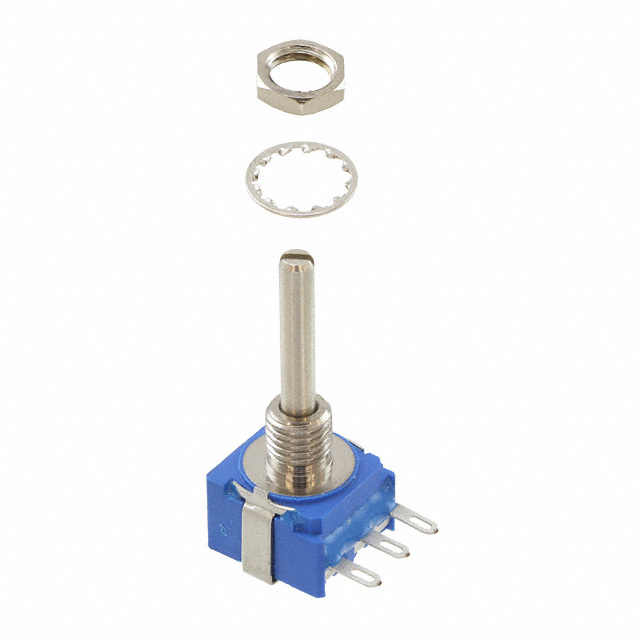

POT 5K OHM 1/4W PLASTIC LOG
| Part | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Temperature Coefficient | Built in Switch | Tolerance | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Features | Resistive Material | Taper | Number of Turns | Rotation | Resistance (Ohms) | Number of Gangs | Mounting Type | Power (Watts) | Power (Watts) | Actuator Type | Bushing Thread | Adjustment Type | Actuator Length [x] | Actuator Length [x] | Termination Style | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 1000 ppm/°C | None | 20 % | 3.18 mm | 0.125 in | Sealed | Conductive Plastic | Logarithmic | 1 | 290 ° | 5 kOhms | 1 | Panel Mount | 0.25 W | 0.25 W | Slotted | 1/4-32 | User Defined | 0.875 in | 22.23 mm | Solder Lug | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 1000 ppm/°C | None | 20 % | 3.18 mm | 0.125 in | Sealed | Conductive Plastic | Logarithmic | 1 | 290 ° | 1 | Panel Mount | 0.25 W | 0.25 W | Slotted | 1/4-32 | User Defined | 0.875 in | 22.23 mm | Solder Lug | 10k | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 1000 ppm/°C | None | 20 % | 3.18 mm | 0.125 in | Sealed | Conductive Plastic | Linear | 1 | 290 ° | 5 kOhms | 1 | Panel Mount | 0.5 W | 0.5 W | Slotted | 1/4-32 | User Defined | 0.875 in | 22.23 mm | Solder Lug | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | 150 ppm/°C | None | 10 % | 3.18 mm | 0.125 in | Sealed | Cermet | Linear | 1 | 290 ° | 5 kOhms | 1 | Panel Mount | 1 W | Slotted | 1/4-32 | User Defined | 0.875 in | 22.23 mm | Solder Lug |
