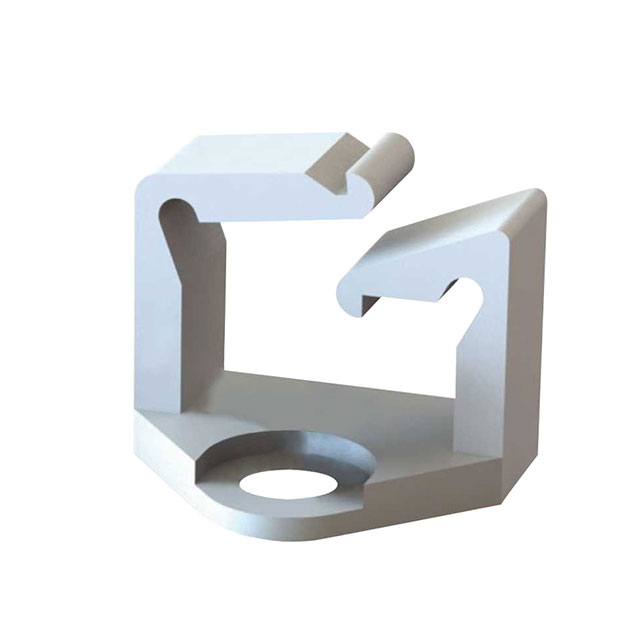

LWS-SR Series

Catalog

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.5 MM, 5.6 MM

Part	Screw Size	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Mounting Type	Type	Height	Height	Width	Width	Material Flammability Rating	Panel Hole Size [Min]	Panel Hole Size [Max]	Length [x]	Length [x]	Material	Color	Type Attributes	Opening Size [z]	Opening Size [z]	Height [z]
Essentra Components LWS-SR-2-01	#6 SR-35XX Series Rivet	5.56 mm	0.219 "	0.25 mm	0.01 "	0.34 in	0.438 in	11.13 mm	8.64 mm	Fastener	Clip Wire Saddle	16.51 mm	0.65 in	0.219 "	5.56 mm	UL94 V-2	0.142 in 3.61 mm	0.146 in 3.71 mm	15.5 mm	0.61 "	Polyamide (PA66) Nylon 6/6	Natural	Locking
Essentra Components LWS-SR-3-01	#6 SR-35XX Series Rivet	5.56 mm	0.219 "	0.25 mm	0.01 "		0.438 in	11.13 mm		Fastener	Clip Wire Saddle	26.16 mm		0.219 "	5.56 mm	UL94 V-2	0.142 in 3.61 mm	0.146 in 3.71 mm	15.5 mm	0.61 "	Polyamide (PA66) Nylon 6/6	Natural	Locking	0.72 in	18.29 mm	1.03 in
Essentra Components LWS-SR-4-01	#6 SR-35XX Series Rivet	5.56 mm	0.219 "	0.25 mm	0.01 "			0.438 in	1 "	Fastener	Clip Wire Saddle	33.27 mm		0.219 "	5.56 mm	UL94 V-2	0.142 in 3.61 mm	0.146 in 3.71 mm	15.5 mm	0.61 "	Polyamide (PA66) Nylon 6/6	Natural	Locking			1.31 "
