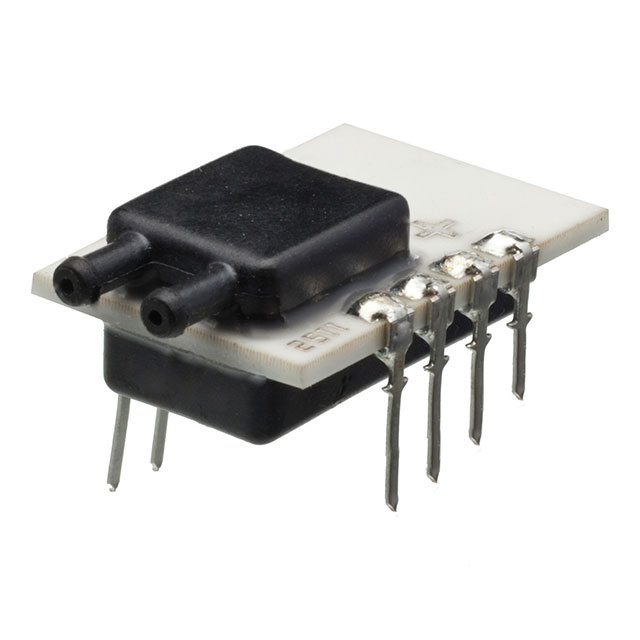

P1J-10 Series

Catalog

SENSOR 0.35PSID 0.08" 14BIT

Part	Pressure Type	Port Style	Termination Style	Output Type	Package / Case	Package / Case	Package / Case	Features	Port Size	Port Size [x]	Port Size [x]	Accuracy	Maximum Pressure	Maximum Pressure	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Applications	Output
Sensata Technologies P1J-10-AX16PA	Differential	Barbed	PC Pin	Digital - I2C	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Amplified Output Temperature Compensated	Dual Male Tube	1.92 mm	0.08 "	0.25 %	7 kPa	1.02 PSI	Through Hole	2.7 V	5.5 V	85 °C	-20 C	2.4 kPa	0.35 PSI	Board Mount	14 b
Sensata Technologies P1J-10-8X16PA	Differential	Barbed	PC Pin	SPI	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	Amplified Output Temperature Compensated	Dual Male Tube	1.92 mm	0.08 "	0.25 %	7 kPa	1.02 PSI	Through Hole	2.7 V	5.5 V	85 °C	-20 C	2.4 kPa	0.35 PSI	Board Mount	14 b
