KAE10 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Length | Length | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Actuator Level | Circuit | Number of Positions | Pitch | Pitch | Actuator Type | Voltage Rating | Washable | Contact Material | Height Above Board [z] | Height Above Board [z] | Contact Finish | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

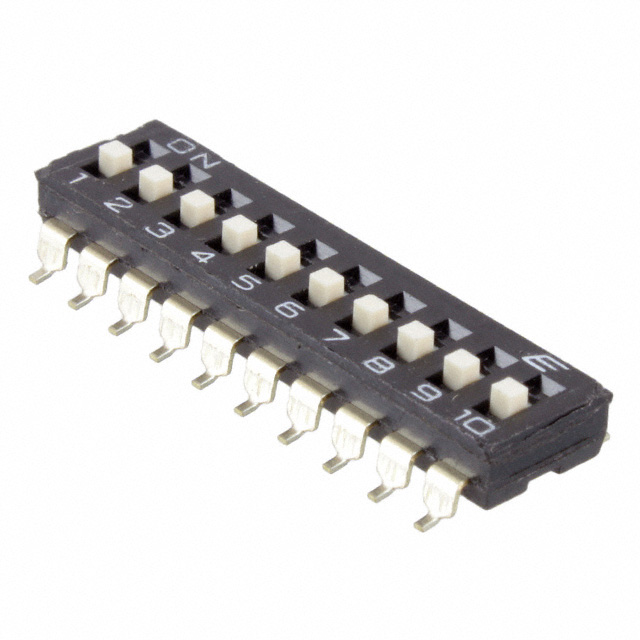

 E-Switch | 2000 Steps | 26.44 mm | 1.041 " | 2000 Cycles | 85 °C | -20 ░C | Gull Wing | 25 mA | Raised | SPST | 10 | 2.54 mm | 0.1 " | Slide (Standard) | 24 VDC | Copper | 4.45 mm | 0.175 in | Gold | Surface Mount | ||

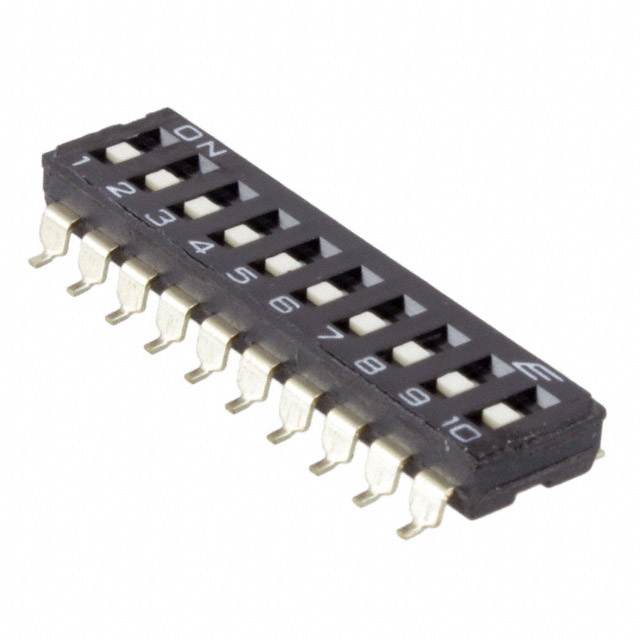

 E-Switch | 2000 Steps | 26.44 mm | 1.041 " | 2000 Cycles | 85 °C | -20 ░C | Gull Wing | 25 mA | Flush Recessed | SPST | 10 | 2.54 mm | 0.1 " | Slide (Standard) | 24 VDC | Copper | 3.75 mm | 0.148 in | Gold | Surface Mount | Tape Seal |
