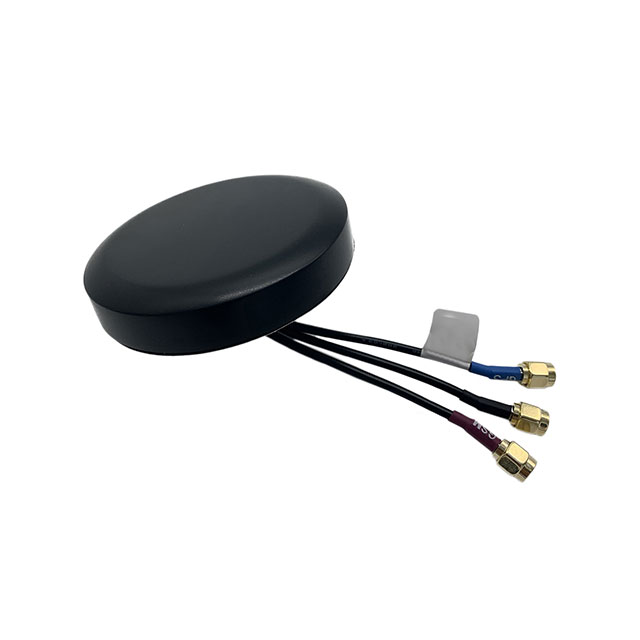

RDM-MBF6 Series
Manufacturer: Raltron Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF ANT GPS-GSM-WIF DOME-IP66 SMA
| Part | RF Family/Standard | Gain | Gain | Applications | Height (Max) | Number of Bands | Antenna Type | Frequency Group | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Minimum | Frequency Range (Band 2) Maximum | Frequency | Frequency Range (Band 1) Maximum | Ingress Protection | Mounting Type | Frequency (Center/Band) | Termination Type | Termination Count (SMA Male) | VSWR Maximum | VSWR | VSWR Minimum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Raltron Electronics | Cellular Navigation WiFi | 2dBi 3dBi | 2 dBi 3 dBi | Cellular GPS GSM LNA Wi-Fi | 0.575 in | 3 | Dome | Wide Band | 824 MHz | 1.71 GHz | 2.17 GHz | 1.575 GHz | 960 MHz | IP65 IP66 | Screw | 1.58GHz 1.94GHz 2.4GHz | SMA Male | 3 | 2 | 1.5 2 | 1.5 |
