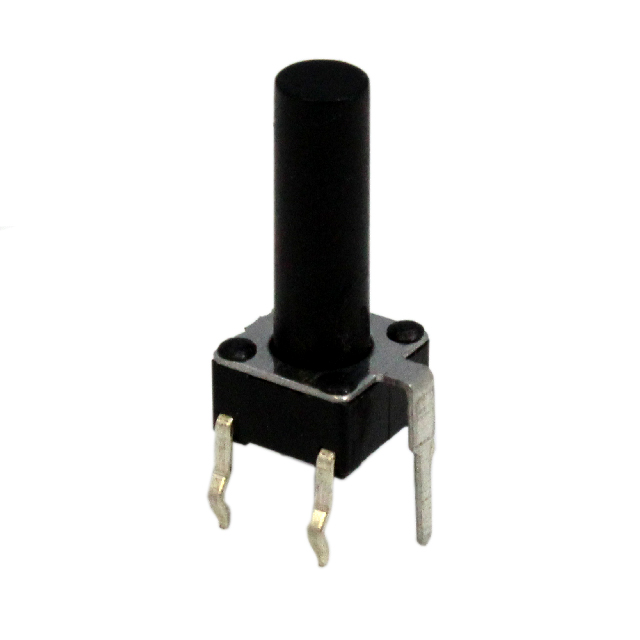

CT1102P14 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Illumination | Termination Style | Outline [x] | Outline [y] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical [z] | Circuit | Actuator Orientation | Operating Force | Actuator Type | Contact Rating @ Voltage | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Non-Illuminated | PC Pin | 6 mm | 6 mm | 85 °C | -40 C | 14.5 mm | SPST-NO | Top Actuated | 160 gf | Plunger for Cap | 0.05 A 50 VDC | Through Hole | Off-Mom |
CIT Relay and Switch | 0.25 mm | Nylon 6/6 Polyamide (PA66) | Non-Illuminated | PC Pin | 6 mm | 6 mm | 85 °C | -40 C | 14.5 mm | SPST-NO | Top Actuated | 260 gf | Plunger for Cap | 0.05 A 50 VDC | Through Hole | Off-Mom |
