T41405 Series

Catalog

M12,REAR MOUNTING,MALE,D CODE,4P

Part	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insert Material	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Current Rating (Amps)	Color	Ingress Protection	Termination	Shell Material	Material Flammability Rating	Contact Finish - Mating	Fastening Type	Orientation	Connector Type	Shell Finish	Mounting Feature	Shielding	Mounting Type	Primary Material	Voltage Rating

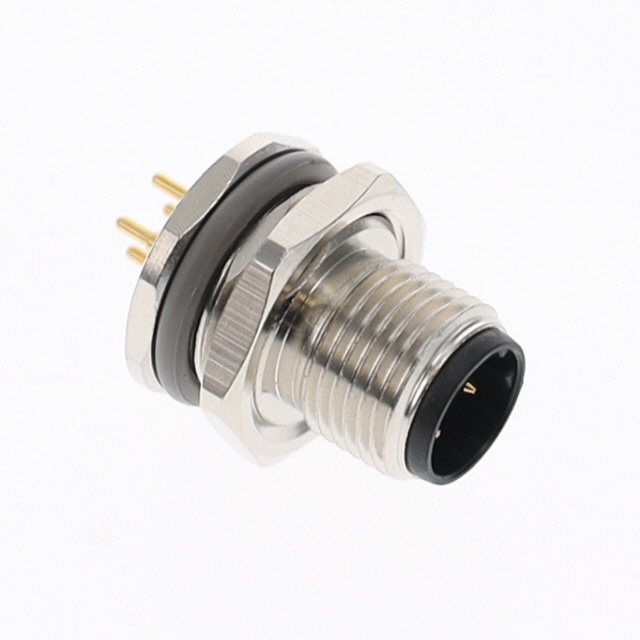

TE Connectivity AMP Connectors T4140512041-000	Copper Alloy	0.076 µm	3 µin	Industrial	Nylon 6/6 Polyamide (PA66)	M12-4	85 °C	-40 C	4	4 A	Silver	IP67 - Dust Tight Waterproof	Solder	Copper Alloy	UL94 V-0	Gold	Threaded	D	Receptacle Male Pins	Nickel	Bulkhead - Front Side Nut	Unshielded	Panel Mount Through Hole	Metal	250 V

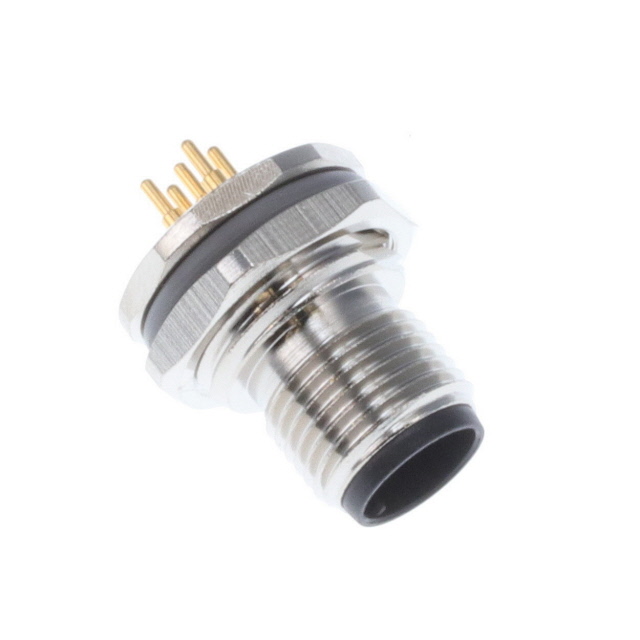

TE Connectivity AMP Connectors T4140512051-000	Copper Alloy	0.076 µm	3 µin	Industrial	Nylon 6/6 Polyamide (PA66)	M12-5	85 °C	-40 C	5	4 A	Silver	IP67 - Dust Tight Waterproof	Solder	Copper Alloy	UL94 V-0	Gold	Threaded	D	Receptacle Male Pins	Nickel	Bulkhead - Front Side Nut	Unshielded	Panel Mount Through Hole	Metal	60 VDC
TE Connectivity AMP Connectors T4140512021-000	Copper Alloy	0.076 µm	3 µin	Industrial	Nylon 6/6 Polyamide (PA66)	M12-2	85 °C	-40 C	2	4 A	Silver	IP67 - Dust Tight Waterproof	Solder	Copper Alloy	UL94 V-0	Gold	Threaded	D	Receptacle Male Pins	Nickel	Bulkhead - Front Side Nut	Unshielded	Panel Mount Through Hole	Metal	250 V
