391-055 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 55POS 0.100

Part	Material - Insulation	Termination Rows	Card Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Number of Positions	Flange Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Mounting Type	Gender	Number of Rows	Contact Material	Color	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-055-520-108	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm
EDAC Inc. 391-055-522-102	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	Flush Mount Top Opening Unthreaded	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm	3.25 mm	0.128 "

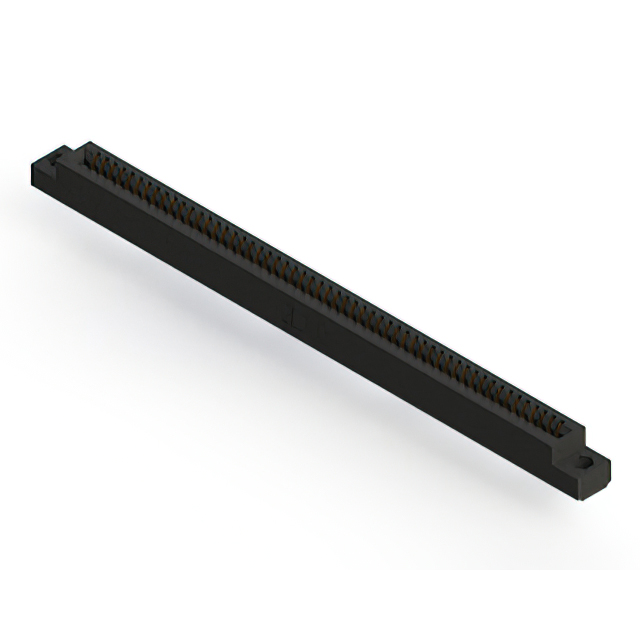

EDAC Inc. 391-055-520-104	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	Flush Mount Top Opening Unthreaded	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm	3.96 mm	0.156 "
EDAC Inc. 391-055-521-101	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55		Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm
EDAC Inc. 391-055-522-108	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm
EDAC Inc. 391-055-520-107	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	Flush Mount M3 Threaded Insert Top Opening	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm
EDAC Inc. 391-055-522-104	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	Flush Mount Top Opening Unthreaded	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm	3.96 mm	0.156 "
EDAC Inc. 391-055-521-108	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm
EDAC Inc. 391-055-522-107	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	Flush Mount M3 Threaded Insert Top Opening	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm
EDAC Inc. 391-055-522-103	Polyester Thermoplastic	1	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	55	Floating Bobbin Flush Mount	Gold	-40 C	105 ░C	Solder	Semi Bellows	0.25 Ám	10 Áin	55	Through Hole	Female	1	Copper Alloy	Black	0.1 "	2.54 mm	2.95 mm	0.116 "
