MS3126P10 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

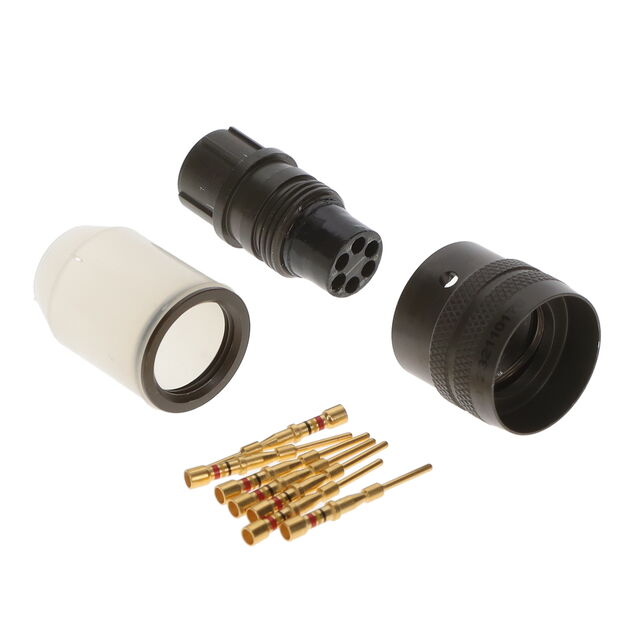

MIL-26482 MS/PT/CMB PLUG
| Part | Contact Finish - Mating | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Grade | Color | Qualification | Termination | Applications | Orientation | Primary Material | Insert Material | Features | Shell Size - Insert Length | Shell Size - Insert Width | Shell Material | Shielding | Fastening Type | Shell Finish | Contact Material | Connector Type | Number of Positions | Voltage Rating | Mounting Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Gold | 7.5 A | 125 °C | -55 °C | Military | Olive Drab | MIL-DTL-26482 Series I | Crimp | Aerospace Industrial Instrumentation Mass Transit Military | N (Normal) | Metal | Neoprene | Coupling Nut Potted | 10 mm | 6 mm | Aluminum | Unshielded | Bayonet Lock | Cadmium Olive Drab Chromate | Copper Alloy | Male Pins Plug | 6 | 600 V | Free Hanging (In-Line) | Environment Resistant |
Amphenol Aerospace Operations | |||||||||||||||||||||||||
Amphenol Aerospace Operations |
