M-XL Series

Catalog

CONN RCPT MALE MINI XLR 6P SLDR

Part	Color	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert	Termination	Contact Finish - Mating	Shell Finish	Mounting Feature	Orientation	Primary Material	Mounting Type	Shell Material	Current Rating (Amps)	Fastening Type	Features

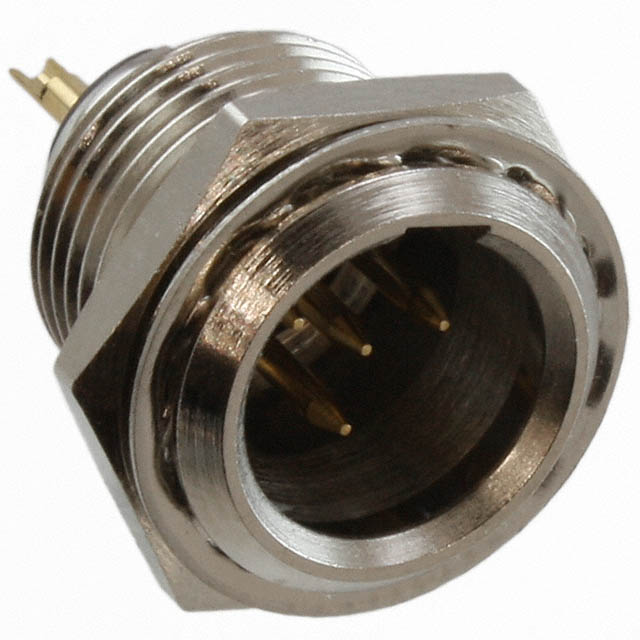

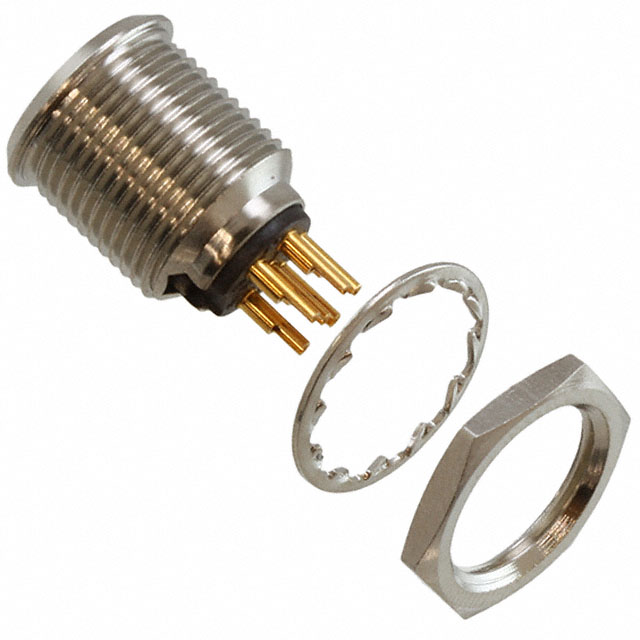

ITT Cannon, LLC M-XL-6-14	Silver	125 VDC	Receptacle Male Pins	85 °C	-35 °C	6	Mini XLR	Solder	Gold	Nickel	Bulkhead - Rear Side Nut	Keyed	Metal	Panel Mount	Copper	3 A	Latch Lock

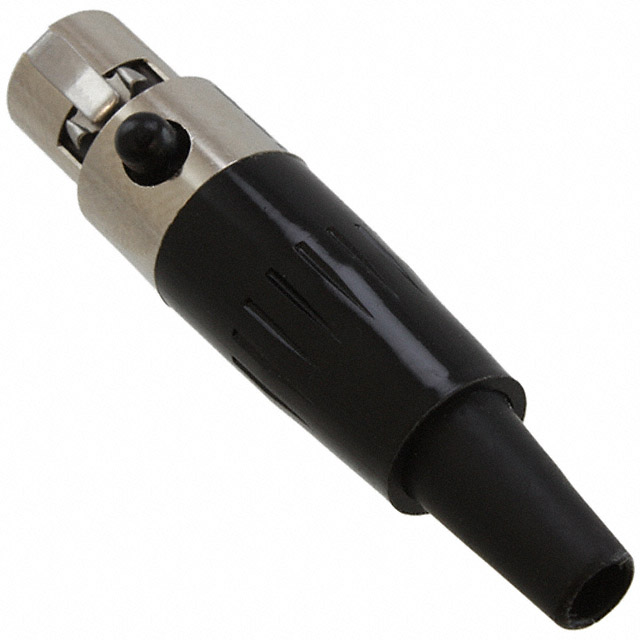

ITT Cannon, LLC M-XL-4-11S	Silver	125 VDC	Plug Female Sockets	85 °C	-35 °C	4	Mini XLR	Solder	Gold	Nickel		Keyed	Metal	Free Hanging (In-Line)	Copper	3 A	Latch Lock	Strain Relief

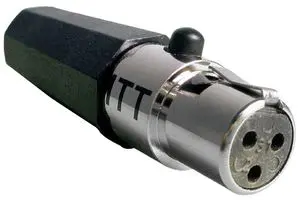

ITT Cannon, LLC M-XL-3-11S	Silver	125 VDC	Plug Female Sockets	85 °C	-35 °C		Mini XLR	Solder	Gold	Nickel		Keyed	Metal	Free Hanging (In-Line)	Copper	3 A	Latch Lock	Strain Relief

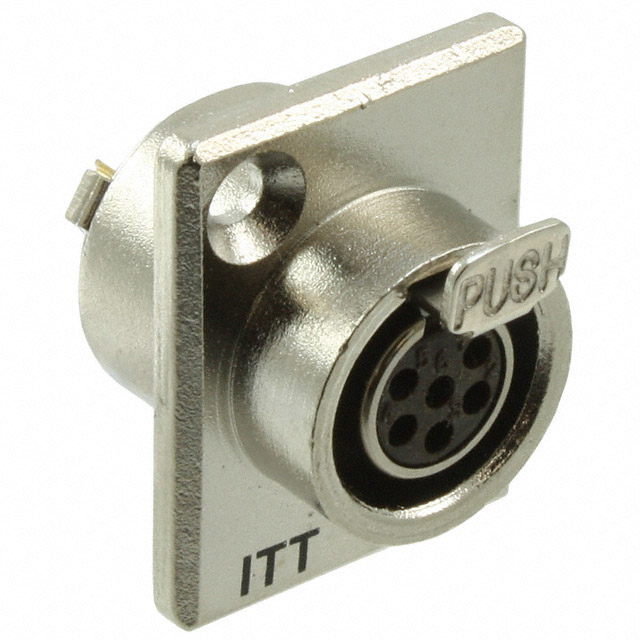

ITT Cannon, LLC M-XL-6-31	Silver	125 VDC	Receptacle Female Sockets	85 °C	-35 °C	6	Mini XLR	Solder	Gold	Nickel	Flange	Keyed	Metal	Panel Mount	Copper	3 A	Latch Lock

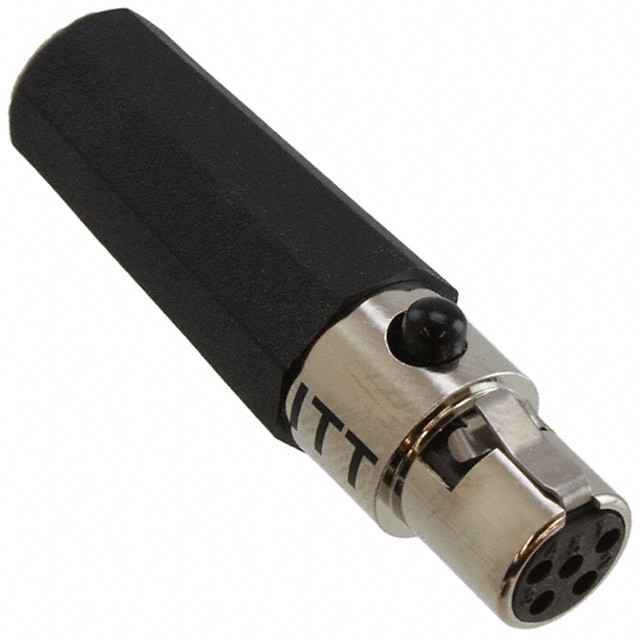

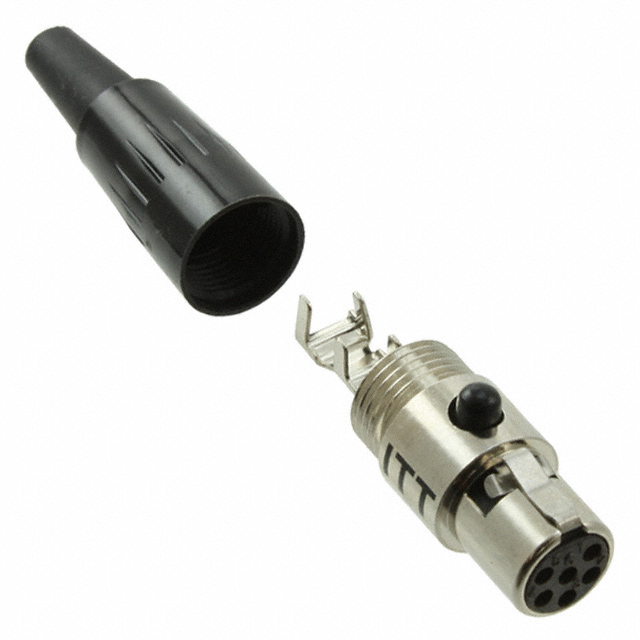

ITT Cannon, LLC M-XL-6-11S	Silver	125 VDC	Plug Female Sockets	85 °C	-35 °C	6	Mini XLR	Solder	Gold	Nickel		Keyed	Metal	Free Hanging (In-Line)	Copper	3 A	Latch Lock	Strain Relief
ITT Cannon, LLC M-XL-6-11M	Silver	125 VDC	Plug Female Sockets	85 °C	-35 °C	6	Mini XLR	Solder	Gold	Nickel		Keyed	Metal	Free Hanging (In-Line)	Copper	3 A	Latch Lock

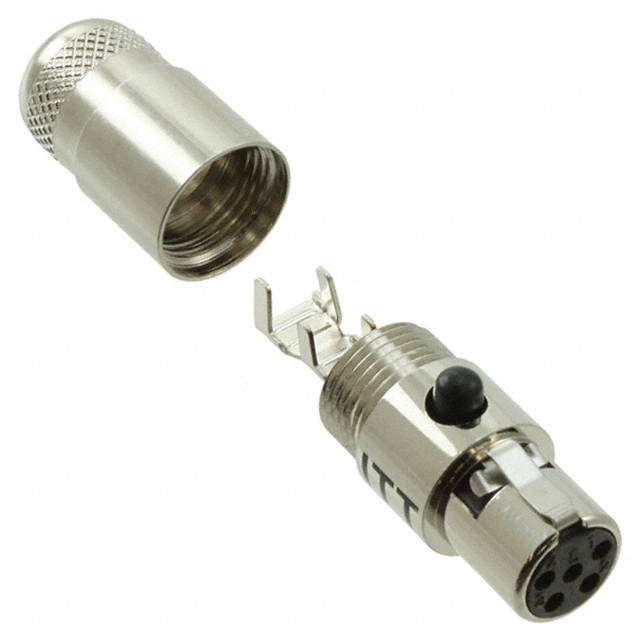

ITT Cannon, LLC M-XL-5-11L	Silver	125 VDC	Plug Female Sockets	85 °C	-35 °C	5	Mini XLR	Solder	Gold	Nickel		Keyed	Metal	Free Hanging (In-Line)	Copper	3 A	Latch Lock
ITT Cannon, LLC M-XL-5-11M	Silver	125 VDC	Plug Female Sockets	85 °C	-35 °C	5	Mini XLR	Solder	Gold	Nickel		Keyed	Metal	Free Hanging (In-Line)	Copper	3 A	Latch Lock

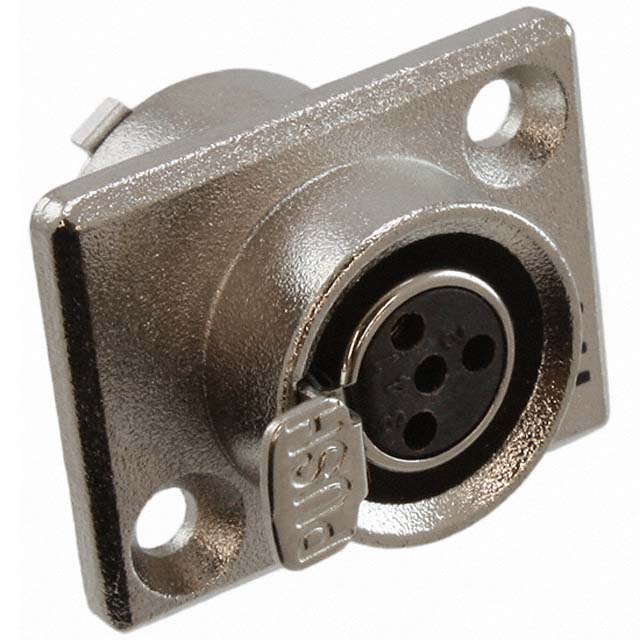

ITT Cannon, LLC M-XL-4-31	Silver	125 VDC	Receptacle Female Sockets	85 °C	-35 °C	4	Mini XLR	Solder	Gold	Nickel	Flange	Keyed	Metal	Panel Mount	Copper	3 A	Latch Lock

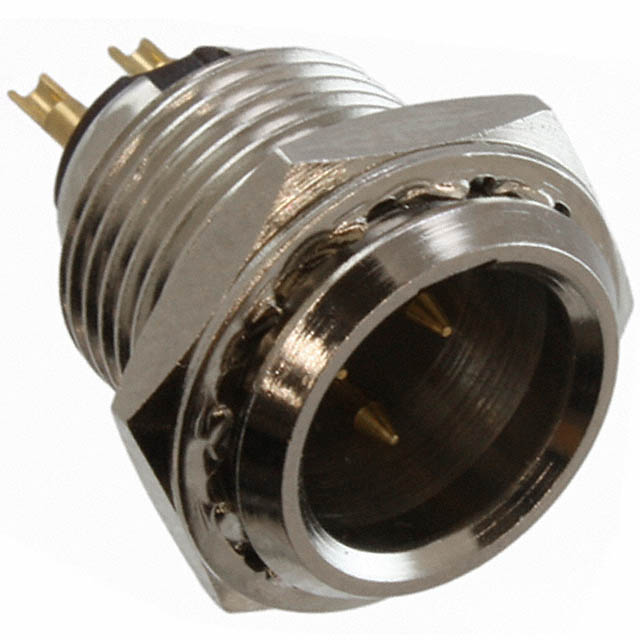

ITT Cannon, LLC M-XL-3-14	Silver	125 VDC	Receptacle Male Pins	85 °C	-35 °C		Mini XLR	Solder	Gold	Nickel	Bulkhead - Rear Side Nut	Keyed	Metal	Panel Mount	Copper	3 A	Latch Lock
